Quick Details
-
Voltage:
-
380v
-
Power:
-
45.71kw
-
Dimension(L*W*H):
-
120m*3.5m
-
Weight (KG):
-
260000
-
Application:
-
teflon and ceramic coating on pan
-
production line capacity:
-
800-1200pcs/h
-
heating power:
-
gas
-
workpiece material:
-
metal
-
max workpiece weight:
-
5000g
-
max workpiece:
-
Dia360mm
-
conveyor:
-
mesh belt
-
baking time:
-
5--8minutes
-
circulating air volume:
-
≥8000㎡/h
-
heating up time:
-
≤35 minutes
Quick Details
-
Machine Type:
-
non stick pan production line, Spray Booths, Painting Equipment, Pre-treatment Equipment, Conveying Equipment, Drying Oven, Curing oven, Coating Equipment
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dwell
-
Voltage:
-
380v
-
Power:
-
45.71kw
-
Dimension(L*W*H):
-
120m*3.5m
-
Weight (KG):
-
260000
-
Application:
-
teflon and ceramic coating on pan
-
production line capacity:
-
800-1200pcs/h
-
heating power:
-
gas
-
workpiece material:
-
metal
-
max workpiece weight:
-
5000g
-
max workpiece:
-
Dia360mm
-
conveyor:
-
mesh belt
-
baking time:
-
5--8minutes
-
circulating air volume:
-
≥8000㎡/h
-
heating up time:
-
≤35 minutes
Product Overview

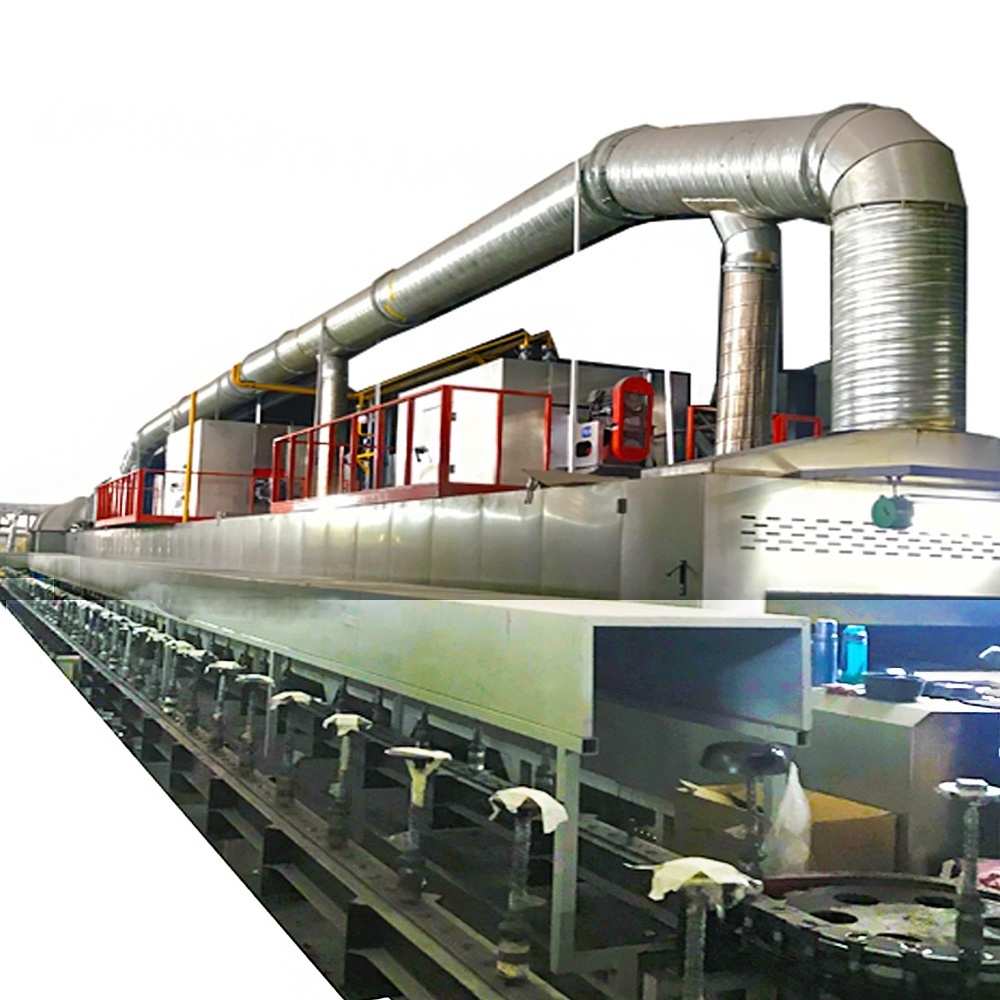

Continuous Liquid Coating Sintering Furnace for Teflon and Ceramic Coated Pans
It's a natural gas heated heating furnace that used for sintering/baking liquid teflon and ceramic coating to make nonstick cookwares such as frying pans, soup pots, bakewares and so on. It works after the coating spray booth and widely applied in cookware manufacturing plant,
can also be designed as electric.
Whole continuous sintering furnace includes zones as follows:
1. loading zone--2.preheating zone--3.sintering zone--4.buffer zone--5. cooling zone--6.unloading zone
PTFE teflon and ceramic coating sintering furnace for fry pan manufacturing
This pan coating baking furnace enjoys superior thermal isolation performance and runs very stably. Products are conveyed by stainless steel mesh belt which is driven by motor from Japan, furnace is heated by natural gas burner from Italy, cooled by strong convection blower from Germany, has smoke collect and exhaust system on the top of furnace to keep environment clean.
|
Items
|
parameters
|
|
furnace length
|
32 meters
|
|
conveyor
|
stainless steel 304 mesh belt
|
|
belt running speed
|
0--1.5 meters/min
|
|
gas burner
|
10G and 44G
|
|
drive motor
|
1.5kw
|
|
temperature control
|
touch screen
|
|
cooling zone
|
6M
|
|
power supply
|
380v 50Hz
|
|
2 convection blowers
|
10.5kw
|
|
2 cooling blowers
|
4.5kw
|
|
total electricity power
|
19.3kw
|
Successful projects
Non stick pan production plant
Rice cooker powder coating line
Soup pot coating line
Bakeware coating machines
Rectangle grill pan coating line
Ceramic coating pan production plant
