Quick Details
-
Lighting mode:
-
D/8; SCI/SCE measurement; Excluding UV measurement;
-
Integrating sphere size:
-
40mm
-
Lighting source:
-
Combined full spectrum LED light source
-
Splitting mode:
-
Plane grating splitting
-
Sensor:
-
Silicon photodiode array (double row 40 groups)
-
Measurement wavelength range:
-
400 ~ 700nm
-
Wavelength interval:
-
10nm
-
Reflectance measurement range:
-
0 ~ 200%
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KINSGEO
-
Model Number:
-
KJ-VMS
-
Lighting mode:
-
D/8; SCI/SCE measurement; Excluding UV measurement;
-
Integrating sphere size:
-
40mm
-
Lighting source:
-
Combined full spectrum LED light source
-
Splitting mode:
-
Plane grating splitting
-
Sensor:
-
Silicon photodiode array (double row 40 groups)
-
Measurement wavelength range:
-
400 ~ 700nm
-
Wavelength interval:
-
10nm
-
Reflectance measurement range:
-
0 ~ 200%
KJ-623S spectrophotometer
Product Description

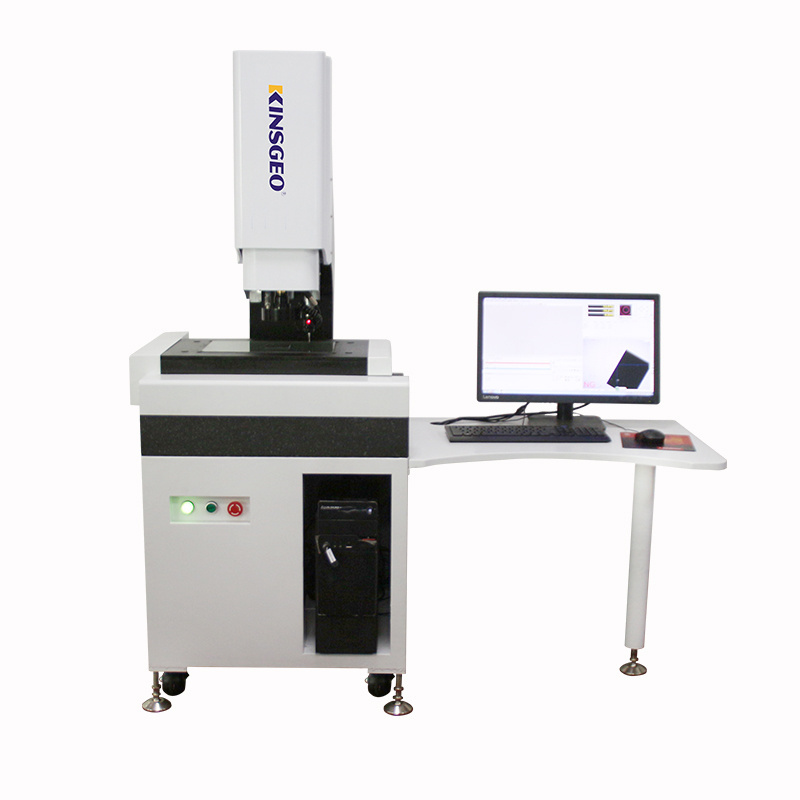

VMF is geared to the needs of domestic mid-range measuring application research and development of semi-automatic image measuring instrument, the flexibility of the manual changing times, autofocus, program-controlled lighting source, the optimization of software and hardware configuration, perfect implementation of two dimensional size measurement requirements, are widely used in the mould, precision hardware, mobile phone, touch screen panel, glass and other industries.
Specification:
Test range :
VMF3020:300*200*200mm Weight:200kg
VMF4030:400*300*200mm Weight:300kg
VMF5040:500*400*200mm Weight:450kg
VMF6050:600*500*200mm Weight:550kg
Glass table bearing: 15kg
X/Y axis accuracy (um) : ≤3+L/200 (L is measured length unit mm)
Z-axis accuracy (um) : ≤3+L/100 (L is measured length unit mm)
Focal length of objective lens: 82mm
Minimum display value: 0.1um
Objective magnification: 0.7-4.5x
Display comprehensive magnification (23 inches) : about 37-237x (2X objective lens or 0.5x eyepiece can be added)
Control system: CNC closed loop control system
Light source system: surface light source and transmission light source are LED, the brightness is adjustable
Operating system: WIN7/WIN10
Host material: grade 00 natural marble (all-in-one machine)
Computer: dedicated computer
Software: INSPEC 2D
Grating scale: metal grating scale 1.0um
Guide rail: high precision cross guide rail
CCD camera: 80W pixel analog camera
Surface light: eight area program control
Technical Specifications
|
Lighting mode |
D/8 (diffuse lighting, receiving in 8 direction); SCI/SCE measurement;
|
|
Characteristics |
Customized measurement caliber, wider adaptability; used for precise color measurement and quality control in plastic electronics, paint and ink, textile and clothing printing and dyeing, printing, ceramics and other industries. |
|
Integrating sphere size |
Φ40mm |
|
Lighting source |
Combined full spectrum LED light source |
|
Splitting mode |
Plane grating splitting |
|
Sensor |
Silicon photodiode array (double row 40 groups) |
|
Measurement wavelength range |
400 ~ 700nm |
|
Wavelength interval |
10nm |
|
Half bandwidth |
10nm |
|
Reflectance measurement range |
0 ~ 200% |
|
Measuring caliber |
Customized single caliber: MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm |
|
Light-containing mode |
Simultaneous test of SCI/SCE |
|
Color space |
CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,Munsell(C/2) |
|
Color difference formula |
ΔE* AB ,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00 |
|
Other chromaticity indexes |
WI(ASTM E313,CIE/ISO,AATCC,Hunter) |
|
Observer angle |
YI(ASTM D1925,ASTM 313) |
|
Observation light source |
Color fastness, color change fastness, strength, covering degree |
|
Display |
8 degree gloss |
|
Measurement time |
2 °/10 ° |
|
Repeatability |
D65,A,C,D50,F2(CWF),F7(DLF),F10(TPL5),F11(TL84),F12(TL83/U30) |
|
Inter-station difference |
Spectrogram/data, sample chromaticity value, color difference value/graph, qualified/unqualified result, color simulation, color bias |
|
Measurement method |
About 1. 5S (test SCI/SCE for about 3.2s at the same time) |
|
Positioning mode |
Spectroscopic reflectance: MAV/SCI, standard deviation within 0.1% (400 ~ 700nm:0.2%): |
|
Dimensions |
Chromaticity value: within MAV/SCI,ΔE * AB 0.04 (after preheating correction, measure the average value of the whiteboard 30 times at intervals of 5s) |
|
Weight |
MAV/SCI,ΔE * AB within 0.2 (average measured by BCRA series II 12 swatches) |
|
Battery charge |
Single measurement, average measurement (2~99 times) |
|
Lighting source life |
Display camera viewing positioning, stable film positioning |
|
Display |
Length x width x height = 129X76X217mm |
