Quick Details
-
Model Number:
-
LS-101
-
Protection Level:
-
IP64
-
Operating Temperature:
-
-5℃-+65℃
-
Max. Current:
-
10A
-
Type:
-
LS series
-
Circuit:
-
Double circuit type
-
Material:
-
plastic
-
contact form:
-
NO,NC
-
Humidity:
-
below 95% RH
-
Protection level:
-
IP66
-
Inrush current:
-
N.C.:below 24A, N.O.:below 12A
-
Certification:
-
ccc, ce
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
China
-
Brand Name:
-
XINGBO
-
Model Number:
-
LS-101
-
Protection Level:
-
IP64
-
Operating Temperature:
-
-5℃-+65℃
-
Max. Current:
-
10A
-
Type:
-
LS series
-
Circuit:
-
Double circuit type
-
Material:
-
plastic
-
contact form:
-
NO,NC
-
Humidity:
-
below 95% RH
-
Protection level:
-
IP66
-
Inrush current:
-
N.C.:below 24A, N.O.:below 12A
-
Certification:
-
ccc, ce

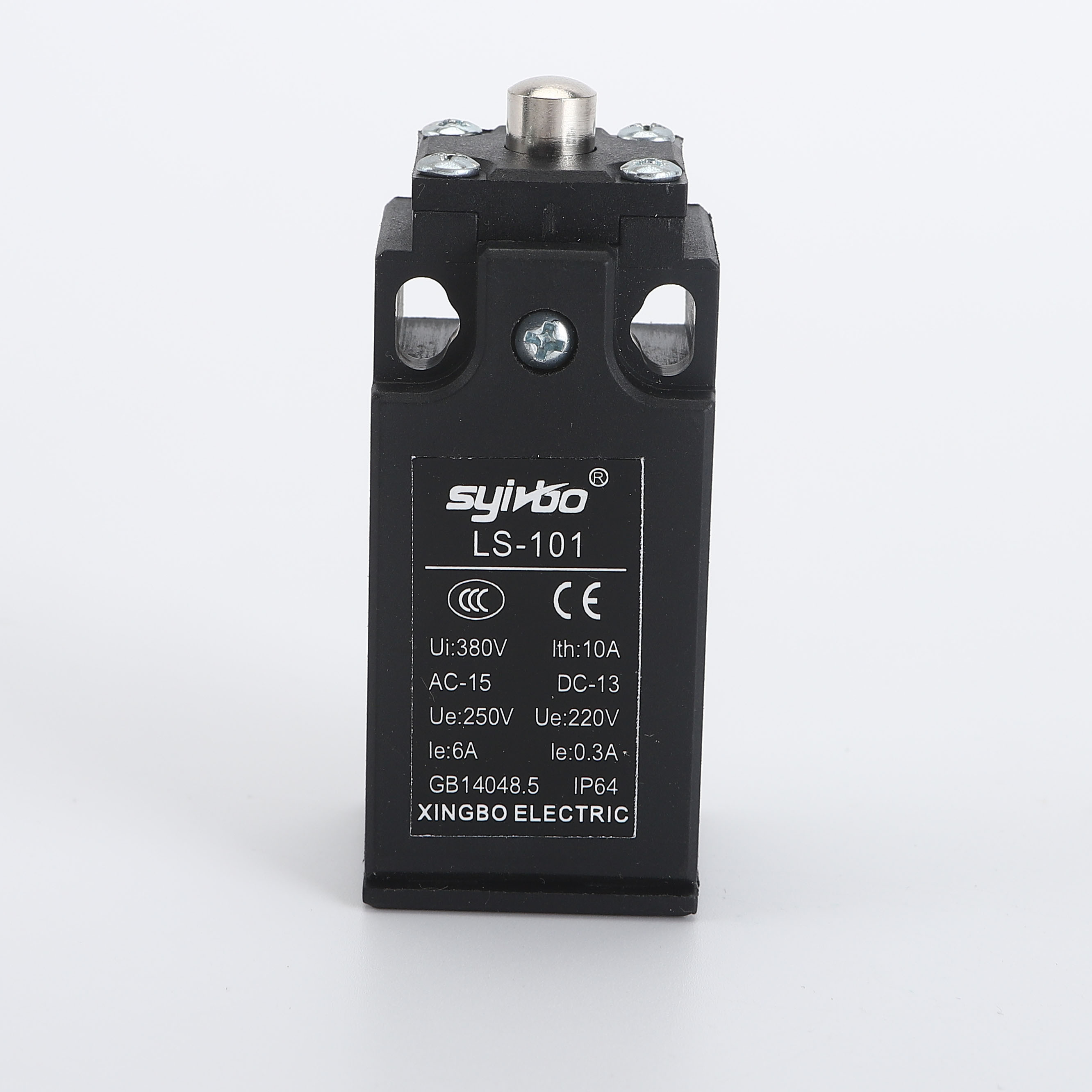

Features:
Economic plastic type
Stainless steel idler wheel, punch and spring
Swing arm max. 95dergees
Selective PG13.5 cable gland
Specifications
|
Model |
LS |
131 331 |
161 361 |
171 371 |
181 381 |
191 391 |
|
Operationg force |
OF(Max.) |
500g-cm |
100g |
100g |
100g |
500g-cm |
|
Release force |
RF(Min.) |
100g-cm |
40g |
40g |
40g |
100g-cm |
|
Pre-travel |
PT(Max.) |
20° |
30mm |
30mm |
30mm |
20° |
|
Tripping position |
TP±10% |
22.5° |
22.5 ° |
22.5° |
22.5° |
22.5° |
|
Movement differential |
MD(Max.) |
10° |
14° |
14degree |
14degree |
10° |
|
Over travel |
OT(Min.) |
75° |
20mm |
20mm |
20mm |
75° |
|
Total travel |
TT(Min.) |
95° |
50mm |
50mm |
50mm |
95° |
|
Rotary indexing |
|
22.5° |
|
|
|
22.5° |
|
Model |
LS |
101 301 |
103 303 |
111 311 |
121 321 |
127 327 |
|
Operationg force |
OF(Max.) |
700g |
700g |
700g |
500g |
700g |
|
Release force |
RF(Min.) |
200g |
200g |
200g |
100g-cm |
200g |
|
Pre-travel |
PT(Max.) |
1.8mm |
1.8mm |
1.8mm |
20° |
1.8mm |
|
Tripping position |
TP±10% |
2.0mm |
2.0mm |
2.0mm |
22.5° |
2.0mm |
|
Movement differential |
MD(Max.) |
1.2mm |
1.2mm |
1.2mm |
10° |
1.2mm |
|
Over travel |
OT(Min.) |
4.0mm |
4.0mm |
4.0mm |
75° |
4.0mm |
|
Total travel |
TT(Min.) |
5.8mm |
5.8mm |
5.8mm |
95° |
5.8mm |
|
Rotary indexing |
|
|
|
|
22.5° |
|
Characteristics
|
Double break |
INO+INC Force Break snap action |
|
Rated voltage/current |
10(4)A, 125, 250VAC/6(2), 380VAC For inductance Load, CosΦ=0.4 |
|
Contact resistance |
25mΩ max. (initial value) |
|
Insulation resistance |
100mΩ min.(at 500VDC) |
|
Dielectric strength |
1000VAC, 50/60Hz for 1 minute between terminals of the same polarity |
|
1500VAC, 50/60Hz for 1 minute between current-carrying and non-current-carrying metal parts |
|
|
1500VAC, 50/60Hz for 1 minute between each terminal and ground |
|
|
Electrical endurance |
500,000 at 10A 250VAC Resistive |
|
Mechanical life |
10,000,000 operations min.(under rated conditions) |
|
Operation speed |
5mm/s to 0.5m/s |
|
Waterproof and dust-proof |
IP64 |
|
Rising temperature |
Max 30 ℃ over ambient temperature at rated voltage/current |
|
Standard |
EN50041, EN50047, IEC337-1,VDE0660 |
|
Operation temperature |
-5 ℃ - 65℃ (with no icing) |
|
Storage temperature |
-5 ℃ – 65℃ (with no icing) |
|
Humidity |
95% RH Max. |
|
Shock |
Mechanical durable: 1000m/ S2min. |
|
Malfunction:300m/ S2 min. |
|
|
Vibration frequency |
Malfunction: 10 to 55Hz 1.5mm double amplitude |
|
Torque of terminal screw |
6-8 kgf-cm |
|
Torque of other screw |
Cover 12-14 kgf-cm/Head 8-9 kgf-cm/Mounting 50-60 kgf/cm |
|
Bare cooper wire spec. |
Φ 2 Max. |
|
Cable Spec. |
Φ 12 Max. |
