The machine drives 4 digging blades to move into the soil within several minutes, makes the tree and its soil wrapped root held by the round space around by the 4 digging blades. And then it is raised slowly and up off the ground. By this way to realize the operator finishing quick digging, transporting and planting trees by sitting in the cab.
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
545 KG
Quick Details
-
Use:
-
tree spade
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XCMG
-
Weight:
-
545 KG
Product Description

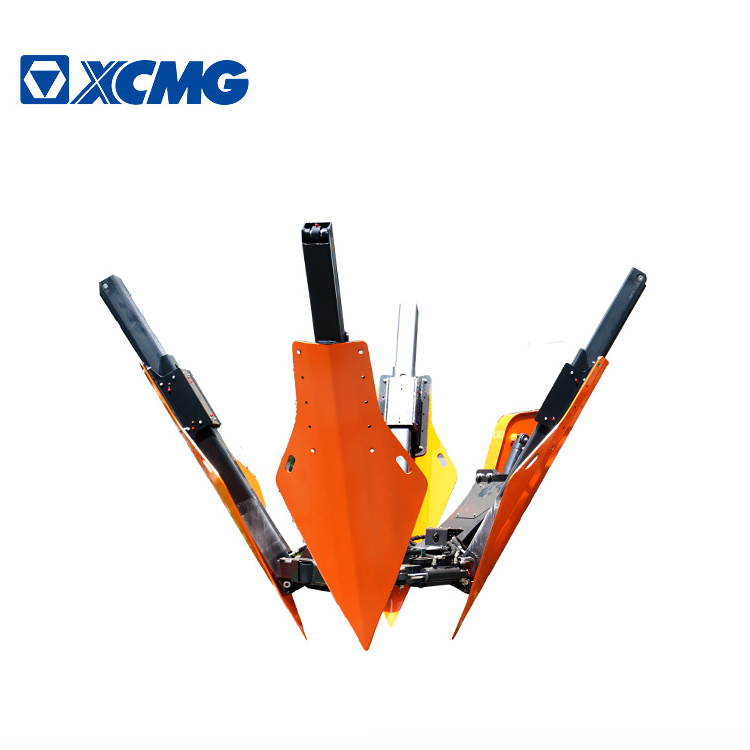

XCMG Official X0503 Tree Transplanting Machine Tree Spade for Tractor / Backhoe Loader
.
Product Paramenters
|
Tree spade model
|
X050324
|
X050336
|
X050344
|
XBM0150
|
|
overall length(mm)
|
1329
|
1991
|
1974
|
2250
|
|
overall width(mm)
|
1676
|
2027
|
1692
|
2250
|
|
overall height(mm)
|
1320
|
1491
|
1994
|
1150
|
|
digging depth(mm)
|
500
|
747
|
787
|
1307
|
|
Max.gate opening(mm)
|
80
|
160
|
240
|
1930
|
|
blade angle(degree)
|
25
|
25
|
25
|
25
|
|
working flows(l/min)
|
12-21
|
12-21
|
12-21
|
100-300
|
|
pressure(mpa)
|
16
|
16
|
16
|
16-32
|
|
fit tree diameter(mm)
|
30-60
|
50-100
|
70-120
|
160-220
|
|
weight(kg)
|
545
|
816
|
981
|
1000
|
Product Show
Multi-function Machine
Closed sweeper
It's suitable for road maintenances and port and harbor road constructions. It works with the milling machine to clean the milled roads.
Planer
It's suitable for small-area milling of asphalt and cement roads and applicable for municipal and road maintenances. It's used with closed-type sweeper.
Manhole cover planer
It's suitable for the milling operation of damaged manhole covers on urban roads and can remarkably promote the replacement efficiency of manhole covers on urban roads and reduce the maintenance time.
Breaking hammer
It's applicable for user's outdoor operations with limited interior space or height and is an ideal tool for large-area breaking.
Twist drill
It's applicable for diriling operations for guidepost setup, tree planting, electricity pole setup, and municipal gardens.
Continuous ditcher
It's applicable for municipal and farm/ranch maintenances.
Inclined sweeper
It can rapidly and effectively remove the thin snow, dusts, viscous dry mud, and other wastes and is especially suitable for sweeping of roads, sidewalks, driving lanes, parking lots, runways, and warehouses.
Snow plough
It's suitable for sweeping of materials such as municipal road soil and accumulated snow. It's applicable for sweeping the accumulated snow of common thickness (In thickness of
≤
30cm) and can push the accumulated snow to designated position for sweeping.
Rotary tiller
Suitable for softer bed packaging. The high-torque hydraulic motor drives the rotary tlling mechanism to loosen the Cow bed, so that the high and low layers of the cowshed bed are loose and flat, and the efficiency is high.
