- Product Details
- {{item.text}}
Quick Details
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Capacity:
-
100
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JIAJIARE
-
Model Number:
-
HTS-GS-15
-
Product name:
-

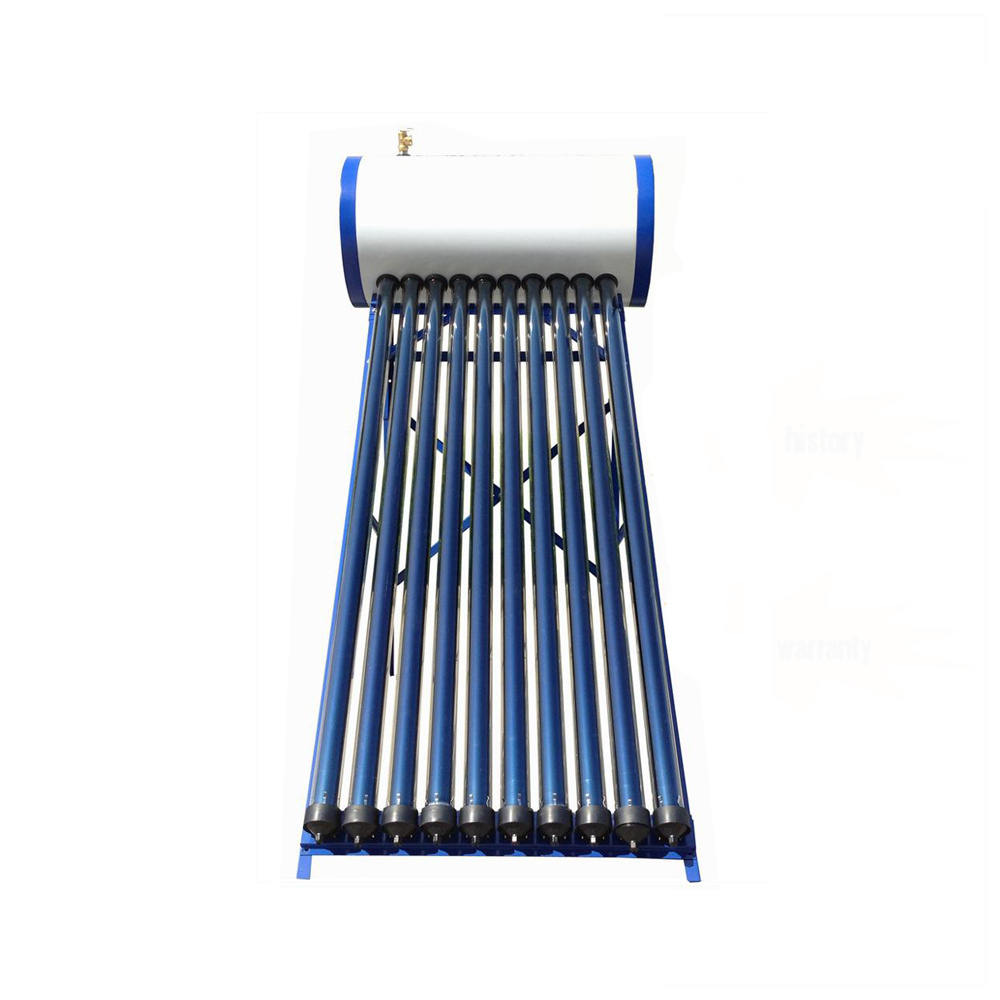

Pressurized Solar Water Heater Camping Solar Water Heater
-
Outer tank:
-
Colored steel/Galvanized steel/Stainless Steel/PVDF
-
Inner tank:
-
Food grade SUS304-2B Stainless Steel
-
Vacuum tube:
-
Borosilicate glass 3.3 with SS-CU-ALN coating
-
Frame:
-
Galvanized steel/Stainless steel/Alaminum ally with 0 to 60 degree
-
Insulation:
-
High density polyurethane foam
-
Feature:
-
Eco-Friendly,Anti-freezing
-
Heat pipe:
-
All copper TU1
-
Color:
-
Customized
-
Payment:
-
T/T:30% in advance, 70% balance before shipment
Quick Details
-
Warranty:
-
2 years
-
Application:
-
Outdoor, Garage, Commercial, Household
-
Type:
-
Evacuated Tube
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Capacity:
-
100
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JIAJIARE
-
Model Number:
-
HTS-GS-15
-
Product name:
-
Pressurized Solar Water Heater Camping Solar Water Heater
-
Outer tank:
-
Colored steel/Galvanized steel/Stainless Steel/PVDF
-
Inner tank:
-
Food grade SUS304-2B Stainless Steel
-
Vacuum tube:
-
Borosilicate glass 3.3 with SS-CU-ALN coating
-
Frame:
-
Galvanized steel/Stainless steel/Alaminum ally with 0 to 60 degree
-
Insulation:
-
High density polyurethane foam
-
Feature:
-
Eco-Friendly,Anti-freezing
-
Heat pipe:
-
All copper TU1
-
Color:
-
Customized
-
Payment:
-
T/T:30% in advance, 70% balance before shipment
Features
1) High output pressure for comfortable shower
2) 10 years long life span
3) 55% heat absorption
4)12 bar testing pressure
5) Anti-freezing -30 temperature
|
Type
|
Aperture Area
(m2)
|
Vacuum tube
(pcs)
|
Capacity
(L)
|
Loading Qty
20'/40'HQ
|
|
HTS-GS-10
|
1.21
|
58*1800*10
|
100
|
75/178
|
|
HTS-GS-15
|
1.815
|
58*1800*15
|
150
|
54/128
|
|
HTS-GS-20
|
2.42
|
58*1800*20
|
200
|
39/92
|
|
HTS-GS-24
|
2.904
|
58*1800*24
|
240
|
36/84
|
|
HTS-GS-30
|
3.63
|
58*1800*30
|
300
|
29/69
|
Please contact us.
Thank you!
Zhejiang jiajiare new energy Co., Ltd., is a professional engaged in solar water heater development and research, production and sales of integrated enterprise. In 1995, the company began to develop and produce solar water heater, which has a long history of 18 years. The company "JIAJIARE" brand water heater has become the company's leading products, is the country's green products recommended. Company to excellent product quality for the vitality of the family hot products sold more than and 20 provinces nationwide, the country has a total of more than and 100 distributors. At the same time to meet domestic demand, and exported to Europe, North America and South Africa and other countries and regions, has been well received by consumers at home and abroad.
Process of producing water thank
1) Free sample service:
One or two samples below 100 L will be free to our clients.
Terms:
Clients pay the samples first, we will cut the samples value in the next order.
2) OEM service:
We are professional solar water heater manufacturer, we provide the free OEM for the container quantity clients, no matte 20 feet container or 40 HQ container.
3) After service:
1.Tech support:we will provide all the tech support ,including the install manual, the advertisement, the repairing and selling.
2.Refunding and exchanging: we will provide the free refund and exchange for the broken products in the warranty.but we will make some evaluation before we make the complement.
1. Can you provide FREE SAMPLES?
As solar water heater system is a large product, including the product value and shipping cost, it is really a high investment, so we can not provide it free, hope for your understand.
2. Can you accept OED/ODM?
Yes, of course.we are professional solar water heater manufacturer with our own brand, also providing OEM service for many famous brand, you can send us your requirements and logo designing.
3. What is your GUARANTEE TIME?
It differs with different configuration. For our standard, 10 years for vacuum tubes, 6 years for heat pipes, 3 years for brackets and water tank,1 year for other parts.
4. What is your PAYMENT TERM?
For container: T/T 30% in advance, 70% or 100% credit before shipment , Western Union.
For sample: Usually 100% T/T in advance, also can be negotiable.
5. Do you have other ADDITIONAL SERVICE?
YES. We provide free spares according to your order,such as vacuum tubes,tube holders,dust rings, seal rings,screws etc. Also, we can provide logo design free if you have an order at least 20 feet container.
