Quick Details
-
Certification:
-
Other
Quick Details
-
Place of Origin:
-
China
-
Warranty:
-
24 Months
-
model:
-
UE-DCG-3
-
Certification:
-
Other
Product Description
Product Description
Product Parameters
Product Parameters
|
project
|
UE-DCG-3
|
UE-DCG-10
|
UE-DCG-13
|
|
Rated load quality (kg)
|
3500
|
10000
|
13000
|
|
Drum diameter (mm)
|
216
|
420
|
420
|
|
Roller length (mm)
|
1000
|
1000
|
1000
|
|
Drum center distance (mm)
|
442
|
754
|
Front roller group 754 Front roller group distance from rear roller group 1346
|
|
Front roller group distance from rear roller group 1346
|
|||
|
Number of roller sets
|
Two groups
|
Two groups
|
Three groups
|
|
Drum surface treatment
|
Non-slip knurling processing
|
Non-slip knurling processing
|
Non-slip knurling processing
|
|
Maximum test speed (km/h)
|
130
|
130
|
130
|
|
Maximum absorbed power (kW)
|
250
|
500
|
750
|
|
Power of anti-drag motor (kW)
|
7.5 (frequency control)
|
11 (frequency control)
|
11 (frequency control)
|
|
Maximum speed of anti-drag (km/h)
|
>96
|
>96
|
>96
|
|
Lifting method
|
Airbag
|
Airbag
|
Airbag
|
|
Measuring speed error (km/h)
|
±0.1
|
±0.1
|
±0.1
|
|
Driving force measurement error (%)
|
±1
|
±1
|
±1
|
|
Constant speed control error (km/h)
|
±0.2
|
±0.2
|
±0.2
|
|
power supply
|
AC 220V, 50Hz, 30A
|
AC 220V, 50Hz, 30A
|
AC 220V, 50Hz, 30A
|
|
AC 380V, 50Hz, 10kW
|
AC 380V, 50Hz, 20kW
|
AC 380V, 50Hz, 20kW
|
|
|
Dimensions (mm)
|
4000x970x645
|
5000x1540x880
|
5000x2692x880
|
Features
Features

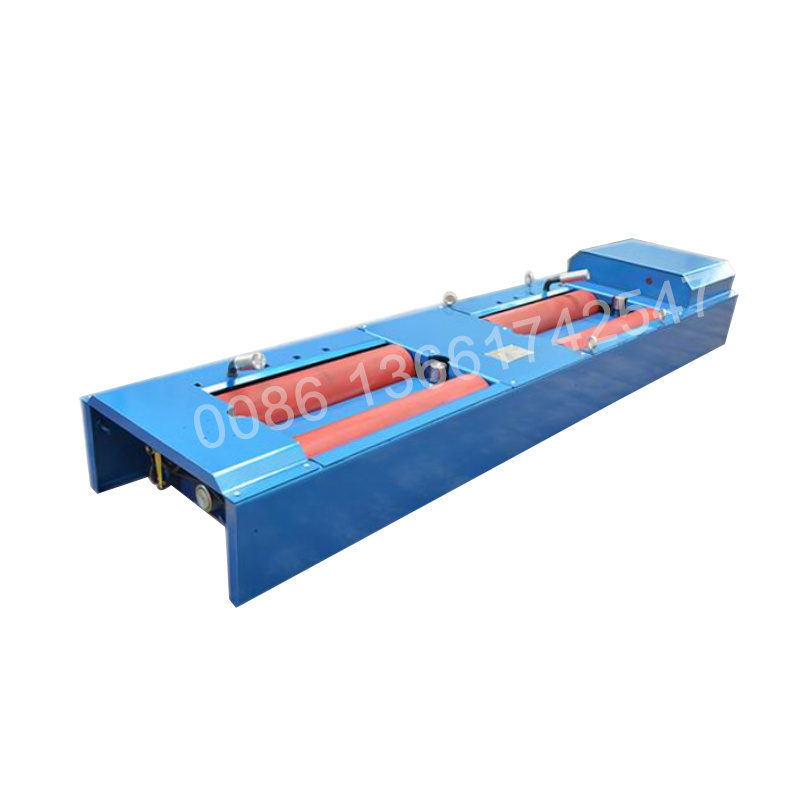

Main technical features of automobile chassis dynamometer: 1. Adopt imported high-power air-cooled eddy current device and high-precision sensor to ensure stable and accurate detection and low maintenance cost 2. The table body adopts an integrated frame structure, the roller is precisely processed, the balance precision is high, the special surface treatment of the roller surface has a high adhesion coefficient, and the high-strength bearing is used, which has strong bearing capacity, safety and reliability 3. Reasonable structure, low internal power loss, accurate basic inertia 4. The safety device is fully equipped to ensure the safety and stability of the testing process 5. Fully comply with the relevant national standards and regulations on the technical requirements of the chassis dynamometer 6. It can be applied to the detection of steady state working method, simple transient working method, loading deceleration working method
