China supplier 150bar aluminum high purity refillable helium tanks balloons
China supplier 150bar aluminum high purity refillable helium tanks balloons
China supplier 150bar aluminum high purity refillable helium tanks balloons
China supplier 150bar aluminum high purity refillable helium tanks balloons
China supplier 150bar aluminum high purity refillable helium tanks balloons
China supplier 150bar aluminum high purity refillable helium tanks balloons
China supplier 150bar aluminum high purity refillable helium tanks balloons
China supplier 150bar aluminum high purity refillable helium tanks balloons

China supplier 150bar aluminum high purity refillable helium tanks balloons

FOB Reference Price: Get Latest Price
≥1 Pieces
US $31
≥500 Pieces
US $20
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
LW-108-1.0-15-H
Brand Name:
Alsafe
Product name:
Refillable helium tanks balloons
Certificate:
CE,TS
Standard:
ISO7866 or GB11640
Outside diameter:
108mm
Length:
210mm
Water capacity:
1L
Weight:
1.3kg
Wall thickness:
5.5mm
Filling content:
industry
Working life:
15years

Quick Details

Material:
Aluminium
Use:
nitrogen gas cylinder
Place of Origin:
Liaoning, China
Model Number:
LW-108-1.0-15-H
Brand Name:
Alsafe
Product name:
Refillable helium tanks balloons
Certificate:
CE,TS
Standard:
ISO7866 or GB11640
Outside diameter:
108mm
Length:
210mm
Water capacity:
1L
Weight:
1.3kg
Wall thickness:
5.5mm
Filling content:
industry
Working life:
15years

Product Description

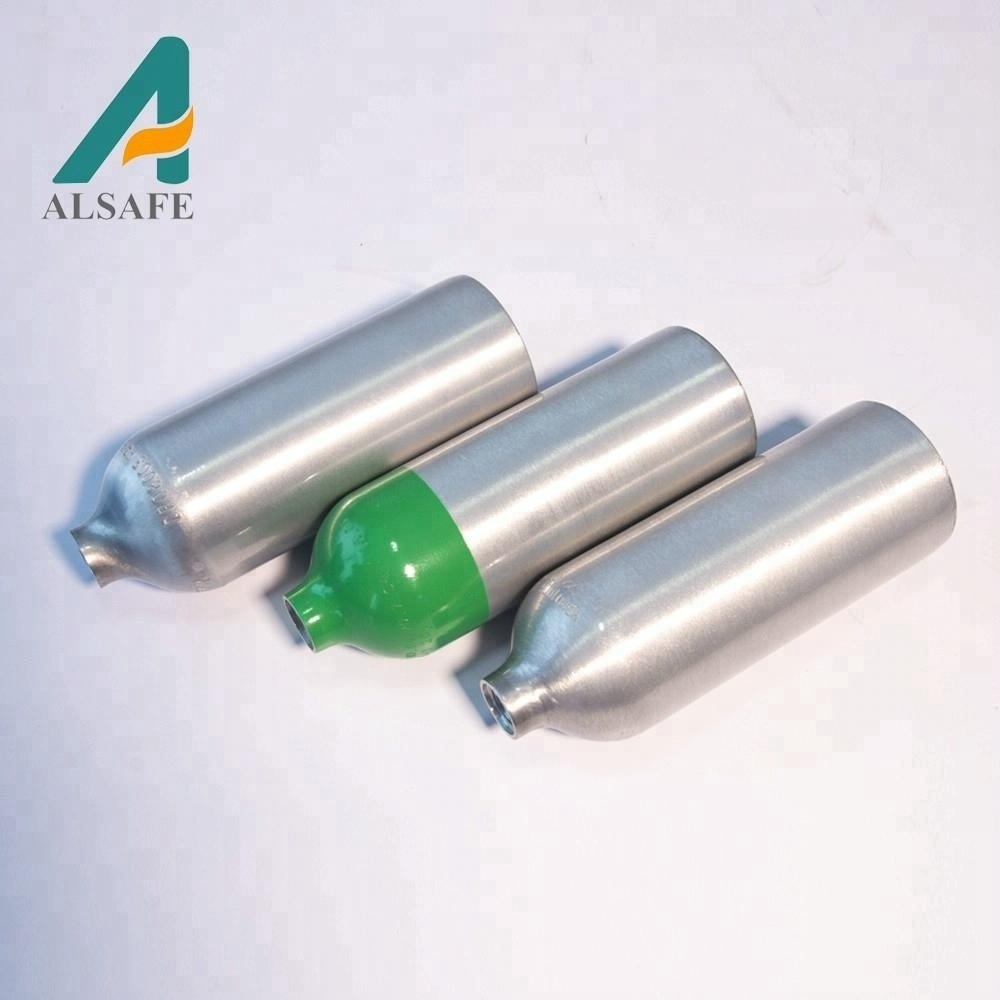

Product Name : Mini helium tank

Manufacturer : Liaoning Alsafe Technology Co., Ltd.

Specification: LW-108-1.0-15-H

Standard: ISO7866 or GB11640

Certificate: CE, TS

Third party Inspectors: TUV, CSEI, SGS

Filling content : CO 2 , O 2 and other gases that are compatible with aluminum

Color: Aluminum or customed

Outside surface treatment: Transparent painting or customed

Thread: PZ19.2, PZ27.8 or custome d

Form A, Form E avaliable.

Features:

· Made by aluminum 6061;

· 40% lighter than steel cylinders;

· No magnetism;

· High corrosion resist and special inner surface treatment, ensure beverage gas clean and smelless;

· Stable performance;

· Cover a wide applications such as Industrial & calibration gases storage , Medical oxygen storage , Beverage CO2 storage , Diving sports , Fire fightings , Aquarium CO 2 systems , and any other fields that have a clean high pressure gases storage requirements, specially a strong corrosion-resist inner surface and light weight preferred;

· Choice of worldwide top brands and enterprises.

Cylinders in the workshop

cylinders waiting for leaking tested after valving cylinders waiting for packaging

Seamless aluminum gas cylinder specification

Specification Outside diameter Water capacity Length Weight Wall thickness Working pressure
LW-60-0.5-20-H 60mm 0.5L 285mm 0.59kg 3.1mm 200bar
LW-75-0.7-15-H 75mm 0.7L 295mm 0.85kg 4mm 150bar
LW-82-0.7-15-H 82mm 0.7L 235mm 0.9kg 4.2mm 150bar
LW-89-1.0-15-H 89mm 1.0L 269mm 1.2kg 4.5mm 150bar
LW-89-1.4-15-H 89mm 1.4L 345mm 1.4kg 4.5mm 150bar
LW-108-1.0-15-H 108mm 1.0L 210mm 1.3kg 5.5mm 150bar
LW-108-1.4-15-H 108mm 1.4L 264mm 1.6kg 5.5mm 150bar
LW-108-2.0-15-H 108mm 2.0L 346mm 2.1kg 5.5mm 150bar
LW-108-2.5-15-H 108mm 2.5L 413mm 2.5kg 5.5mm 150bar
LW-120-2.0-15-H 120mm 2.0L 320mm 2.7kg 6.1mm 150bar
LW-120-2.5-15-H 120mm 2.5L 369mm 3.0kg 6.1mm 150bar
LW-120-2.8-15-H 120mm 2.8L 398mm 3.2kg 6.1mm 150bar
LW-120-3.2-15-H 120mm 3.2L 437mm 3.5kg 6.1mm 150bar
LW-140-4.0-15-H 140mm 4.0L 420mm 4.2kg 7.1mm 150bar
LW-140-5.0-15-H 140mm 5.0L 500mm 4.9kg 7.1mm 150bar
LW-140-6.0-15-H 140mm 6.0L 580mm 5.6kg 7.1mm 150bar
LW-140-8.0-15-H 140mm 8.0L 741mm 7.2kg 7.1mm 150bar
LW-140-5.0-20-H 140mm 5.0L 525mm 6.3kg 9.3mm 200bar
LW-140-6.0-20-H 140mm 6.0L 652mm 7.98kg 9.3mm 200bar
LW-159-10.0-15-H 159mm 10.0L 730mm 8.8kg 8mm 150bar
LW-184-9.0-20-H 184mm 9.0L 575mm 12.0kg 12.2mm 200bar
LW-184-10.0-15-H 184mm 10.0L 620mm 12.9kg 12.2mm 200bar
LW-184-11.0-15-H 184mm 11.0L 665mm 14.2kg 12.2mm 200bar
LW-184-12.0-15-H 184mm 12.0L 710mm 15.4kg 12.2mm 200bar
LW-203-12.0-15-H 203mm 12.0L 587mm 11.8kg 10.3mm 150bar
LW-203-13.4-15-H 203mm 13.4L 640mm 13.8kg 10.3mm 150bar
LW-203-20.0-15-H 203mm 20.0L 873mm 17kg 10.3mm 150bar
LW-203-21.3-15-H 203mm 21.3L 962mm 19.9kg 10.3mm 150bar
LW-204-12.0-20-H 204mm 12.0L 610mm 16.5kg 13.4mm 200bar
LW-204-15.0-20-H 204mm 15.0L 735mm 18.7kg 13.4mm 200bar
LW-204-20.0-20-H 204mm 20.0L 940mm 23.4kg 13.4mm 200bar
LW-232-29.5-15-H 232mm 29.5L 994mm 30.2kg 11.7mm 150bar
LW-232-30.0-15-H 232mm 30.0L 1010mm 30.5kg 11.7mm 150bar
LW-232-33.4-15-H 232mm 33.4L 1126mm 31.3kg 11.7mm 150bar
LW-232-40.0-15-H 232mm 40.0L 1340mm 36.5kg 11.7mm 150bar
LW-232-20.0-20-H 232mm 20.0L 750mm 26.9kg 15.4mm 200bar
LW-232-26.0-20-H 232mm 26.0L 921mm 30.7kg 15.4mm 200bar
LW-232-30.0-20-H 232mm 30.0L 1076mm 36.4kg 15.4mm 200bar
LW-232-31.5-20-H 232mm 31.5L 1096mm 38kg 15.4mm 200bar
LW-232-40.0-20-H 232mm 40.0L 1365mm 44.1kg 15.4mm 200bar
LW-250-40.0-15-H 250mm 40.0L 1150mm 36.7kg 12.6mm 150bar
LW-250-46.4-15-H 250mm 46.4L 1305mm 38.7kg 13.6mm 150bar
LW-250-47.5-15-H 250mm 47.5L 1340mm 42.0kg 12.6mm 150bar
LW-250-50.0-15-H 250mm 50.0L 1590mm 39kg 12.6mm 200bar
LW-250-40.0-20-H 250mm 40.0L 1227mm 46.3kg 16.5mm 200bar
LW-250-50.0-20-H 250mm 50.0L 1500mm 56kg 16.5mm 200bar

Note: The specifications above are popularly used in Industrial gases storage , Calibration gases storage , Medical oxygen storage , Beverage CO 2 storage , Diving sports , Fire fightings , Aquarium CO 2 systems , etc . However, if you need other size or specifications, please contact us directly. We always offer friendly service and knowledgeable advice.
