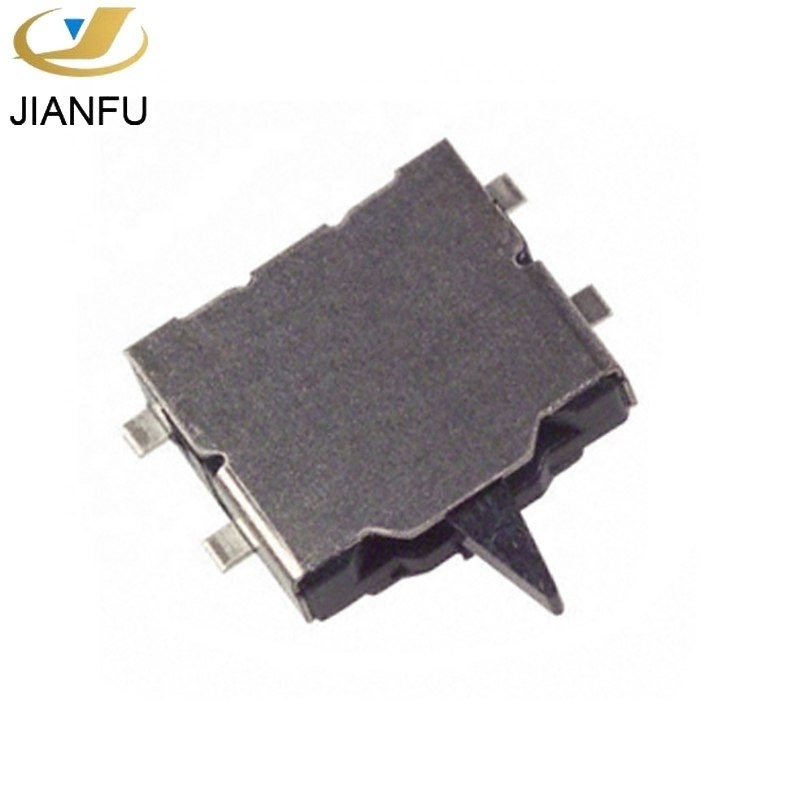

Quick Details
-
Switch Function:
-
Momentary-Off-Momentary
-
Actuator Type:
-
Angled Toggle (Detector)
-
Circuit:
-
SPDT
-
Mounting Type:
-
Surface Mount,Right Angle
-
Operating Force:
-
30gf
-
Mechanical & Electrical Life::
-
50,000 Cycles
-
Certification:
-
ROHS SGS ISO9001/14001
-
Feature:
-
Usable as an operation swith(an input device)
-
Application:
-
Operating switches for other electronic equipment
Quick Details
-
Max. Voltage:
-
5V DC
-
Place of Origin:
-
Zhejiang, China
-
Type:
-
Detect switch
-
Switch Function:
-
Momentary-Off-Momentary
-
Actuator Type:
-
Angled Toggle (Detector)
-
Circuit:
-
SPDT
-
Mounting Type:
-
Surface Mount,Right Angle
-
Operating Force:
-
30gf
-
Mechanical & Electrical Life::
-
50,000 Cycles
-
Certification:
-
ROHS SGS ISO9001/14001
-
Feature:
-
Usable as an operation swith(an input device)
-
Application:
-
Operating switches for other electronic equipment
Dimensions
PCB layout
Circuit diagram
| Specifications | |||||||
| CONTACT RATING: | 50 μA 3 V DC to 10 mA 5 V DC (Resistive load) | ||||||
| ELECTRICAL LIFE: | 50,000 cycles. | ||||||
| CONTACT RESISTANCE: | 500 m Ω max. initial. | ||||||
| INSULATION RESISTANCE: | 100 V AC (50 Hz or 60 Hz) for 1 minute | ||||||
| Mounting Height: | 1.5mm | ||||||
| Poles and Throws: | 1-pole 2-throw | ||||||
|
Full Travel
(Pushing distance) |
With Boss 1.0mm(1.5mm) | ||||||
| With Boss 2.2mm(1.5mm) | |||||||
| OPERATING TEMPERATURE: | –10 °C to +60°C (Standard), –40 °C to +85 °C (Automotive) | ||||||
| Heat Resistance: | 70 °C for 96 hours | ||||||
| Low Temperature Resistance: | –25°C for 96 hours | ||||||
| Humidity Resistance: | 40 °C 90 % to 95 % RH for 96 hours | ||||||
| Features/Benefits | Typical Applications | ||||||
| External Dimensions: 4.1 mm×5.0 mm (Height:1.5 mm) |
Detection of media in portable electronic equipment
(CD-ROM,DVD,Digital still cameras,etc) |
||||||
| Long over-travel(through-operation available) | Operating switches for other electronic equipment | ||||||
| Usable as an operation swith(an input device) | |||||||
