Quick Details
-
Torque:
-
217N.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Eternal Luck
-
Model Number:
-
4G69
-
Warranty:
-
12 Months
-
Engine Code:
-
4G69
-
Car Model:
-
For Mitsubishi
-
Material:
-
Aluminum&cast iron
-
Package:
-
Color Box+export Carton+pallet
-
Quality::
-
100% Tested
Quick Details
-
OE NO.:
-
4G69
-
Power:
-
165HP
-
Displacement:
-
2.4L
-
Torque:
-
217N.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Eternal Luck
-
Model Number:
-
4G69
-
Warranty:
-
12 Months
-
Engine Code:
-
4G69
-
Car Model:
-
For Mitsubishi
-
Material:
-
Aluminum&cast iron
-
Package:
-
Color Box+export Carton+pallet
-
Quality::
-
100% Tested

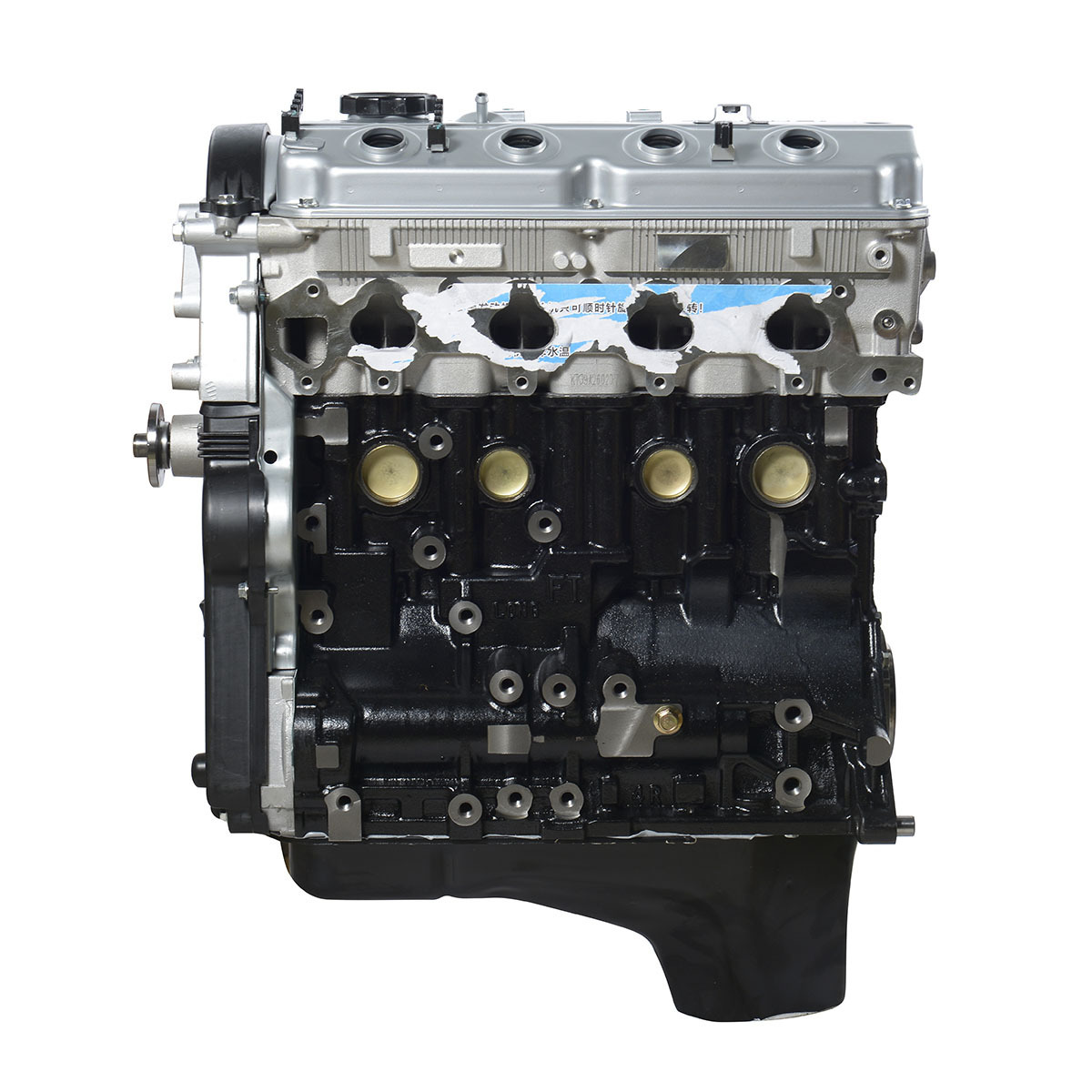

The 4G69 engine was the last in the famous Sirius series of the Mitsubishi concern. Its debut took place in 2003, and although after 2 years the Japanese auto giant replaced the engine with another, more modern one, its production did not stop completely.
The 4G6 family also includes engines: 4G61, 4G62, 4G63, 4G63T, 4G64 and 4G67.
At first, this motor was installed only on the concern’s models, such as Grandis, Outlander and Galant. Today, the production of the in-line 4-cylinder 2.4-liter engine and its components continues under license in China.
Despite the working volume of 2.4 liters, the fuel consumption of 4g69 on average does not exceed 9.5 liters per 100 km.
In addition, a version with direct fuel injection GDI was also produced, the compression ratio on such engines was increased to 11.5.
The engine was installed on:
* Mitsubishi Galant DJ1 in 2004 – 2012;
* Mitsubishi Grandis NA4 in 2003 – 2011;
* Mitsubishi Eclipse 4G in 2005 – 2012;
* Mitsubishi Lancer CS in 2004 – 2006;
* Mitsubishi Outlander CU0 in 2003 – 2006.
* Mitsubishi Galant DJ1 in 2004 – 2012;
* Mitsubishi Grandis NA4 in 2003 – 2011;
* Mitsubishi Eclipse 4G in 2005 – 2012;
* Mitsubishi Lancer CS in 2004 – 2006;
* Mitsubishi Outlander CU0 in 2003 – 2006.
|
Technical Specifications
|
|
|
|
Displacement, cc
|
2378
|
|
|
Fuel system
|
injector
|
|
|
Power output, hp
|
160 / 5750 rpm
165 / 6000 rpm (GDI) |
|
|
Torque output, Nm
|
213 / 4000 rpm
217 / 4000 rpm (GDI) |
|
|
Cylinder block
|
cast iron R4
|
|
|
Block head
|
aluminum 16v
|
|
|
Cylinder bore, mm
|
87
|
|
|
Piston stroke, mm
|
100
|
|
|
Compression ratio
|
9.5
11.5 (GDI)
|
|
|
Features
|
SOHC
|
|
|
Hydraulic lifters
|
no
|
|
|
Timing drive
|
belt
|
|
|
Phase regulator
|
MIVEC
|
|
|
Turbocharging
|
no
|
|
|
Recommended engine oil
|
5W-30
|
|
|
Engine oil capacity, liter
|
4.3
|
|
|
Fuel type
|
petrol
|
|
|
Engine lifespan, km
|
~350 000
|
|
|
Weight, kg
|
175
|
|
Q1. Which package do you used ?
A: Generally we pack our goods in neutral or white boxes and brown cartons. Your own brand and and logo are welcomed after getting your authorization letter.
Q2. What‘s your payment way?
A: T/T 30% advance, and 70% after send photos of goods to you before load .
Q3. What’s the delivery way ?
A: We accept EXW, FOB, CFR, CIF, DDU, just as your wish.
Q4. How long is your delivery time?
A: Usually it will take about 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. What can I do if i received bad products ?
A: We will think highly of your feedback, Please contact our sales at once if you find any problems after you received goods, our sales will give you resonable reply and help you solve all problems.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock.
