Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
XSHEEN
-
Voltage:
-
AC 90-260V, 50/60HZ
-
Dimension(L*W*H):
-
385*430*220mm
-
Weight:
-
19kg
-
product name:
-
automatic card cutter
-
size of paper:
-
A3+, A3, A4
-
thickness of paper:
-
0.20-0.35mm(180-350g)
-
volume of paper:
-
max.12 pcs of name card paper
-
volume of business card cutter:
-
180g 90 by 5pcs
-
ambience of use:
-
humidity 35-70%
-
paper nature:
-
common paper, top quality paper
-
way of paper feeding:
-
automatic paper feeding in single rubbing way
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
United States
-
After-sales Service Provided:
-
Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Certification:
-
CE Certificate
Quick Details
-
Type:
-
business card cutter
-
Production Capacity:
-
50 m/min
-
Max. workable width:
-
350mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
XSHEEN
-
Voltage:
-
AC 90-260V, 50/60HZ
-
Dimension(L*W*H):
-
385*430*220mm
-
Weight:
-
19kg
-
product name:
-
automatic card cutter
-
size of paper:
-
A3+, A3, A4
-
thickness of paper:
-
0.20-0.35mm(180-350g)
-
volume of paper:
-
max.12 pcs of name card paper
-
volume of business card cutter:
-
180g 90 by 5pcs
-
ambience of use:
-
humidity 35-70%
-
paper nature:
-
common paper, top quality paper
-
way of paper feeding:
-
automatic paper feeding in single rubbing way
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
United States
-
After-sales Service Provided:
-
Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Certification:
-
CE Certificate

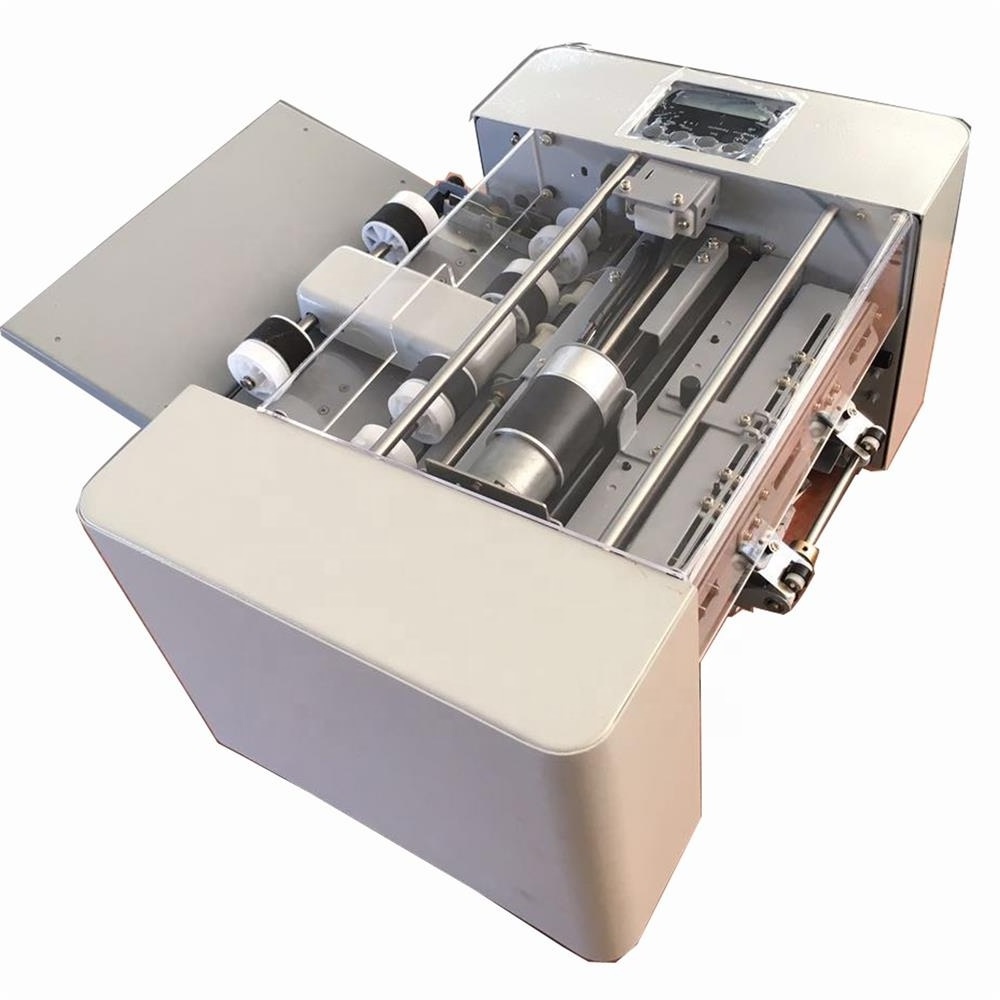

name card/PVC card/business automatic card cutter
Description
"XSHEEN" Brand XH-A3/A4 automatic business card cutter machine controlled by microcomputer and sensor technology, control the cutting position automatically, the cutting position could be adjusted freely. High precision, long life blade, high speed with automatic waste removal function. The machine could cut a variety of cards, photos and other printed materials. Automatic feeder features, fast, precise, easy to operate.
Features
1, Classic style, precision internal structure, stability
2, Easy to operate
3, Good for laser printing and inkjet printing process
Technical data
|
Model |
XH-A3 |
XH-A4 |
|||
|
Cutting mode |
Vertical: cutting with roll cutter Lateral : cutting with lateral cutter |
||||
|
Paper fed mode |
Automatic paper feed in a sole friction way |
||||
|
Paper size |
A3(297mmx420mm) |
A4(210mmx297mm) |
|||
|
Paper thickness |
0.20mm (180g/m²)---0. 45 mm ( 40 0g/m²) |
||||
|
Paper quality |
Common paper , photo paper, card paper, top quality paper |
||||
|
Cutting rate |
About 100pcs/1.5min ( A3 ) for name card |
About 100pcs/3min ( A4 ) for name card |
|||
|
Cutting size |
85/89/90/95x 45 / 50 / 54 / 90 / 95 / 12 7 mm Vertical cutter could be change to (89,85,90,95)mm accordingly. |
||||
|
Volume of paper placement |
Max.12pcs of name card paper (0.25mm thick/pcs) or total thickness 3mm |
||||
|
Volume of card |
90pcs/box×3boxes (180g/m² paper) 70pcs/box×3boxes(250g/m² paper) |
90pcs/box×2boxes (180g/m² paper), 70pcs/box×2boxes(250g/m² paper) |
|||
|
Machine dimension |
570L*490W*220H(mm) |
430L*385W*220H(mm) |
|||
|
Environment of use |
-15~+40,humidity; 35~70% |
||||
|
Weight |
19 kg |
15 kg |
|||
|
Power supply |
AC90-260V,50/60HZ,0.5A |
||||
