Quick Details
-
Dimensions(L*W*H):
-
4.2x1.6x2.4m
-
Weight:
-
4000 KG
-
Print Dimension:
-
1600mm
-
Print Speed:
-
50m/min
-
ink:
-
water ink or water base ink
-
anilox roller:
-
ceramic/metal roller
-
After Warranty Service:
-
No service
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
After-sales Service Provided:
-
Online support
-
Marketing Type:
-
Hot Product 2019
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HWASEN
-
Voltage:
-
380V/220V
-
Dimensions(L*W*H):
-
4.2x1.6x2.4m
-
Weight:
-
4000 KG
-
Print Dimension:
-
1600mm
-
Print Speed:
-
50m/min
-
ink:
-
water ink or water base ink
-
anilox roller:
-
ceramic/metal roller
-
After Warranty Service:
-
No service
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
After-sales Service Provided:
-
Online support
-
Marketing Type:
-
Hot Product 2019
-
Certification:
-
CE

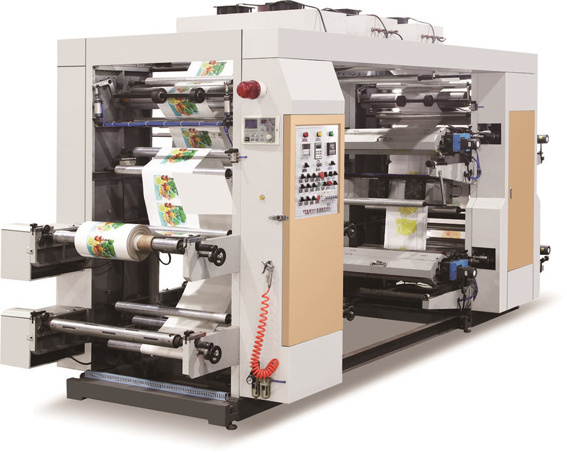

YT-41600 normal speed flexo printing machine 4 color for wrapping paper
1. Feature:
1.1 Easy operation, flexible starting, accurate color register .
1.2 The meter counter can set printing quantity according to the requirements, stop the machine automatically at the quantity or when the material is cut off.
1.3 Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
1.4 The printing ink is spread by the anilox cylinder with even ink color.
1.5 Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.360continuous and adjustable longitudinal register device.
1.6 The frequency control of motor speed adapts to different printing speeds.
1.7 Suitable for printing the packing material as PE and PP plastic bags, glass papers rolling papers, etc.
2. Main Technical Specification
|
Model |
YT-41600 |
|
Feed width |
150-1600mm |
|
Printing width |
150-1560mm |
|
Print length |
191-914mm |
|
Unwind diameter |
φ600mm |
|
Printing Speed |
5-50m/min |
|
Thickness |
2.38mm |
|
Total Power |
14.37kw |
|
Dimension |
4.2×1.6×2.4m |
|
Weight |
4000kg |
3.picture showroom:
