Quick Details
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1685X1010X2.4mm
-
Panel Efficiency:
-
20.7%
-
Application:
-
Class A
-
Max. Power:
-
300W
-
Weight:
-
8.5kg
-
Junction Box:
-
Potted IP68 1500VDC
-
Cable:
-
4.0m㎡ 900mm
-
Dimension:
-
1685*1010*2.4mm
-
Maximum system Voltage:
-
1500V DC
-
Certificate:
-
ISO IEC CE TUV
-
Type:
-
Flexible
-
Warranty:
-
10 years quality warranty, 25 years output power
Quick Details
-
Cell size:
-
158.75mmx158.75mm
-
Brand Name:
-
TP Energy
-
Model Number:
-
TP300MF
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1685X1010X2.4mm
-
Panel Efficiency:
-
20.7%
-
Application:
-
Class A
-
Max. Power:
-
300W
-
Weight:
-
8.5kg
-
Junction Box:
-
Potted IP68 1500VDC
-
Cable:
-
4.0m㎡ 900mm
-
Dimension:
-
1685*1010*2.4mm
-
Maximum system Voltage:
-
1500V DC
-
Certificate:
-
ISO IEC CE TUV
-
Type:
-
Flexible
-
Warranty:
-
10 years quality warranty, 25 years output power

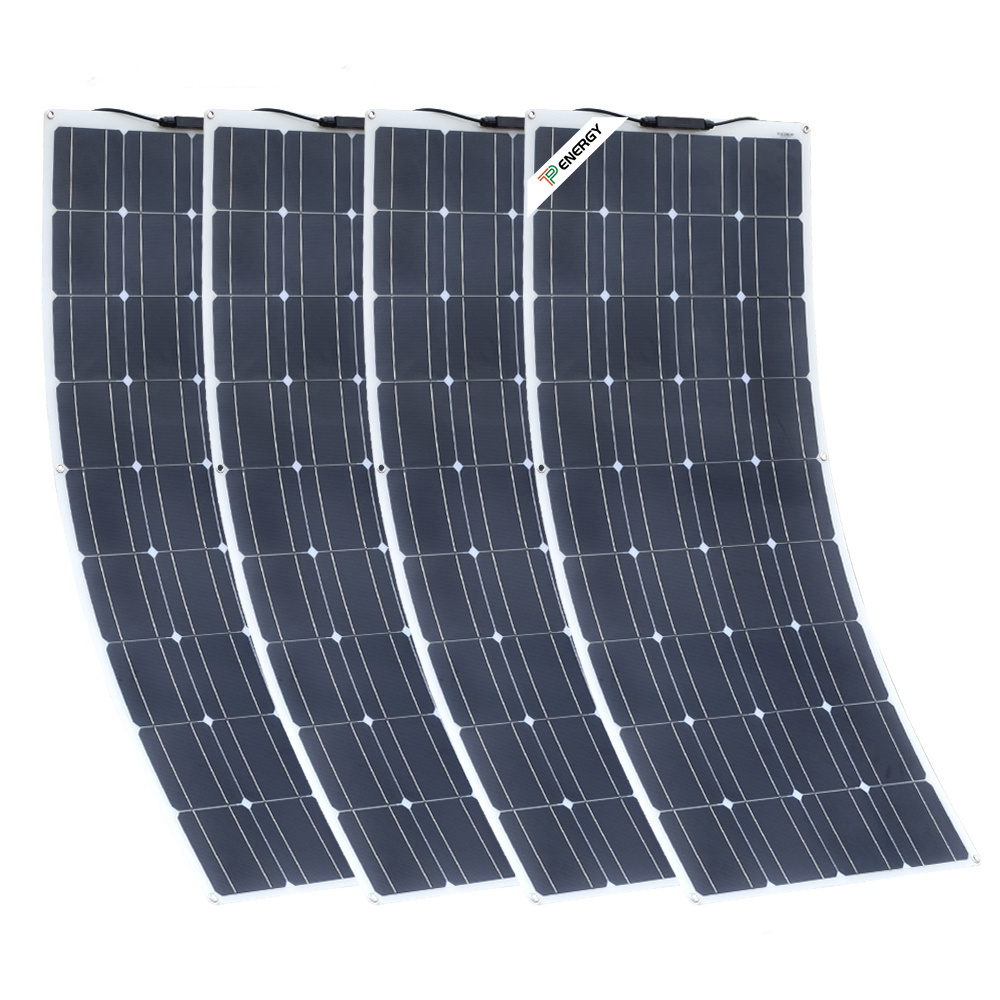

Feature of Mono half-cell Solar Modules:
*Global famous brand with independently certified state-of-the-art automated manufacturing
*Industry leading conversion efficiency
.
*Positive power tolerance offer.
*Half cells solar panels passed slat mist &ammonia corrosion, blowing sand and hail testing.
*Good temperature coefficient enable solar panels better output in hot climates.
*Certified to withstand wind (2400pa) and snow load(5400pa)
Electrical Parameters of half-cells solar panels
| Model |
TP300MF |
| Rated Maximum Power at STC | 300W |
| Maximum Power Voltage (Vmp) | 30.0V |
| Maximum Power Current (Imp) | 10.0A |
| Open Circuit Voltage ( Voc) | 35.4V |
| Short Circuit Current (Isc) | 11A |
| STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5 | |
Material Analysis of mono solar cells solar panel
