Quick Details
-
Product name:
-

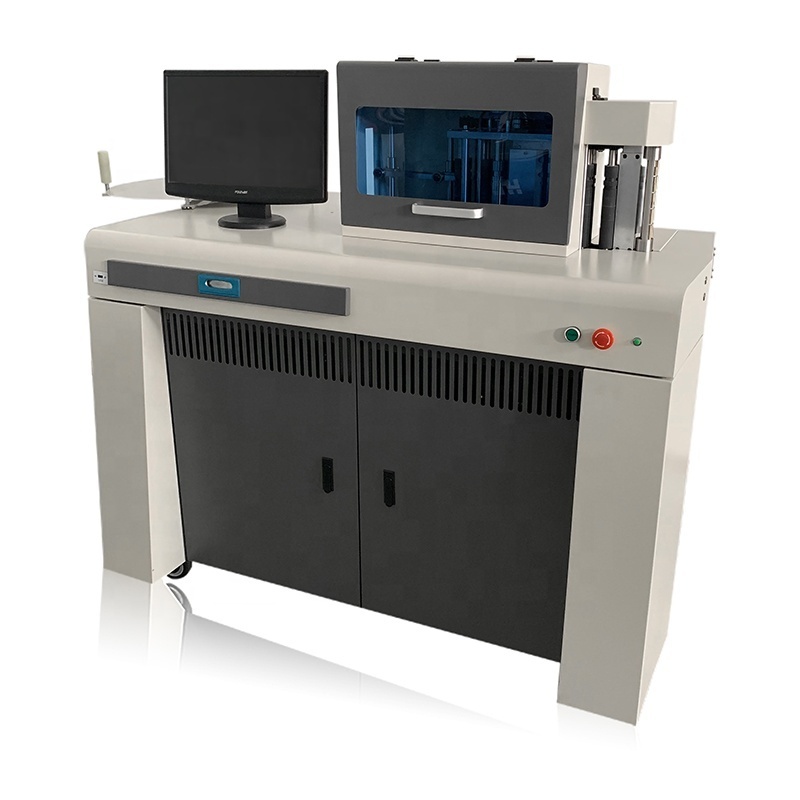

Aluminum Letter Bender Machine/Sign Letter Making Machine
-
Application:
-
Making 3D Sign Channel Letters
-
Processing material:
-
Aluminum profile, Aluminum coil, Channelumel
-
Function:
-
Auto Feeding, Slotting and Bending
-
Material thickness:
-
0.3-1.2mm
-
Material Width:
-
20-160mm
-
Power:
-
1000W
-
Weight:
-
200kg
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YK
-
Weight (KG):
-
200
-
Product name:
-
Aluminum Letter Bender Machine/Sign Letter Making Machine
-
Application:
-
Making 3D Sign Channel Letters
-
Processing material:
-
Aluminum profile, Aluminum coil, Channelumel
-
Function:
-
Auto Feeding, Slotting and Bending
-
Material thickness:
-
0.3-1.2mm
-
Material Width:
-
20-160mm
-
Power:
-
1000W
-
Weight:
-
200kg
channel letter bending machine bender for channel letter signboard
outdoor and indoor signage aluminum profile channel letter making machine for advertising indust
Main Features:
1, Exclusively developed software, high precision, easy to use. Free software upgrades and technical support service for life.
2, Single-side slotting and double-side slotting are both optional, you can select according to your requirement.
3, It can process extruded aluminum profile, aluminum coil, channelume and steel etc.
4, Max material width is 160mm. It is equipped with 6 famous brand stepper motors and high precision control device.
5, Quality Saw Blade. One more for steel iron specially.
6, Work with air compressor.
7, Rubber rollers and quick-wear parts are easy to be changed by workers.
8, Fast bending speed, curve bending smooth and beautifully.
9, All gears drive system instead of belt driving. Very durable.
10, CE certificated. United States Patent No.: US9,021,847 B2.
11, Two year free warranty.
| Technical Parameters | Values |
| Material thickness | 0.3-1.2mm |
| Material width | 20-133 |
| Min. letter size | 100mm |
| Min. bending radius | 7 mm |
| Min space between two slottings | 5mm |
| Rated power | 1000W |
| Machine size | 1400*600*1240mm |
| Machine weight | 200 kg |
| Rated voltage | 220V |
| Step/Servo motor | 6pcs plus auto cutting device |
| Air compressor | 0.6-0.8kgf/cm 2 |
| File format | Ai, Plt, DXF |
