Quick Details
-
Power:
-
8.6
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Loongsheen
-
Maximum Digging Height:
-
2350mm
-
Maximum Digging Depth:
-
1200mm
-
Max Digging Radius:
-
2450mm
-
Rated Speed:
-
2.5km/h
-
Product name:
-
smallest micro digger
-
Type:
-
crawler
-
Name:
-
stone digger
-
Model:
-
lx06-9
-
New Brand Excavators:
-
excavator micro digger
-
Location:
-
root digger
-
Mini Excavator Manufacturer:
-
fence post digger
-
Engine type:
-
Single Cylinder Diesel Oil Engine
-
Keywords:
-
micro-excavator
-
Certification:
-
CE ISO
Quick Details
-
Operating Weight:
-
600kg
-
Bucket capacity:
-
0.02m3
-
Engine Brand:
-
KOOP
-
Power:
-
8.6
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Loongsheen
-
Maximum Digging Height:
-
2350mm
-
Maximum Digging Depth:
-
1200mm
-
Max Digging Radius:
-
2450mm
-
Rated Speed:
-
2.5km/h
-
Product name:
-
smallest micro digger
-
Type:
-
crawler
-
Name:
-
stone digger
-
Model:
-
lx06-9
-
New Brand Excavators:
-
excavator micro digger
-
Location:
-
root digger
-
Mini Excavator Manufacturer:
-
fence post digger
-
Engine type:
-
Single Cylinder Diesel Oil Engine
-
Keywords:
-
micro-excavator
-
Certification:
-
CE ISO
excavator mini back hoe garden atv backhoe home excavator
LX06-9 0.8 ton crawler excavator has beautiful design, its platform can rotate 360 degrees.
The excavator is equipped with rubber track, it's reliable and of user-friendly.
With multiple functions of digging, grabbing, drilling, bull-dozing, ditch-cleaning and rock-breaking, this excavator can be widely used in various construction projects such as water supply, power supply, gas supply, telecommunication network, farmland and garden works etc.
|
Model
|
|
LX06-9
|
|
|||
|
Operating Weight
|
|
750kg
|
|
|||
|
Digging bucket capacity
|
|
0.02cbm/120kg
|
|
|||
|
Maximum digging force
|
|
7.5Kn
|
|
|||
|
Engine brand
|
|
KOOP
|
|
|||
|
Rated power
|
|
8.6kw/3200r/min
|
|
|||
|
Displacement
|
|
0.499 L
|
|
|||
|
Main pump
|
|
single cylinder, fan cool
|
|
|||
|
Valve
|
|
BEIFANG
|
|
|||
|
Displacement
|
|
6.8ml/r
|
|
|||
|
Swing motor
|
|
SJ-TECH (MP-1-160)
|
|
|||
|
Traveling motor
|
|
KERSEN (OMS-2450)
|
|
|||
|
Main Specifications
|
|
|
|
|||
|
Overall dimension( LxWxH)
|
|
2480x720x1375 mm
|
|
|||
|
Total length of track on land
|
|
1140mm
|
|
|||
|
Platform ground clearance
|
|
80 mm
|
|
|||
|
Platform back turning radius
|
|
784 mm
|
|
|||
|
Chassis width
|
|
720mm
|
|
|||
|
Track width
|
|
150 mm
|
|
|||
|
Chassis ground clearance
|
|
132 mm
|
|
|||
|
Track height
|
|
320 mm
|
|
|||
|
Overall range
|
|
|
|
|||
|
Max. Digging depth
|
|
1200 mm
|
|
|||
|
Max. Vertical digging depth
|
|
1375 mm
|
|
|||
|
Max. Digging height
|
|
2350mm
|
|
|||
|
Max. Dumping height
|
|
1600 mm
|
|
|||
|
Max. Digging radius on ground
|
|
2450 mm
|
|
|||
|
Min. Rotation radius
|
|
1100 mm
|
|
|||
|
Max. Upgrade height of bulldozer blade
|
|
120mm
|
|
|||
|
Max. Digging depth of bulldozer blade
|
|
200 mm
|
|
|||

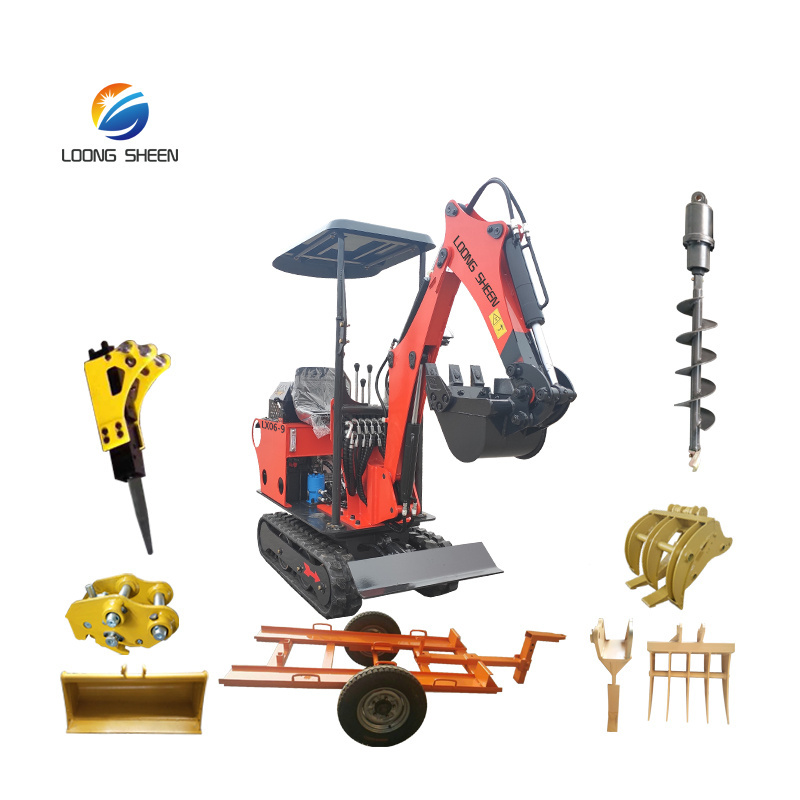

Mini excavator with swing boom .
Boom Swing angle right 45 left 50 degree Yellow red and orange color optinal
LX06-9 with canopy
LX06-9 simple model without swing boom
Main Features
Beautiful and simple design (Small body, make big difference !!!!!! )
The platform can rotate 360 degrees
More strong structure parts ,Custom thickened track(crawler), Custom high pressure cylinder, Thick double hydraulic hose , Powerful KOOP 7.6kw engine .
The minibagger can attach narrow bucket which can use for dig trench .wide bucket which can use for load and dig mud .
miniexcavator Rake ,miniexcavator auger ,excavator ripper,and excavator log grab and so on .
|
Packaging
|
|
|
|
Size
|
248 0(L) * 720 (W) * 1375 (D)
|
|
|
Weight
|
680kg
|
|
|
Packaging Details
|
One unit in Plywood wooden box
|
|
|
Packaging
|
|
|
|
Size
|
248 0(L) * 720 (W) * 1375 (D)
|
|
|
Weight
|
680kg
|
|
|
Packaging Details
|
6 unit in 20GP
12 Unit 40GP
|
|
