Quick Details
-
Screw Speed (rpm):
-
35 rpm
-
Place of Origin:
-
Shandong, China, Shandong, China
-
Brand Name:
-
KINTER
-
Voltage:
-
380V/220V/440V
-
Dimension(L*W*H):
-
35m*3m*2.5m
-
Power (kW):
-
200
-
Weight:
-
25000 KG
-
Application Field:
-
foam board
-
Color:
-
Client's Requirements
-
Inverter:
-
ABB
-
Cylinder diameter:
-
250mm
-
capacity:
-
16tons/24h
-
After-sales Service Provided:
-
turnkey service
-
Raw material:
-
raw material manufacturer
-
calibrator:
-
115mm thickness
-
Materials stock tank:
-
6000L
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
22:1
-
Screw diameter (mm):
-
80/156
-
Screw Speed (rpm):
-
35 rpm
-
Place of Origin:
-
Shandong, China, Shandong, China
-
Brand Name:
-
KINTER
-
Voltage:
-
380V/220V/440V
-
Dimension(L*W*H):
-
35m*3m*2.5m
-
Power (kW):
-
200
-
Weight:
-
25000 KG
-
Application Field:
-
foam board
-
Color:
-
Client's Requirements
-
Inverter:
-
ABB
-
Cylinder diameter:
-
250mm
-
capacity:
-
16tons/24h
-
After-sales Service Provided:
-
turnkey service
-
Raw material:
-
raw material manufacturer
-
calibrator:
-
115mm thickness
-
Materials stock tank:
-
6000L
Products Description
The test results of our company's PVC foam board production line show that the extrusion capacity of both double machine co extrusion and triple machine co extrusion can
reach 20T/24H
. The 80 machine frequency converter operates reliably and stably for a long time under the conditions of
44.7HZ, 131A current
, and
90.4%
torque.

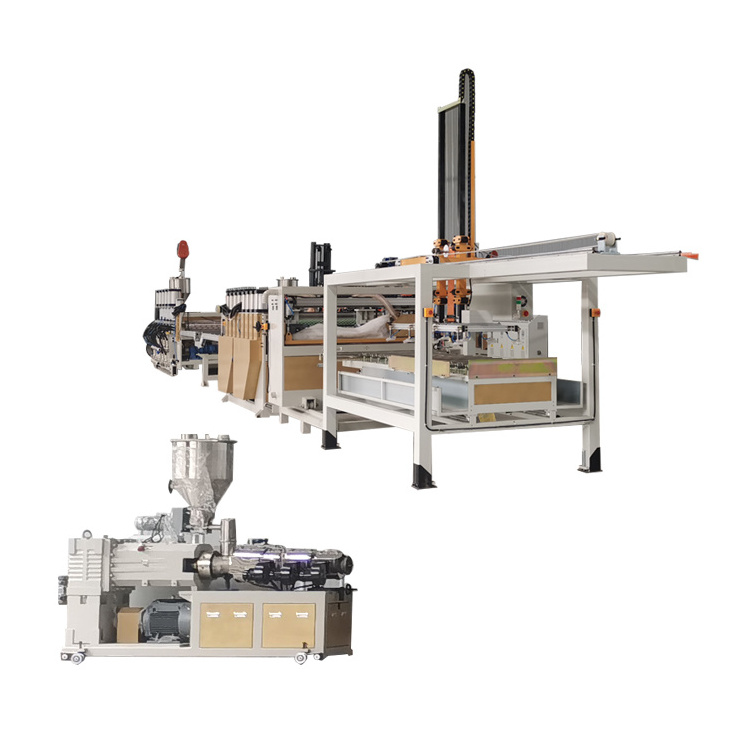

- Introduction of Heavy Loading PVC Foam Board Line -
we can use as single extruder, double extruders, three extruders to produce pvc foam board, celuka foam board, co-ex foam board.With width 1220mm, thickness 12-30mm
（1）Calibrator thickness 115mm, size: 1500*530*115mm. using water cooling,air cylinder diameter 250mm( air pressure 0.7MPA)
（2）using auxiliary haul off roller ( the only design by us)
（3）using two gearbox each 5.5kw for haul off machine
（4） PLC control system: Siemens
（5）Inverter: ABB
（6）Temperature controller: omron
（7）powder Lever indicator by Japan brand
（8）Combined core sensor designed
（9）screw and mould structure design by ourselves
（10）High speed heating mixer: 800L
（11） Cooling mixer: 2500L
（11） Cooling mixer: 2500L
（12）Materials stock tank: 6000L
（13）stacker
|
item
|
value
|
|
|
Screw diameter (mm)
|
80/156
|
|
|
Screw L/D Ratio
|
22:1
|
|
|
Screw Speed (rpm)
|
35rpm
|
|
|
Voltage
|
380V/220V/440V
|
|
|
Dimension(L*W*H)
|
24m*5m*2.5m
|
|
|
Power (kW)
|
200
|
|
|
Weight
|
26000KG
|
|
|
Warranty
|
1 Year
|
|
|
Core Components
|
Bearing, Motor, Gear, PLC, Gearbox, Screw
|
|
|
Cylinder diameter
|
250mm
|
|
|
calibrator
|
115mm thickness
|
|
|
Materials stock tank
|
6000L
|
|
|
|
||
Application
After-sale Service
1.The
guarantee period
is 1 year and service is available lifelong.
2.Our expert will answer any inquiry within
24-48 hours
and it will be solved as soon as possible.
3.The Seller supplies the complete
technical support documents
and the relative drawings of the electric components written in Chinese and English.
4.
The customer can send the engineer to our company with
training
.
5.The seller can send
enough technicians
to the Buyer’s company for installation and testing the lines.
