- Product Details
- {{item.text}}
Quick Details
-
Light Source:
-
LED
-
Lifespan (hours):
-
100000
-
Working Time (hours):
-
100000
-
Product Weight（kg）:
-
0.14
-
Input Voltage(V):
-
85-256VAC 50/60Hz
-
CRI (Ra):
-
100
-
Beam Angle(°):
-
360° in Horizontal Direction
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
sien
-
Products name:
-
Aviation Obstruction Light
-
Working mode:
-
Steady Burning
-
International standard:
-
ICAO(Aerodromes Annex 14)low Intensity Light
-
Visual Range:
-
>5km
-
Application:
-
Telecom Tower, Stack, Chimney ,Tower Crane, Building
-
Warranty Time:
-
3years
Quick Details
-
Warranty(Year):
-
3-Year
-
Color Temperature(CCT):
-
red
-
Lamp Body Material:
-
Aluminum Alloy
-
Light Source:
-
LED
-
Lifespan (hours):
-
100000
-
Working Time (hours):
-
100000
-
Product Weight（kg）:
-
0.14
-
Input Voltage(V):
-
85-256VAC 50/60Hz
-
CRI (Ra):
-
100
-
Beam Angle(°):
-
360° in Horizontal Direction
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
sien
-
Products name:
-
Aviation Obstruction Light
-
Working mode:
-
Steady Burning
-
International standard:
-
ICAO(Aerodromes Annex 14)low Intensity Light
-
Visual Range:
-
>5km
-
Application:
-
Telecom Tower, Stack, Chimney ,Tower Crane, Building
-
Warranty Time:
-
3years
Introduction
Aircraft warning lights
are high-intensity lighting devices that are attached to tall structures and are used as collision avoidance measures. Such devices make structures more visible to passing aircraft and are usually used at night, although they may be used during the day as well. These lights need to be of sufficient brightness in order to be visible for miles around the structure.
The light we produce is maintenance-free, complying with
ICAO and FAA international standards
.This light can be used for marking obstacles which pose a threat to aircraft, such as telecom towers, buildings, wind turbines, power transmission towers, airports and general aviation warning purposes.
Specification
|
Main Specification
|
|
|
|
Product
|
Single Low Intensity Bulb
|
|
|
Intensity
|
>10cd; >32.5cd
|
|
|
Visible Range
|
>5Km
|
|
|
Light Source
|
Cree High Power LED
|
|
|
Light Color
|
Aviation Red
|
|
|
Power
|
2W,3W
|
|
|
Waterproof
|
IP23
|
|
|
Operating Voltage
|
110~240VAC
|
|
|
Warranty
|
5 years
|
|
Products Description
|
Product Details

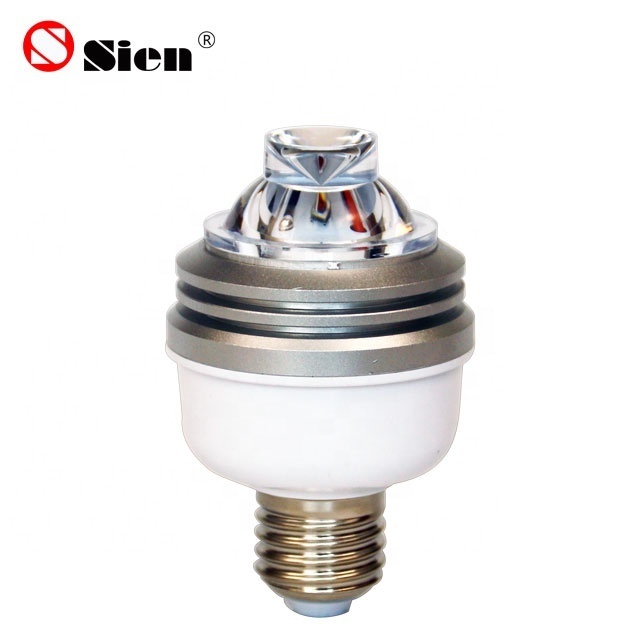

LIBxxS is E27 aviation bulb that is especially designed for SIEN LILxxS obstruction lights. Its basement is E27 screw. It is quite easy for replacement in case any bulb fails. The intensity of this bulb can be 10cd or 32.5cd. It can be used for SIEN LILxxS obstruction light or replacement of common bulb (incandescent bulb). Its advanced high-power LED with optimized optical design is able to minimal power consumption and maximizes light intensity based on only one single LED, which 90% energy saving comparing to incandescent lighting. Meanwhile increasing safety thanks to low failure LED technology.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Its advanced high-power LED with optimized optical design is able to minimal power consumption and maximize light intensity based on only one single LED. Energy saving compare to incandescent lighting technology. Meanwhile increasing safety thanks to low failure LED technology. Our LED obstruction light offer an ultra bright,energy efficiency, reliability and freedom from maintenance mean that our light will save you money over time!
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Features
➢
Cree LED, 100,000 hours lifetime.
➢
One single LED and lens can reach optical requirements, and reduce light pollution so as to improve light efficiency.
➢
It is driven by LED constant current to extend LED life.
➢
Very low power consumption, saving energy.
➢
E27 bulb basement. It is easy for installation/replacement. Free of maintenance.
➢
Body materials: aluminum + ABS.
➢
Resistant to shock and vibrations.
➢
Available in universal AC: will accept between 110-240VAC .
|
Specification
|
|
|
||
|
Light model
|
LIB10S
|
LIB32S
|
||
|
Light source
|
Cree LED
|
Cree LED
|
||
|
Intensity
|
>10cd
|
>32.5cd
|
||
|
Visible Range
|
>3.5km
|
>5km
|
||
|
Horizontal Output(degree)
|
360
|
360
|
||
|
Vertical Output(degree)
|
10
|
10
|
||
|
LED color
|
Red as standard.Other colors available on request.
|
Red as standard.Other colors available on request.
|
||
|
Electrical characteristics
|
|
|
||
|
Operating voltage
|
110~240VAC
|
110~240VAC
|
||
|
Power consumption
|
2W
|
3W
|
||
|
Driven mode
|
Constant current
|
Constant current
|
||
|
Mechanical characteristics
|
|
|
||
|
Body Material
|
Aluminum
|
Aluminum
|
||
|
Housing Material
|
PC UV Stabilize
|
PC UV Stabilize
|
||
|
Weight
|
0.14KG
|
0.14KG
|
||
|
Dimension
|
See diagram
|
See diagram
|
||
|
Lamp holder
|
E27
|
E27
|
||
|
Working temperature
|
‐40˚C+70˚C
|
‐40˚C+70˚C
|
||
|
Humidity
|
10% ~95%
|
10% ~95%
|
||
|
Wind speed
|
Up to 150mph(240kph)
|
Up to 150mph(240kph)
|
||
|
Waterproof
|
IP23
|
IP23
|
||
Product Applications
