Quick Details
-
Brand Name:
-
SNAF
-
Dimension(L*W*H):
-
592*592*292mm
-
Weight:
-
6.6 KG
-
Type:
-
V-Bank Filter
Quick Details
-
Core Components:
-
glass fiber
-
Efficiency:
-
F9
-
Place of Origin:
-
China
-
Brand Name:
-
SNAF
-
Dimension(L*W*H):
-
592*592*292mm
-
Weight:
-
6.6 KG
-
Type:
-
V-Bank Filter
Products Description
Title goes here.

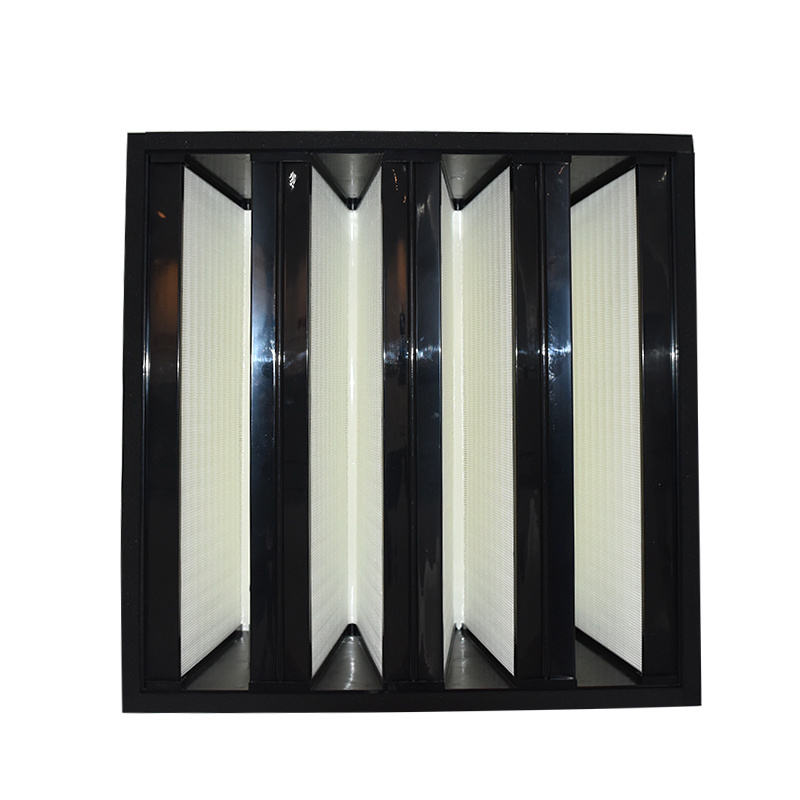

The V type high efficiency filter is also called the W type high efficiency filter. Adopt without separator design, form “V” or "W" font structure. Made of ultra-fine glass fiber with low resistance, compact structure, large effective filtering area, can be operated at high wind speed, suitable for the end of air supply equipment, negative-pressure end of exhaust air purification system and ventilation duct.
Frame: Polypropylene or Galvanized sheet metal
Separators: Hot melt
Media: Wet-laid Glass fiber
Sealant: Polyurethane
Temperature: ≤70℃
Humidity: ≤100%RH
Efficiency: F6 (EN779):60-65%ASHRAE52/76
F7 (EN779):90%ASHRAE52/76
F8 (EN779):95%ASHRAE52/76
F9 (EN779):98%ASHRAE52/76
Recommended final pressure drop: ≤600Pa
Separators: Hot melt
Media: Wet-laid Glass fiber
Sealant: Polyurethane
Temperature: ≤70℃
Humidity: ≤100%RH
Efficiency: F6 (EN779):60-65%ASHRAE52/76
F7 (EN779):90%ASHRAE52/76
F8 (EN779):95%ASHRAE52/76
F9 (EN779):98%ASHRAE52/76
Recommended final pressure drop: ≤600Pa
Specification
Applications
Clean room recirculation and MAU applications for AMC removal
