Quick Details
-
Cutting Thickness:
-
0-30mm
-
Control Software:
-
Cypcut
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Prima
-
Weight (KG):
-
5000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Product name:
-
Exchange worktable Rotary Tube Lasercut cnc fiber laser cutting
-
Keyword:
-
Exchange worktable Rotary Tube Lasercut cnc fiber laser cutting
-
Laser power:
-
1000W / 2000W / 3000W/6000W
-
Function:
-
Cutting Metal Materials
-
Name:
-
Exchange worktable Rotary Tube Lasercut cnc fiber laser cutting
-
Color:
-
Required
-
Type:
-
Fiber Lasr Cutting
-
Model:
-
Processing Metal
-
working Area:
-
3000*1500 mm 6000*1500mm 4000*2000mm 6000*2000mm
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
0-60000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Cutting Thickness:
-
0-30mm
-
Control Software:
-
Cypcut
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Prima
-
Weight (KG):
-
5000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Product name:
-
Exchange worktable Rotary Tube Lasercut cnc fiber laser cutting
-
Keyword:
-
Exchange worktable Rotary Tube Lasercut cnc fiber laser cutting
-
Laser power:
-
1000W / 2000W / 3000W/6000W
-
Function:
-
Cutting Metal Materials
-
Name:
-
Exchange worktable Rotary Tube Lasercut cnc fiber laser cutting
-
Color:
-
Required
-
Type:
-
Fiber Lasr Cutting
-
Model:
-
Processing Metal
-
working Area:
-
3000*1500 mm 6000*1500mm 4000*2000mm 6000*2000mm

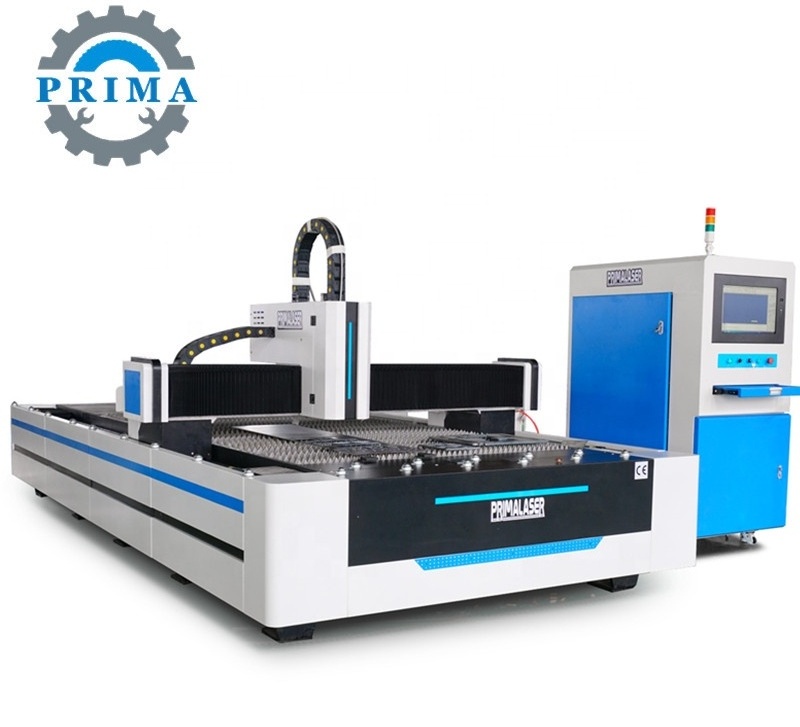

Prima 3kw 1.5kwplate fiber laser cutting machine 3000w Exchange worktable Rotary Tube Lasercut cnc fiber laser cutting machines
Machine table Features :
1.Gantry dual drive, adopting advanced gear rack transmission structure. Equipped with grinding gear and rack, and through the precision collimator one time metering assembly. The machine will secure long-term high cutting speed, high precision transmission.
2 , The machine table machined by large planomiller, with high temperature annealing twice, and high strength complete welding, customer will have long-term payback.
3, Applicable materials: stainless steel, carbon steel, alloy steel, spring steel, aluminum, silver, copper, titanium and some metal plate and pipe.
4, Applicable industries: Glasses,jewelry,kitchen ware,chassis and cabinet,metal pipe,lamp&lanterns,metal ware,hardware,precision machinery,auto parts,elevator,nameplate,advertisement,electronics,toys and other industries. metal fiber metal laser cutting machine for 1mm 2mm 3mm 5mm 6mm Stainless Steel 500w 5mm carbon steel fiber laser cutting machine cnc auto focus laser cutter
Technical Specifications, we can also make model according to customer request:
|
Item |
Model |
|||
|
PM 40 15 |
P M3015 |
P M4020 |
||
|
Effective size(mm) |
40 00*1500 |
3000*1500 |
4000*2000 |
|
|
Max process height(mm) |
90 |
|||
|
Effective stroke |
X axis(mm) |
4 550 |
3050 |
4050 |
|
Y axis(mm) |
1550 |
1550 |
2050 |
|
|
Z axis(mm) |
100 |
|||
|
Position accuracy |
X axis(mm/m) |
0.03 |
||
|
Y axis(mm/m) |
0.03 |
|||
|
Z axis(mm/m) |
0.01 |
|||
|
Repeated accuracy |
X axis(mm) |
0.02 |
||
|
Y axis(mm) |
0.02 |
|||
|
Z axis(mm) |
0.005 |
|||
|
Fast positioning Speed |
X axis(m/min) |
80 |
||
|
Y axis(m/min) |
80 |
|||
|
Z axis(m/min) |
30 |
|||
|
Max cutting speed |
30m/min |
|||
|
Max cutting thickness |
depends on laser power |
|||
|
Power consumption |
depends on laser power |
|||
|
Protection level |
IP54 |
|||
|
Machine weight (Ton) |
4 . 9 |
4 .5 |
5 . 3 |
|
|
Size L*W*H(mm) |
58 20* 22 85*1346 |
4 5 16*2 220 *1346 |
5628*2950*1346 |
|
Cutting thickness chart:
(1) 36 months quality guaranty
(2) free lifetime maintenance
(3) free training course in our factory.
(4) 18 hours on line service each day
(5) Strict quality control,3 times of testing
(6) engineers avaiable to go abroad
