Quick Details
-
Dimension(L*W*H):
-
Depend
-
Name:
-
H Beam Shot Blasting Machine
-
Application:
-
Large Metal Blasting
-
Color:
-
Blue
-
Quantity of shot-blasting:
-
88*220kg/min
-
Quality requirement:
-
Sa2.5, Ra15-50
-
Shot blasting speed:
-
65-70m/s
-
Length:
-
3000-15000mm
-
Shot blasters numbers:
-
6 or 8 or as you request
-
Workpiece width:
-
height: ≤800*1600mm
-
Certification:
-
ce
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Zhouxiang
-
Weight (KG):
-
25000 KG
-
Dimension(L*W*H):
-
Depend
-
Name:
-
H Beam Shot Blasting Machine
-
Application:
-
Large Metal Blasting
-
Color:
-
Blue
-
Quantity of shot-blasting:
-
88*220kg/min
-
Quality requirement:
-
Sa2.5, Ra15-50
-
Shot blasting speed:
-
65-70m/s
-
Length:
-
3000-15000mm
-
Shot blasters numbers:
-
6 or 8 or as you request
-
Workpiece width:
-
height: ≤800*1600mm
-
Certification:
-
ce

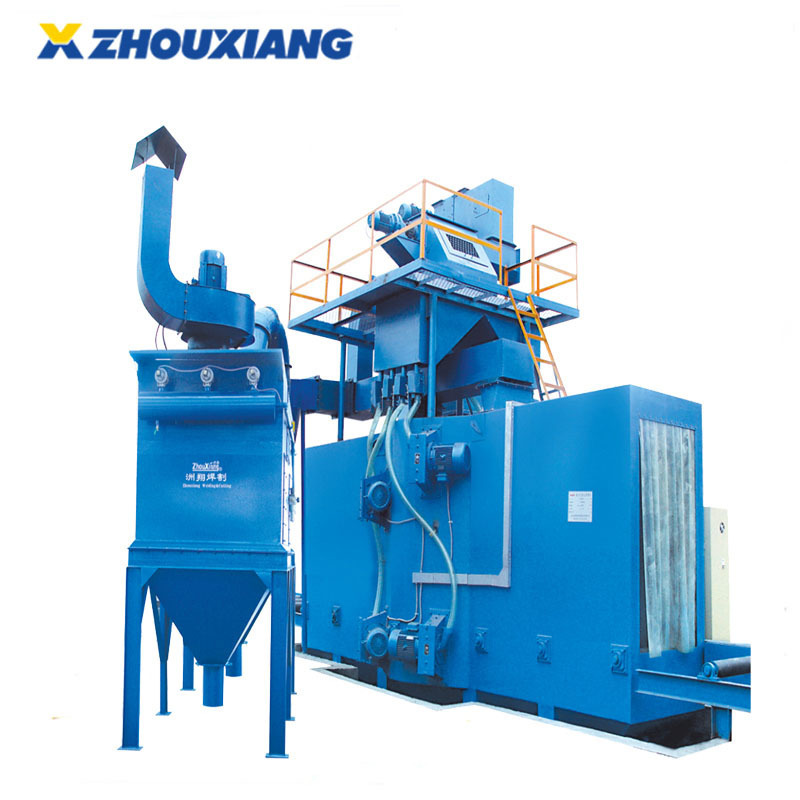

Steel Structure Rust Removal H Beam Shot Blasting Machine
Shot-blasting machine is applied to clean the surface of steel structure welding work-piece, H-style steel, plate and other profiles. It can clean away rusty spot, rusty scale, welding slag on the work-piece surface, as well as welding stress, in order to remove stress and improve surface lacquer quality andanti-corrosion of steel structure and metal.This shot blasting machine is equipped with automatic fault detection and alarming, has the function of time-delay and automatic stop running after alarming. Plate thickness of shot blasting area is ≥12mm, also layed with high interchanged Mn13 protective plate, which has more than 3 years of service life.
|
Model |
HGP0816 |
HGP1018 |
HGP1220 |
|
Width × height of work-piece |
800 × 1600mm |
1000 × 1600mm |
1200 × 2000mm |
|
Length of work-piece |
3000~12000mm |
3000~15000mm |
3000~15000mm |
|
Quantity of Shot blaster |
8 |
8 |
8 |
|
Allowable load of conveyor |
1000kg/m |
1000kg/m |
1000kg/m |
|
Conveying speed |
0.5~5m/min |
0.5~5m/min |
0.5~5m/min |
|
Air volume for dust removal |
12000m3/h |
12000m3/h |
12000m3/h |
|
Circulation quantity of grinding shots |
120t/h |
120t/h |
120t/h |
|
External dimension of main machine (L × W × H) |
6770 × 2100 × 2900mm |
7200 × 2300 × 3250mm |
7200 × 2520 × 3650mm |
|
Depth of pit |
1950mm |
1950mm |
1820mm |
|
Total power |
135kW |
140kW |
140kW |
|
Above are our standard model, it can be designed and manufactured according to customer ’ s request. |
|||
Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including Europe,America,Southeast Asia,Middle East and other countries.
Zhouxiang products mainly include CNC flame/plasma cutting machine,H beam light duty production line,H beam heavy duty production line,Horizontal H beam production line,H beam assembly welding straightening integral machine,Corrugated web H beam production line,Box beam production line, Welding manipulator, Rotator, Positioner,Edge milling machine,End face milling machine,Shot blasting machine series,kinds of plate rolling machine,Profile bending machine and welders,fiber laser cutting machine,CO2 laser cutting machine,laser tube cutting machine,Fiber laser cutting robot and Fiber laser welding robot etc.
We have high sincerity to do business with customers all over the world and establish good friendships.
|
Trade Information |
|
|
Trade Terms: |
FOB,CIF,CFR,EXW |
|
Payment terms: |
T/T,L/C |
|
Payment Condition: |
30% T/T as deposit, 70% balance before delivery |
|
Delivery Time: |
20-60 days after receiving deposit |
|
Packing: |
In naked, wooden case, steel frame, export packing |
|
Shipping: |
By sea, by air and by express delivery |
1. All of our machines warranty for one year.
2. Our technician can offer free training in our workshop, welcome to visit our factory.
3. Our technicians can offer online training and service directly to you.
4. Our technicians can go to your place and offering service or training, but need you to bear all charges.
