Quick Details
-
Product Name:
-
tripod turnstile mechanism
-
Application:
-
tripod turnstile
-
Material:
-
304 Stainless Steel
-
Warranty:
-
1year
-
life:
-
over 5 years
-
Type:
-
Automatic motor /semi-automatic motor
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZENTO
-
Model Number:
-
ZT-301
-
Product Name:
-
tripod turnstile mechanism
-
Application:
-
tripod turnstile
-
Material:
-
304 Stainless Steel
-
Warranty:
-
1year
-
life:
-
over 5 years
-
Type:
-
Automatic motor /semi-automatic motor

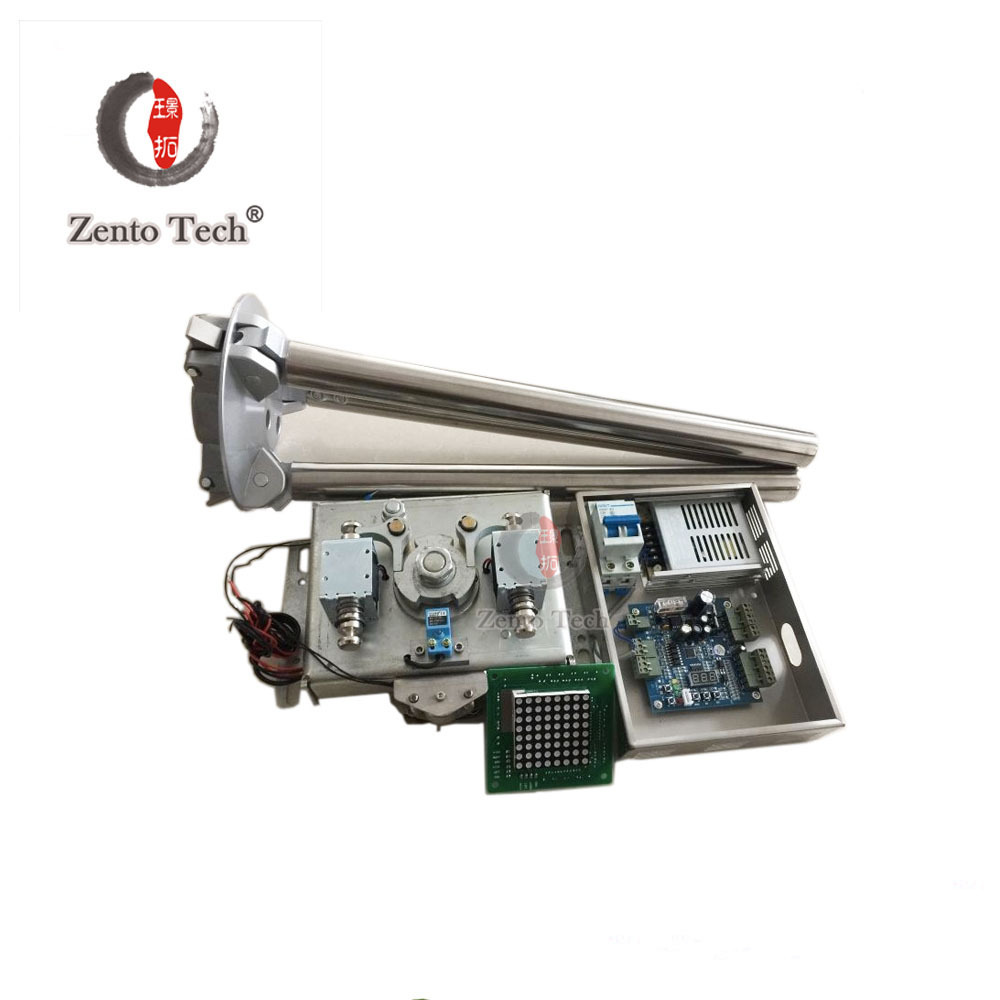

Security access control tripod turnstile mechanism
Tripod Turnstiles Definition:
A tripod turnstile is a waist high access control turnstile with three revolving arms. Tripod turnstiles restrict access to one person at a time with a set of rotating tripod barrier arms. These half height turnstile gates have traditionally been the most popular type of turnstile.
Variations: Manual and Electronically operated
Tripod turnstiles can vary in functionality. They can operate manually or with added electronics for locking and card reader access. Further, these turnstiles can be configured to allow access in a single direction or bi-directionally depending on project needs. Tripod access control turnstiles can also vary in appearance with different finishes like powder coating and stainless steel .
Functions:
|
Functions and features |
full-auto |
semi-auto |
manual |
|
1, Malfunction self-check and alarm reminder, ease of maitenance and use |
√ |
× |
× |
|
2, Running method can be set through small buttons on the control panel |
√ |
√ |
× |
|
3, How arm reacts in emergency |
drop automatically |
drop automatically |
no movement |
|
4, How arm reacts when power on |
go up automatically |
go up by hand |
no movement |
|
5, Self-reset. pass right will be cancelled if people do not go through within a set time, the default time is 10s ( 0-60 adjustable) |
√ |
√ |
× |
|
6, Compatible for access control system, consumption system, E-ticekt system, biometric system, ESD system and so on |
√ |
√ |
× |
|
7, Unique positioning, self reset, one arm always in the horizontal level |
√ |
√ |
× |
|
8, LED lamp indicator |
√ |
√ |
× |
|
9, when open signal is given, arm rotate to a certain degree |
√ |
× |
× |
|
10, how arm reacts when people passing |
rotate automatically |
push by hand |
push by hand |
|
11, one direction or bi-direction flow control |
√ |
√ |
adjust by hand |
|
12, work directly with PC for remote control and management |
√ |
√ |
× |
|
1 3 , Bi-direction Anti reverse rotation |
√ |
√ |
× |
