Quick Details
-
Model Number:
-
Marble cutting tools
-
Product name:
-
Diamond Segment
-
Application:
-
Cutting Marble
-
Material:
-
WC+CO
-
Usage:
-
Wet Cutting
-
Keywords:
-
Diamond cutting tips
-
Advantage:
-
High Wear Resistance
-
Color:
-
Customized Color
-
Machine:
-
Bridge Saw
-
Certification:
-
ISO9001:2008
-
Grade:
-
A-Grade
Quick Details
-
Warranty:
-
None
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
LINSING
-
Model Number:
-
Marble cutting tools
-
Product name:
-
Diamond Segment
-
Application:
-
Cutting Marble
-
Material:
-
WC+CO
-
Usage:
-
Wet Cutting
-
Keywords:
-
Diamond cutting tips
-
Advantage:
-
High Wear Resistance
-
Color:
-
Customized Color
-
Machine:
-
Bridge Saw
-
Certification:
-
ISO9001:2008
-
Grade:
-
A-Grade

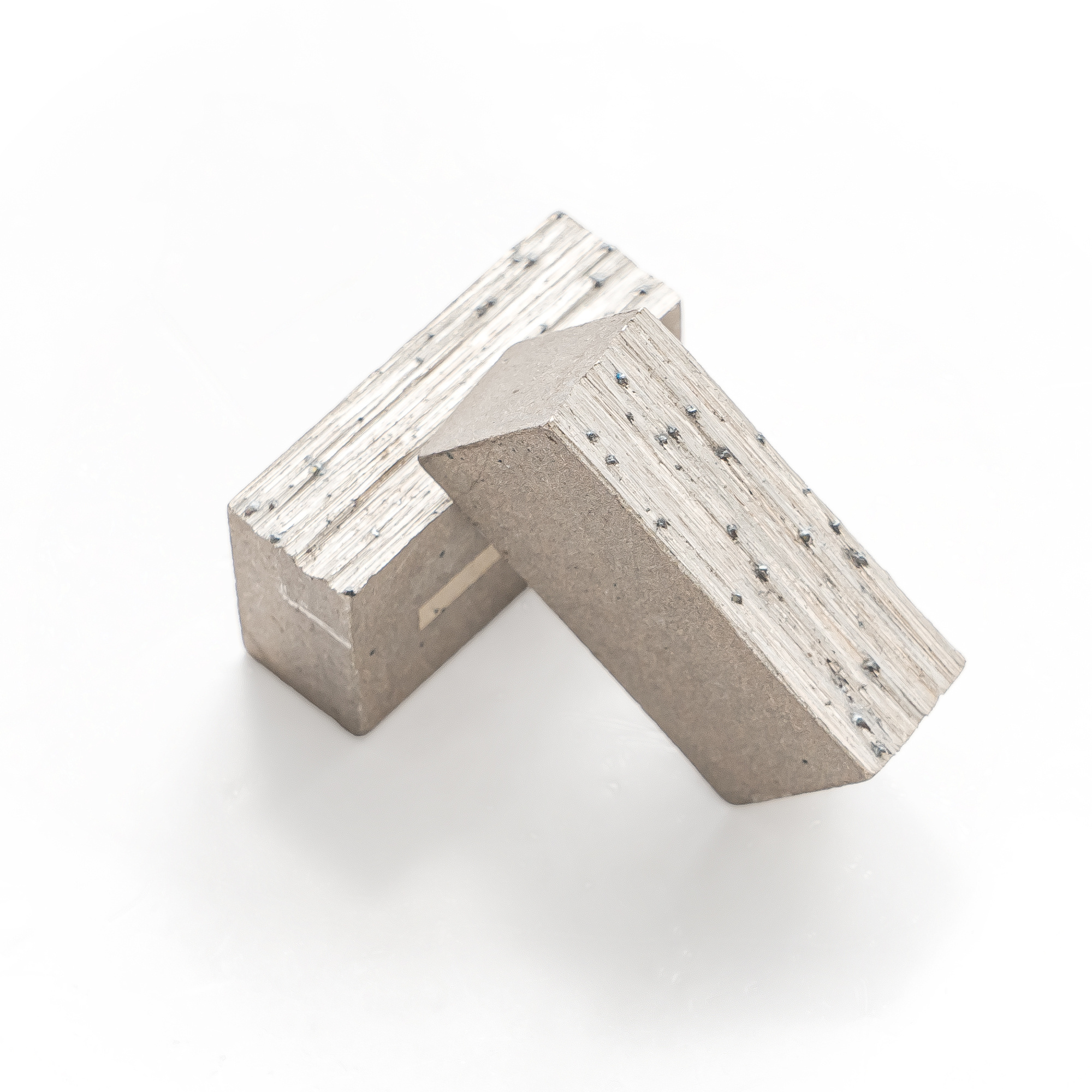

Diamond Segment For Marble Cutting
Product Features:
1. Good sharpness and high efficiency without chipping;
2. Strict QC for stable cutting performance;
3. Long lifespan with high cost-effective;
4. Segment is easy for opening.
Product Specification:
|
Blade Diameter(inch/mm) |
Steel Core Thickness(mm) |
Segment Specification(mm) |
Segment No.(pcs) |
|
Φ12”/300 |
2.2 |
42/40x3.2x8(10,12,15) |
22 |
|
Φ14”/350 |
2.2/2.4 |
42/40x3.4x8(10,12,15) |
25 |
|
Φ16”/400 |
2.6 |
42/40x3.6x8(10,12,15) |
29 |
|
Φ18”/450 |
2.8/3.0 |
40x4x8(10,12,15) |
32 |
|
Φ20”/500 |
3.0/3.2 |
40x4.2x8(10,12,15) |
35 |
|
Φ24”/600 |
3.6/3.8 |
40x5x8(10,12,15) |
42 |
|
Φ28”/700 |
4 |
40x5.2x8(10,12,15) |
50 |
|
Φ32”/800 |
4.5 |
40x6x8(10,12,15) |
57 |
|
Φ36”/900 |
5.0 |
24x7.5x8(10,12,13,15) |
64 |
|
Φ40”/1000 |
5.0 |
24x7.5x8(10,12,13,15) |
70 |
|
Φ48”/1200 |
5.5 |
24x8.0x8(10,12,13,15) |
80 |
|
Φ52”/1300 |
6.0 |
24x8.5x8(10,12,13,15) |
88 |
|
Φ56”/1400 |
6.5 |
24x9.0x8(10,12,13,15) |
92 |
|
Φ64”/1600 |
7.2 |
24x9.2x8(10,12,13,15) |
108 |
|
Φ72”/1800 |
7.5 |
24x10x8(10,12,13,15) |
120 |
|
Φ80”/2000 |
8.0 |
24x10.5x8(10,12,13,15) |
128 |
|
Φ88”/2200 |
8.0/9.0 |
24x11x8(10,12,13,15) |
132 |
|
Φ100”/2500 |
9.0 |
24x11x8(10,12,13,15) |
140 |
|
Φ120”/3000 |
9.5 |
24x12x8(10,12,13,15) |
160 |
|
Φ140”/3500 |
9.5 |
24x12x8(10,12,13,15) |
180 |
Other specifications are available upon request.
