Quick Details
-
Product name:
-

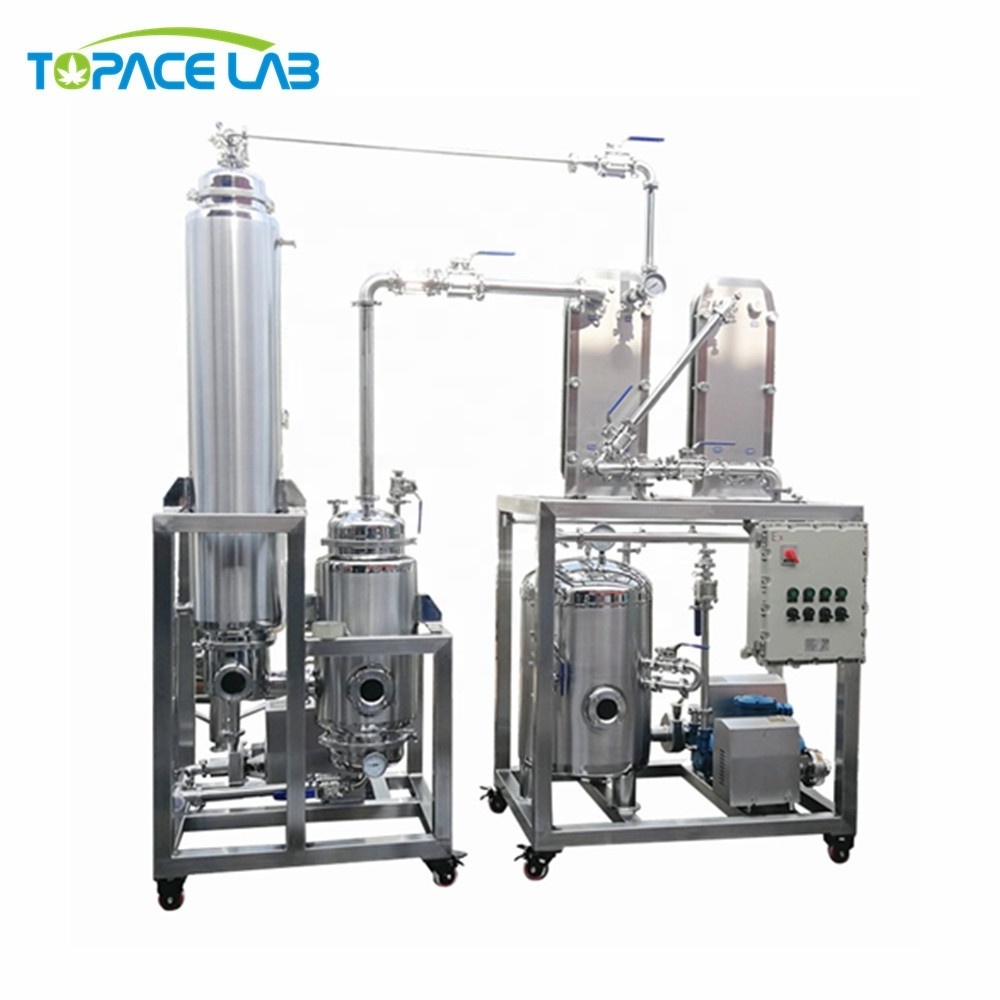

200L Falling Film Evaporator
-
Evaporation Rate:
-
200L/hr
-
Feeding Pump:
-
Centrifugal pump, 0.55kw,explosion-proof
-
Crude Oil Collection Pump:
-
Centrifugal pump, 0.75kw,explosion-proof
-
Ethanol Collection Pump:
-
Centrifugal pump, 0.75kw,explosion-proof
-
vacuum pump Power:
-
1.45kw,explosion-proof
-
Height:
-
Around 2.75m
-
Total Weight:
-
1300kg
-
Electricity:
-
220V or Customizable
-
Material:
-
Stainless Steel 304
Quick Details
-
Weight (KG):
-
1000
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Topacelab
-
Product name:
-
200L Falling Film Evaporator
-
Evaporation Rate:
-
200L/hr
-
Feeding Pump:
-
Centrifugal pump, 0.55kw,explosion-proof
-
Crude Oil Collection Pump:
-
Centrifugal pump, 0.75kw,explosion-proof
-
Ethanol Collection Pump:
-
Centrifugal pump, 0.75kw,explosion-proof
-
vacuum pump Power:
-
1.45kw,explosion-proof
-
Height:
-
Around 2.75m
-
Total Weight:
-
1300kg
-
Electricity:
-
220V or Customizable
-
Material:
-
Stainless Steel 304
Products Description
Falling film evaporation is to add the feed liquid from the upper tube box of the heating chamber of the falling film evaporator, and distribute it evenly into each heat exchange tube through the liquid distribution and film forming device. Under the influence of gravity and vacuum induction and air flow, it forms a uniform film. Flow up and down. During the flow process, it is heated and vaporized by the shell-side heating medium, and the generated steam and liquid phase enter the separation chamber of them evaporator together. After the vapor and liquid are fully separated, the steam enters the condenser to condense (single-effect operation) or enters the next-effect evaporator as The medium is heated to achieve multi-effect operation, and the liquid phase is discharged from the separation chamber.
Falling film evaporator is widely used in the evaporation and concentration area, such as organic solvent recovery solutions in the pharmaceutical, food, chemical, light industry and other industries. It's perfect evaporation machine for heat-sensitive materials. The equipment is continuously operated under vacuum and low temperature conditions. With high evaporation capacity, energy saving and low consumption, low operating costs, it can ensure the invariability of
materials during the evaporation process.
It consi sts of single-effect heater, single-effect evaporative separator, condenser, vacuum pump, feed pump, circulating disch arge pump, condensate pump, control box, stainless steel support, pipelines and valves.
It consi sts of single-effect heater, single-effect evaporative separator, condenser, vacuum pump, feed pump, circulating disch arge pump, condensate pump, control box, stainless steel support, pipelines and valves.
Product Paramenters
|
Model
|
FFE-100L
|
FFE-200L
|
FFE-300L
|
FFE-500L
|
|||
|
Evaporation Rate
|
100L/hr
|
200L/hr
|
300L/hr
|
500L/hr
|
|||
|
Feeding Pump
|
Flow:1m³/h,
Lift:14m, Power:0.55kw,explosion-proof |
Flow:1m³/h,
Lift:18m, Power:0.55kw,explosion-proof |
Flow:1m³/h,
Lift:18m, Power:0.75kw,explosion-proof |
Flow:2m³/h,
Lift:24m, Power:1.5kw,explosion-proof |
|||
|
Circulating Pump
|
Flow:1m³/h,
Lift:16m, Power:0.75kw,explosion-proof |
Flow:1m³/h,
Lift:18m, Power:0.75kw,explosion-proof |
Flow:1m³/h,
Lift:18m, Power:1kw,explosion-proof |
Flow:3m³/h,
Lift:24m, Power:1.5kw,explosion-proof |
|||
|
Condensate pump
|
Flow:1m³/h,
Lift:16m, Power:0.75kw,explosion-proof |
Flow:1m³/h,
Lift:18m, Power:0.75kw,explosion-proof |
Flow:1m³/h,
Lift:18m, Power:1kw,explosion-proof |
Flow:2m³/h,
Lift:24m, Power:1.5kw,explosion-proof |
|||
|
Vacuum pump
|
Model:2BV-2060
Max pumping speed:0.45 m2/min, Ultimate vacuum:-0.097MPa, Motor power:0.81kw,explosion-proof Speed:2880r.min, Working fluid flow:2L/min, Noise:62dB(A) |
Model:2BV-2061
Max pumping speed:0.86 m2/min, Ultimate vacuum:-0.097MPa, Motor power:1.45kw,explosion-proof Speed:2880r.min, Working fluid flow:2L/min, Noise:65dB(A) |
Model:2BV-2071
Max pumping speed:1.83 m2/min, Ultimate vacuum:-0.097MPa, Motor power:3.85kw,explosion-proof Speed:2860r.min, Working fluid flow:4.2L/min, Noise:72dB(A) |
Model:2BV-5110
Max pumping speed:2.75 m2/min, Ultimate vacuum:-0.097MPa, Motor power:4kw,explosion-proof Speed:1450r.min, Working fluid flow:6.7L/min, Noise:63dB(A) |
|||
|
Height
|
Around 2.53m
|
Around 2.75m
|
Around 4.3m
|
Around 4.6m
|
|||
|
Electricity
|
220V/380V(Customizable)
|
|
|
|
|||
Details Images
High recovery rate, plate heat exchanger for higher condensation efficiency, the recover rate is around 97.5%.
100L and 200L falling film evaporatir are one
plate heat exchanger
,
300L and 500L are two
plate heat exchangers.
Sight-glasses to observe material situation during evaporation process.
Real-time monitoring: vacuum gauge, thermometer.
This machine is explosion-proof.
We can make the voltage into 220V three-phase, 380V three-phase, 460V three-phase according to your needs.
Alcohol is flammable and explosive, making the machine explosion-proof can greatly improve the safety of the machine and the operator.
The entire system can run continuously, the feeding pump automatically feeds, ethanol vapor will be pumped by vacuum and condensed by plate heat exchanger, crude oil will be collected by the collection pump, the discharge pump continuously discharges, continuous feeding and recycling, saving labor and operation cost.
100% turnkey solution.
We also provide the match equipment, circulating
water chiller
and heater.
Take 100L falling film as an example.
Heater model:
|
Model
|
|
LRV-25020
|
|
|
Temp range
|
|
50℃～200℃
|
|
|
control
|
|
LCD display set temperature and measured temperature, touch key input
|
|
|
Temperature control object
|
|
Thermal oil outlet temperature control
|
|
|
Temperature feedback
|
|
PT100
|
|
|
Heating power
|
|
25.0KW
|
|
|
Circulating pump
|
|
Max110L/min 2.5bar
|
|
|
Tank volume
|
|
65L
|
|
|
Interface size
|
|
DN25
|
|
|
Safety protection
|
|
With self-diagnosis function; phase sequence protection, sensor temperature difference protection; anti-dry protection and over-temperature protection, thermal protection and other security functions.
|
|
|
Closed Circulation System
|
|
The entire system is a fully closed system. There will be no oil mist at high temperatures and no moisture in the air at low temperatures. The system will not increase the pressure due to high temperatures during operation, and the low temperature will automatically supplement the heat transfer medium.
|
|
|
Size
|
|
600*600*1250
|
|
|
Voltage
|
|
220V(customizable)
|
|
Water chiller model：
|
Model
|
DLSB-12
|
|
|
|
Cooling capacity
|
35kW
|
|
|
|
Power source
|
380/3/50 V/ph/Hz
|
|
|
|
Gross power
|
10.5kW
|
|
|
|
Rated current
|
21A
|
|
|
|
Compressor
|
Type
|
Scroll type
|
|
|
|
Power
|
4.5*2KW
|
|
|
|
Quantity
|
2 net
|
|
|
Condenser
|
Type
|
Efficient inner fin coil type
|
|
|
|
Max. pressure
|
3.5 MPa
|
|
|
|
Fan type
|
The efficiency and low noise outer rotor fan
|
|
|
|
Fan quantity
|
2 net
|
|
|
Evaporator
|
Type
|
Shell and tube type
|
|
|
|
Tank volume
|
155L(Cylindrical)
|
|
|
|
Temp. range
|
5-30℃(Customizable)
|
|
|
|
Water flow rate
|
40L/min
|
|
|
|
Pipe size
|
40DN
|
|
|
|
Water Max. pressure
|
1.5 MPa
|
|
|
Pump
|
Type
|
Stainless steel centrifugal type
|
|
|
|
Power
|
1KW
|
|
|
|
Head
|
27m
|
|
|
Refrigerant
|
Type
|
R22
|
|
|
|
Throttling type
|
Capillary
|
|
|
Protector
|
Pressure、0verload、Anti-freeze、Delay、Over-temperature、Flow
|
|
|
|
Noise lever
|
65dB(A)
|
|
|
|
Unit weight
|
350kg
|
|
|
|
Dim.L*W*H
|
1710*795*1490MM
|
|
|
