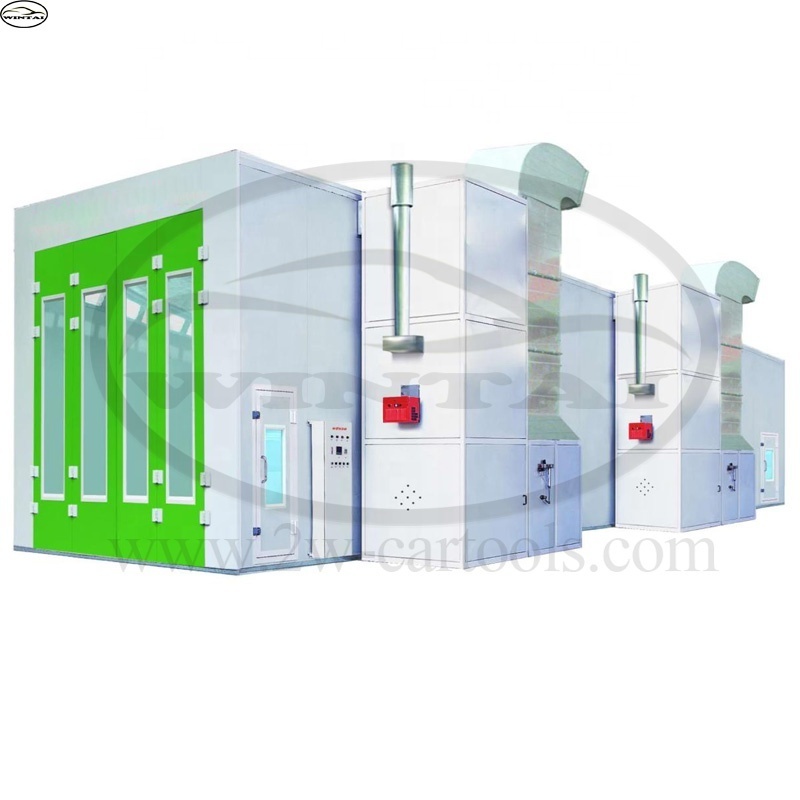

CE Industrial truck bus spray painting booth with diesel burner Outdoor spray oven

Wallboard: Fire-retardant composite molding Sandwich style EPS (epispastics polystyrene) (Rock wool and PU are optional ) 75mm thickness; EPS foam Density is 14kg/m³. The Colorful steel skin boards have been HDG(hot dip galvanizing). High quality galvanized steel roof panel.

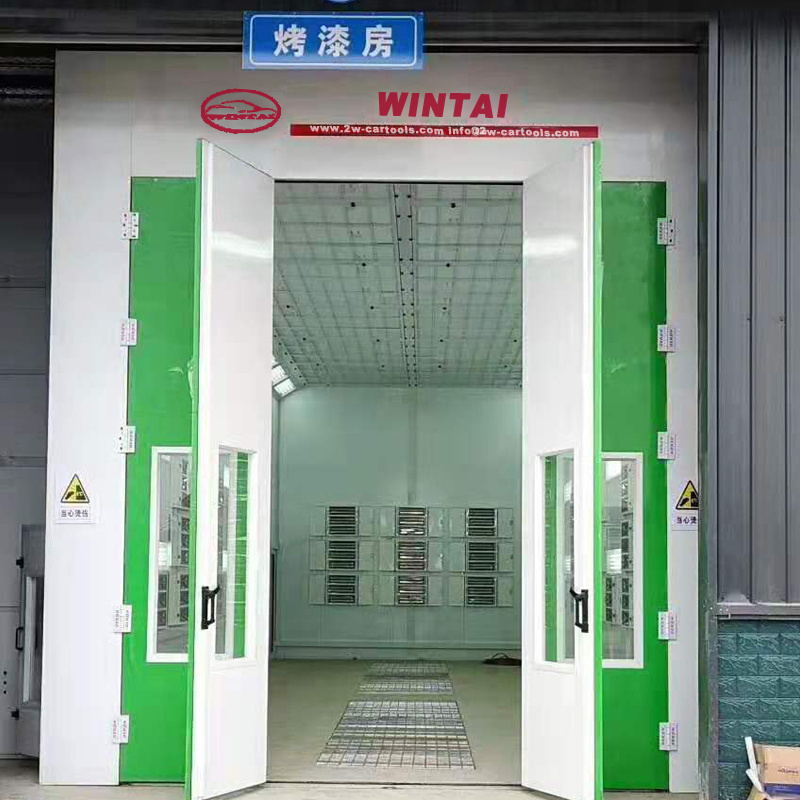

Door: 4 pcs of front doors with aluminum bordure. Size: 4000*5000(mm)(W*H). 2 pc of emergency doors 650*1800mm(W*H)/pc.
Intake Fan(2groups): 1 set of 11kw intake fan/per group, total 2 units of 11kw intake fans. BELIMO 20N electric damper. S.iemens technology production, large air volume and low noise. Air flow:60,000m3/h.
Exhaust Fan(2rgoups): 1 set of 11kw exhaust fan/per group, total 2sets of 11kw exhaust fans, Air flow:60,000m3/h.
Filtering: Multilayer filtering structure. The primary filter can capture granules larger than10μm. Ceiling filter capture
granules bigger than 5μm. The green filter on the basement plenum and exhaust fan can filter the paint and dust emission. The air cleanliness in the working environment can reach 98%.
Burner: Original Italy RIELLO RG5S diesel burner, 260,000Kcal/h per unit, total 2 units of burners and 520,000Kcal/h. Max
temperature at 80°C.

Heat Exchanger(2sets): it’s made of 1.5mm thickness stainless steel which features more heat dissipating surface, better heat exchange and better burner efficiency. The heat exchange rate reaches 85%.

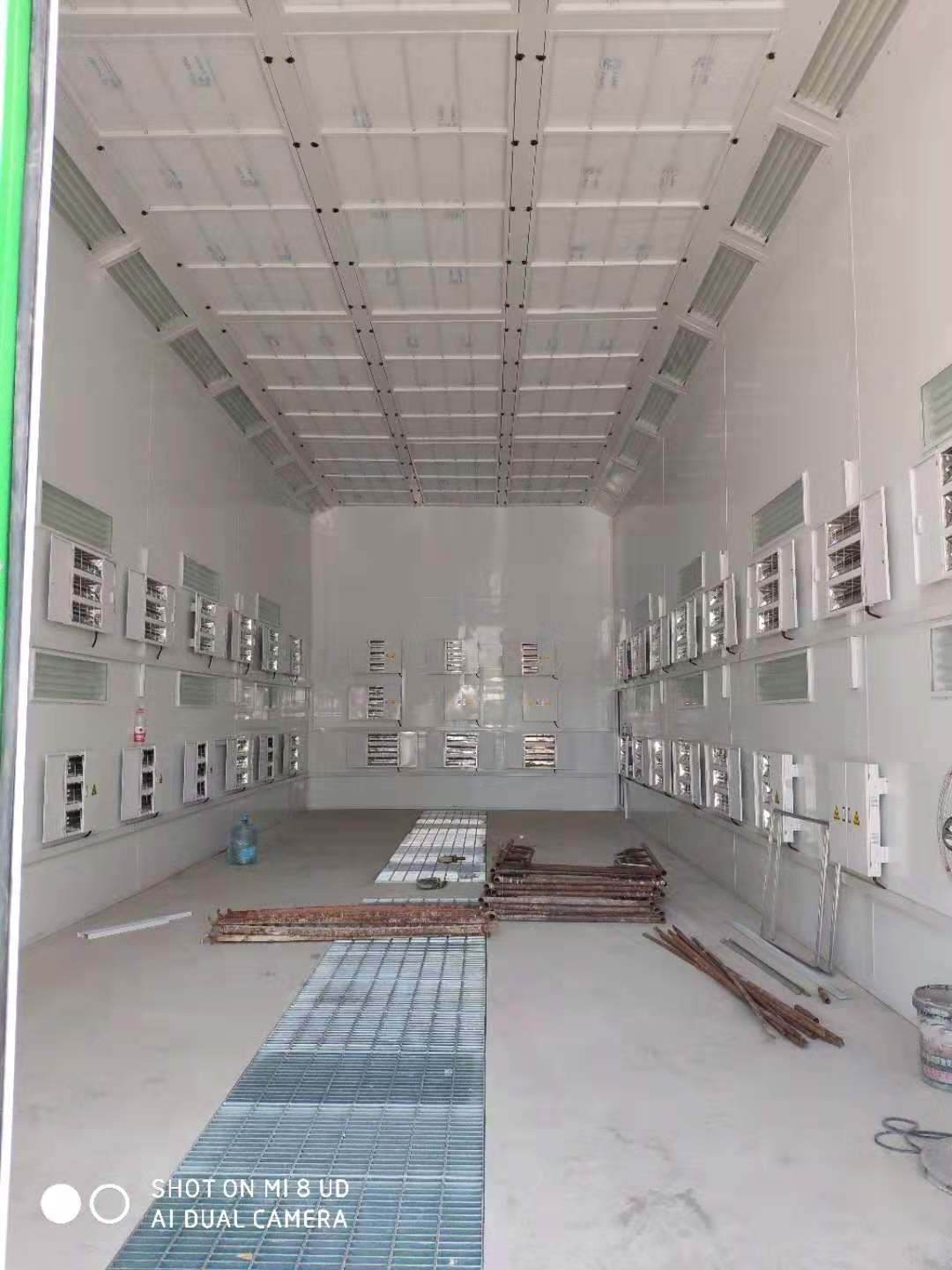

LED Lighting System: Ceiling lights have 18units×4pieces of 18w LED lamps. Side light has 22units×2pieces of 18kw LED lamps. Total 116pieces of 18w LED lamps. 900 Lux.

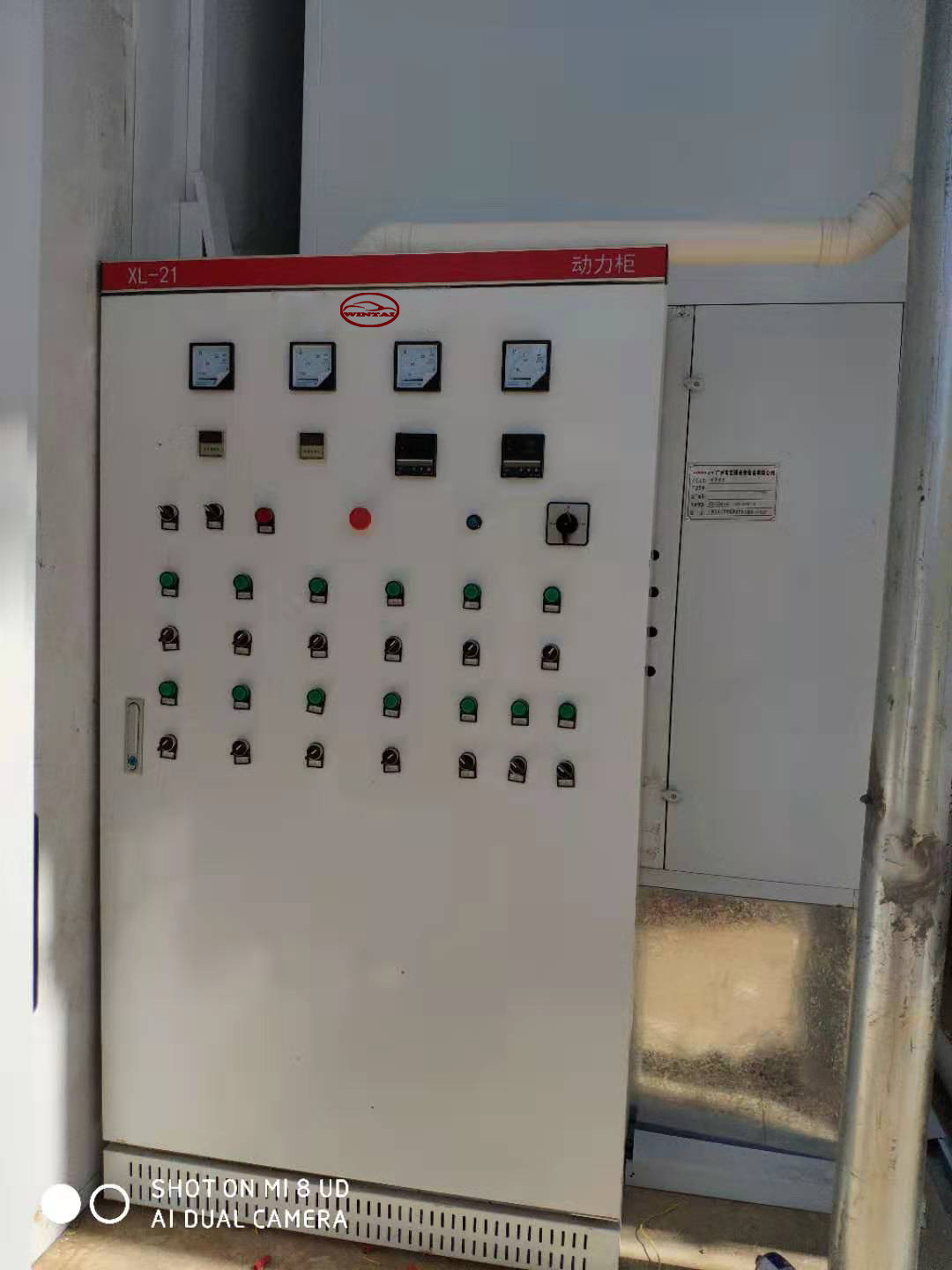

Control System: Microcomputer control system. Cabinet type, easy to control and maintain.

Remark:
Any sizes can be customized;
3D lift is optional.
Air exhaust from two sides of spray room or pit are optional;
Drive through type door, rolling door and folding door are optional.
Air generation system on the top of spray room is optional.
