Quick Details
-
Dimensions(L*W*H):
-
1480*1880*1350
-
Weight:
-
650 KG
-
Speed:
-
40-50 m/h
-
Name:
-
roll machine sublimation heat press machine
-
Temperature:
-
0-400
-
Noise:
-
30 QB
-
Roll diameter:
-
200mm
-
Width:
-
1200mm
-
Printing products:
-
digital textile printing machine
-
Products type:
-
printing machine
-
Application:
-
mini roll clothes
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Number one
-
Voltage:
-
220V/380V
-
Dimensions(L*W*H):
-
1480*1880*1350
-
Weight:
-
650 KG
-
Speed:
-
40-50 m/h
-
Name:
-
roll machine sublimation heat press machine
-
Temperature:
-
0-400
-
Noise:
-
30 QB
-
Roll diameter:
-
200mm
-
Width:
-
1200mm
-
Printing products:
-
digital textile printing machine
-
Products type:
-
printing machine
-
Application:
-
mini roll clothes
| Roll transfer printing machine NM-BA | ||
| Roll diameter(mm) | 200 | 200 |
| Widthmm(mm) | 1200 | 1700 |
| Wigth of roller(mm) | 1360 | 1880 |
| Power | 7kw | 9kw |
| Electric current | 25A | 32A |
| Voltage | 220V/380V | |
| Temperature | 0-400℃ | |
| Noise | 30QB | |
| Packing size (mm) | 1500*1880*1200 | 1500*1880*1700 |
| Winding method | three put, two roll | three put, two roll |
| Weight (kg) | 550kg | 650kg |

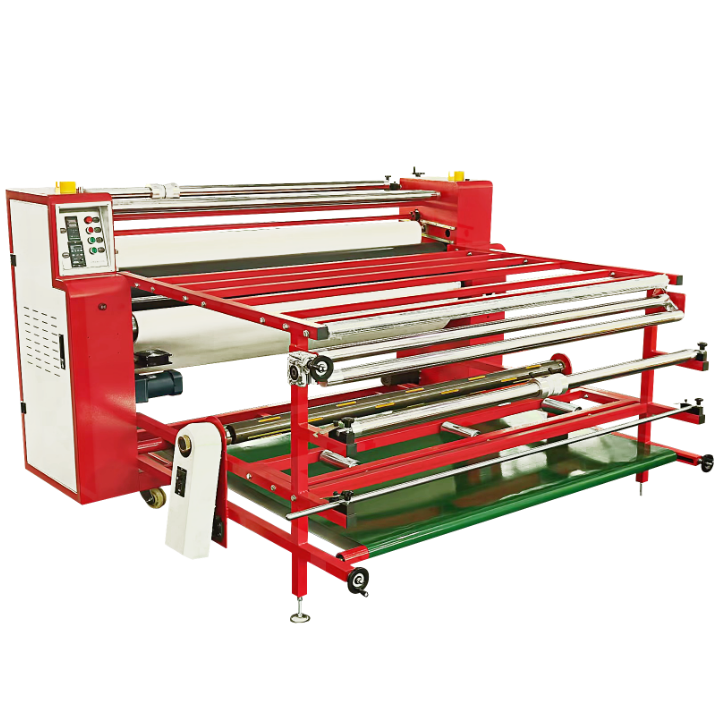

Roll transfer Printing machine (Proof machine)
NM-BA
Product Feature
1. Roller surface with Teflon coat, high hardness,wear resistant,anti-sticking
2. Digital temperature and speed hardness,wear resistant,anti-sticking
3. Oil heating,temperature uniformity (±1-2°C) no deviations of color.
4. Using imported heating pipes,heat evenly,durable;imported blankets which is not easy to deviate.
5. The blanket is detachable,and not easy to burn;with belts putting device for installing and fixing the belts.
6. Without smoke and abnormal odour during working.
|
Main wallboard The main wallboard (electric box) is made of 12mm thick steel plate by the application of Italian CNC wire cutting technology, There is high precision. |
|
Imported heating pipe Imported from Taiwan stainless steel heating pipe and heat transfer oil, because it directly heat oil, the temperature can rise to 200 degree in 45minutes or so. |
|
|
Automatic alarm device Automatic alarm device can display the current temperature. If the temperature overpasses the set temperature ,it will output signal promptly by triggering the alarm . |
|
|
"DuPont" raw materials blanket "DuPont" raw materials blanket with the thickness of 10mm. It is imported from the United States, which not only has good transfer effects but also long service life. |
|
|
|
Universal Bearings The machine uses the newest universal bearings, which effectively reduce the abrasion of bearing and the accessories. |
Applicable range
Applicable to all kinds of cloth, pieces, shoes and hats, handicrafts, gifts and so on.
Flow Chat:
Use the computer to devise the designed pattern,print it on the specific transfer paper through digital
printer by using sublimated ink,and then become transfer printing paper.
Let the transfer paper which has design cling to the fabric and feed together into the roller heat printing
machine.Through high temperature and high pressure,sublimation ink on the transfer paper will transfer to
fabric by pneumatolysis,printing is completed and tailor the printed fabric to become clothes.
