- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
LW
-
Model Number:
-
LW2R-100II
-
Rated Current:
-
100A
-
Product name:
-
Dual Power Transfer Switch
-
Pole:
-
2P/3P/4P
-
Installation:
-
Din Rail
-
Frequency:
-
50/60Hz
-
Rated Working Voltage:
-
220V AC
-
Standard:
-
IEC60947-6-1
-
Current:
-
63A/80A/100A/125A
-
Insulation Voltage:
-
690VAC
Quick Details
-
Type:
-
PC
-
Number of Pole:
-
2
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LW
-
Model Number:
-
LW2R-100II
-
Rated Current:
-
100A
-
Product name:
-
Dual Power Transfer Switch
-
Pole:
-
2P/3P/4P
-
Installation:
-
Din Rail
-
Frequency:
-
50/60Hz
-
Rated Working Voltage:
-
220V AC
-
Standard:
-
IEC60947-6-1
-
Current:
-
63A/80A/100A/125A
-
Insulation Voltage:
-
690VAC
Specification
|
item
|
value
|
|
Product name
|
Dual Power Transfer Switch
|
|
Place of Origin
|
Zhejiang,China
|
|
Brand Name
|
LW
|
|
Model Number
|
LW2R-100II
|
|
Type
|
PC
|
|
Type
|
Double Power Source
|
|
Pole
|
2P/3P/4P
|
|
Installation
|
Din Rail
|
|
Frequency
|
50/60Hz
|
|
Rated Working Voltage
|
220V AC
|
|
Standard
|
IEC60947-6-1
|
|
Current
|
63A/80A/100A/125A
|
|
Insulation Voltage
|
690VAC
|
Product Description

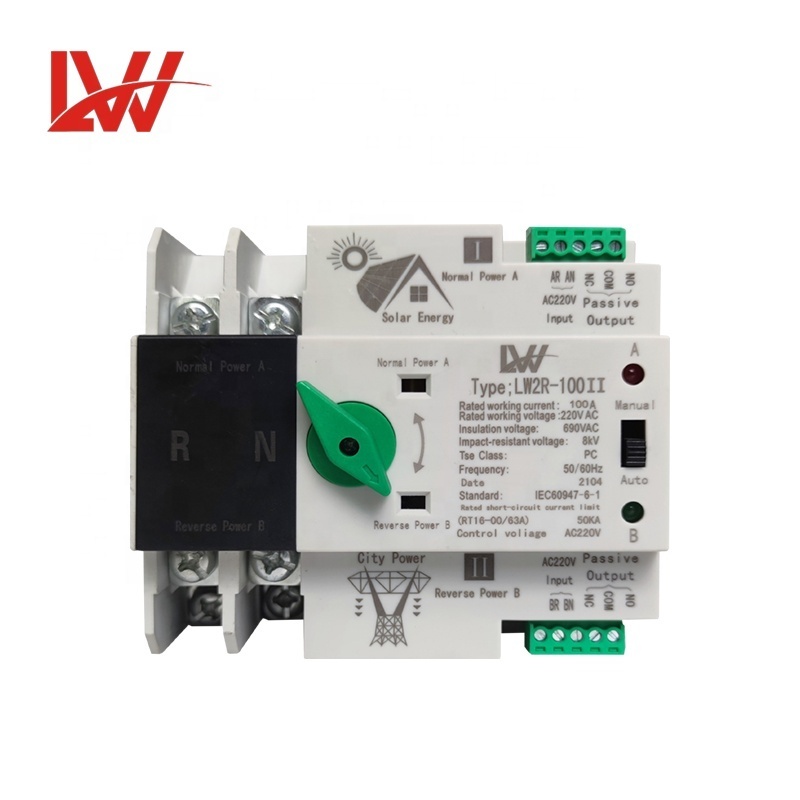

LW2R Din Rail 4P 100A ATSE Dual Power Automatic Transfer Switch for solar
LW2R series dual power automatic transfer switch is new developed micro household power transfer switch.. The switch is mainly used for testing whether normal or spare power is normal or not. When the normal power is abnormal, the spare power works at once, which therefore ensures the
continuity
, reliability, and safety of power supply. The product is specially designed for household orbit-type installation and specially use in PZ30 power distribution box.
LW2R series automatic transfer switch is suitable for the emergency power supply system with 50 or 60 Hz alternatting current rated 400V 60A. TSE is compact in structure, reliable in transfer, convenient in instabllation and maintenance, and has long life expectancy. Widely used In various occasions where continuous power failure ls not allowed, it can be operated both electrically and manually.
ATS is composed of TSE and the controller. ATSE compiles with requirements of Low-voltage Switch Gear and Control Gear specified by GB/T14048. 11, Part 6-1 : Multiple functional equipment and transfer switch equipment
LW2R series automatic transfer switch is suitable for the emergency power supply system with 50 or 60 Hz alternatting current rated 400V 60A. TSE is compact in structure, reliable in transfer, convenient in instabllation and maintenance, and has long life expectancy. Widely used In various occasions where continuous power failure ls not allowed, it can be operated both electrically and manually.
ATS is composed of TSE and the controller. ATSE compiles with requirements of Low-voltage Switch Gear and Control Gear specified by GB/T14048. 11, Part 6-1 : Multiple functional equipment and transfer switch equipment
