Quick Details
-
Length:
-
4m, 2m/2.44m/3m/4m/6m
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
XK
-
Model Number:
-
XKCTA-60080
-
Side Rail Height:
-
80mm
-
Max. Working Load:
-
500kg
-
Name:
-
Customized High Quality Cable Ladder Type/ Channel Type Cable Trays
-
Certificates:
-
CE ISO
-
Surface Finish:
-
hdg gi powder-coated
-
Thickness of cable tray ladder:
-
0.5mm-2.5mm
-
Color:
-
silver or customized
-
Service:
-
OEM, ODM
-
Package:
-
Seaworthy Packing
-
Free sample:
-
Available
-
Accessories:
-
Provide Matching Accessories
Quick Details
-
Type:
-
Ladder Tray
-
Material:
-
Steel
-
Width:
-
600mm
-
Length:
-
4m, 2m/2.44m/3m/4m/6m
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
XK
-
Model Number:
-
XKCTA-60080
-
Side Rail Height:
-
80mm
-
Max. Working Load:
-
500kg
-
Name:
-
Customized High Quality Cable Ladder Type/ Channel Type Cable Trays
-
Certificates:
-
CE ISO
-
Surface Finish:
-
hdg gi powder-coated
-
Thickness of cable tray ladder:
-
0.5mm-2.5mm
-
Color:
-
silver or customized
-
Service:
-
OEM, ODM
-
Package:
-
Seaworthy Packing
-
Free sample:
-
Available
-
Accessories:
-
Provide Matching Accessories
Customized High Quality Cable Ladder Type/ Channel Type Cable Trays
Specifications
♦ Thickness: 0.7 mm - 2.8 mm
♦ Height: 50 mm - 350 mm
♦ Width: 100 mm - 1000 mm
♦ Material: Stainless steel, aluminum alloy,
carbon steel
and so on
♦ Complete series of fittings: horizontal elbow, horizontal tee, horizontal cross, horizontal reducer, vertical elbow up, insider, vertical elbow down, connector etc.
♦ Finished: Pre-galvanized, hot dipped galvanized, Powder coating, plastic spraying and paint spraying and in severe corrosive environment the surface can be specially treated for anti- corrosion, when adopting plastic spraying please use ground connection board.
Advantages
♦ Fire-proof, Moisture-proof and Anti-corrosion
♦ High strength. Strong enough to withstand short circuits. Provides strength, rigidity without additional hardware
♦ Energy saving, light weight, wide range of sizes.
♦ Excellent heat dispersion
♦ Low cost, special model, convenient installation and ventilation.
♦ Safe smooth edge design to protect cable
♦ Easy for line check and cleaning, easy maintained.
Installation Notice:
♦
Bends, Risers, T Junctions, Crosses & Reducers can be made to fit cable tray straight sections flexibly in different projects.
♦
Trays shall be supported at a maximum span of 2.5m by trapeze, wall, floor or channel mounting methods and will not exceed maximum loads.
♦
Cable tray systems can be safely employed in places where the temperature ranges between -40°C and +150°C without any change to their characteristics.

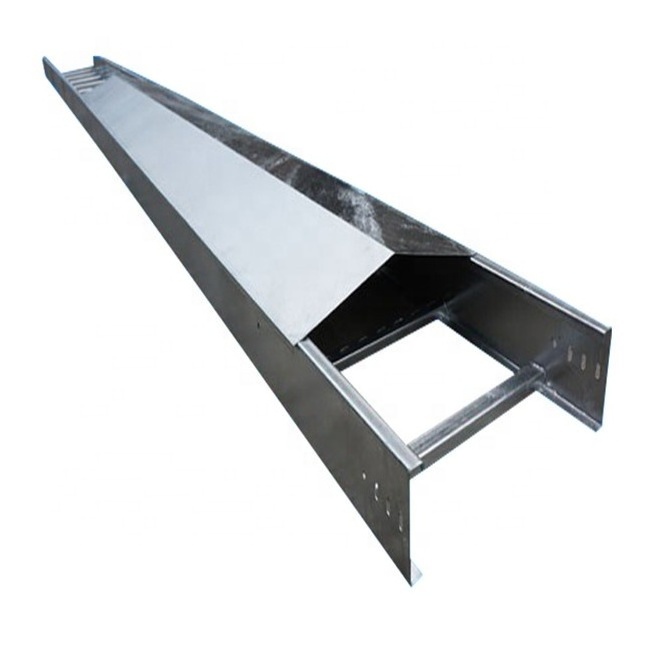

ladder type cable tray
|
Size |
W |
H |
A |
B |
|
200*70 |
200 |
70 |
35 |
38.5 |
|
300*70 |
300 |
70 |
35 |
38.5 |
|
400*70 |
400 |
70 |
35 |
38.5 |
|
500*70 |
500 |
70 |
35 |
38.5 |
|
600*70 |
600 |
70 |
35 |
38.5 |
|
800*70 |
800 |
70 |
35 |
38.5 |
|
200*100 |
200 |
100 |
60 |
50 |
|
300*100 |
300 |
100 |
60 |
50 |
|
400*100 |
400 |
100 |
60 |
50 |
|
500*100 |
500 |
100 |
60 |
50 |
|
600*100 |
600 |
100 |
60 |
50 |
|
700*100 |
700 |
100 |
60 |
50 |
|
800*100 |
800 |
100 |
60 |
50 |
|
900*100 |
900 |
100 |
60 |
50 |
|
1000*100 |
1000 |
100 |
60 |
50 |
|
1200*100 |
1200 |
100 |
60 |
50 |
|
Note : Using stainless steel raw material for 1.2mm and 1.5mm thickness side rail. |
||||
Related products
|
Selling units: |
Single item |
|
Singel package size: |
according to real weight |
|
Net weight: |
According galvanized metal wall cable cover, without the packge |
|
Package Type: |
1.Bulk Packaging 2.Stretch Film Packaging 3.Wooden Packaging 4.With or without pallets 5.According to requirments. |
|
Advantage: |
Only 40km neighbored the world biggest Port-Shanghai Yangshan Port. |
