High Quality Water Filter Cloth Paper Fabric Dewatering Sludge Machine New Arrival Conveyor Belt Dryer Screw Machine Vacuum
High Quality Water Filter Cloth Paper Fabric Dewatering Sludge Machine New Arrival Conveyor Belt Dryer Screw Machine Vacuum
High Quality Water Filter Cloth Paper Fabric Dewatering Sludge Machine New Arrival Conveyor Belt Dryer Screw Machine Vacuum
High Quality Water Filter Cloth Paper Fabric Dewatering Sludge Machine New Arrival Conveyor Belt Dryer Screw Machine Vacuum
High Quality Water Filter Cloth Paper Fabric Dewatering Sludge Machine New Arrival Conveyor Belt Dryer Screw Machine Vacuum
High Quality Water Filter Cloth Paper Fabric Dewatering Sludge Machine New Arrival Conveyor Belt Dryer Screw Machine Vacuum
High Quality Water Filter Cloth Paper Fabric Dewatering Sludge Machine New Arrival Conveyor Belt Dryer Screw Machine Vacuum
High Quality Water Filter Cloth Paper Fabric Dewatering Sludge Machine New Arrival Conveyor Belt Dryer Screw Machine Vacuum

High Quality Water Filter Cloth Paper Fabric Dewatering Sludge Machine New Arrival Conveyor Belt Dryer Screw Machine Vacuum

FOB Reference Price: Get Latest Price
≥1 Square meters
US $21
≥10 Square meters
US $19
≥100 Square meters
US $17
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Product Name:
Polyester spiral net
Advantage:
Long Life
After Warranty Service:
Video technical support
Local Service Location:
None
Material:
Stainless Steel
Application:
Paper Mill Industry
Type:
Make-to-order
Usage:
Drying Section
Name:
Dryer Felt
Function:
Making Pulp

Quick Details

Weight (KG):
30
Place of Origin:
Henan, China
Brand Name:
Tianyu
Product Name:
Polyester spiral net
Advantage:
Long Life
After Warranty Service:
Video technical support
Local Service Location:
None
Material:
Stainless Steel
Application:
Paper Mill Industry
Type:
Make-to-order
Usage:
Drying Section
Name:
Dryer Felt
Function:
Making Pulp
Product introduction

Our main products are: polyester molding mesh, polyester dry mesh, polyester spiral filter belt, pressure filter, sludge dehydration fabric, washing pulp nfabrics, weaving belt, polyethylene belt, decorative belt, puffed food conveyor belt and anti- Electrostatic conveyor belt and more than 10 kinds, hundreds of specifications.

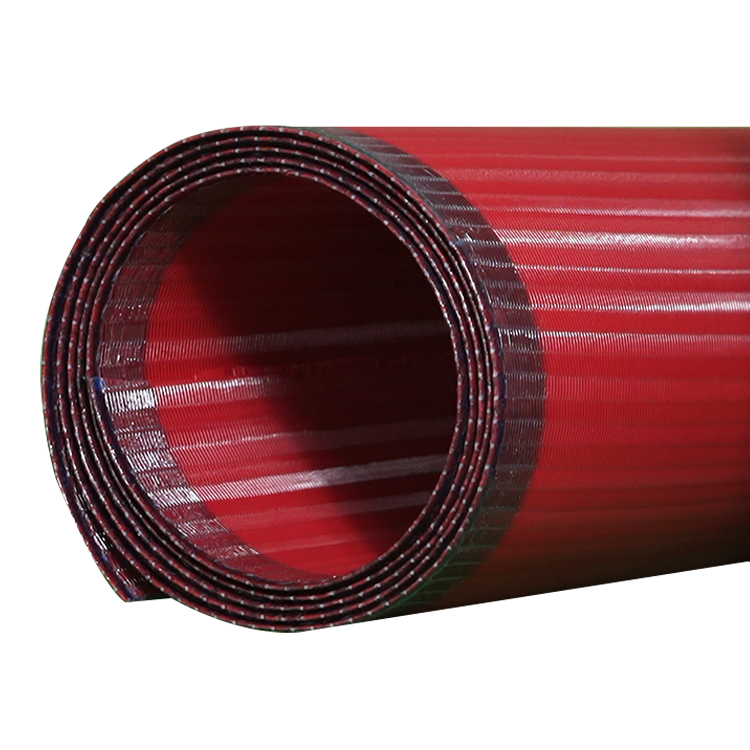

Polyester spiral link dryer fabric belt is made of polyester sprial dryer fabric which is filled with stuff to reduce the air permeability and intensive the opening,hence to reduce the material loss from the mesh opening.


Polyester spiral link dryer farbic belt application:
1) - Polyester spiral link dryer fabric belt with high strength,good permeability,so this fabric belt is also used for high-pressure press-filter water,horizontal belt washer,pulp-liquor separator and mesh belt coal-washer etc.
2) - This fabric belt is widely used in all kinds of industries,such as printing and dying,food,salt industry,pharmacy,environment protection etc.
3) - Polyester spiral link dryer fabric belt is also used in papermaking industry,such as paper pulp drying,forming,and paper making sewage treatment etc.

Type
Spec. of loop
(mm)
Spiral loop filament dia.
(mm)
Threading filament dia.
(mm)
Strength
(N/cm)
Thickness (mm)
Weight of mesh (kg/m2)
Air permeability (cfm)

Super loop
4.8X10
0.9
1.1
2300
3.03
1.64
1170+/-30
Large loop
3.8X7.0
0.68
0.9
2000
2.45
1.40
1000+/-30
Medium loop
3.5X6.0
0.68
0.9
2000
2.45
1.31
890+/-30
Small loop
3.2X5.2
0.5
0.8
1800
1.87
0.97
840+/-30
Factory show
Our advantages
Our Service
Packing & Delivery

Below package is available, and your special request is also welcome:

1. Non woven fliter belt by sea, wooden case with foam plastic inside
2. Non woven forming fabric belt by air, carton box- soft package
3. Non woven forming fabric mesh belt according to your request.
