Quick Details
-
Model Number:
-
KG316T
-
Max. Current:
-
16A,250VAC
-
voltage:
-
220VAC 50~60Hz±15%(Others can be customized)
-
Custom voltage:
-
12V, 24V 110V
-
Internal battery:
-
Built-in large-capacity lithium battery
-
power consumption:
-
1VA(Type A) 4.5VA(Type B)
-
Control output:
-
16A,250VAC(Resistive load)
-
Display device:
-
LCD display
-
Travel time error:
-
Less than 2 seconds/day (25℃)
-
Switch times:
-
16 times of switch/weekly goods day
-
size:
-
121*105*52mm
-
Certification:
-
CE, IEC
Quick Details
-
Max. Voltage:
-
220v
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZHELE
-
Model Number:
-
KG316T
-
Max. Current:
-
16A,250VAC
-
voltage:
-
220VAC 50~60Hz±15%(Others can be customized)
-
Custom voltage:
-
12V, 24V 110V
-
Internal battery:
-
Built-in large-capacity lithium battery
-
power consumption:
-
1VA(Type A) 4.5VA(Type B)
-
Control output:
-
16A,250VAC(Resistive load)
-
Display device:
-
LCD display
-
Travel time error:
-
Less than 2 seconds/day (25℃)
-
Switch times:
-
16 times of switch/weekly goods day
-
size:
-
121*105*52mm
-
Certification:
-
CE, IEC

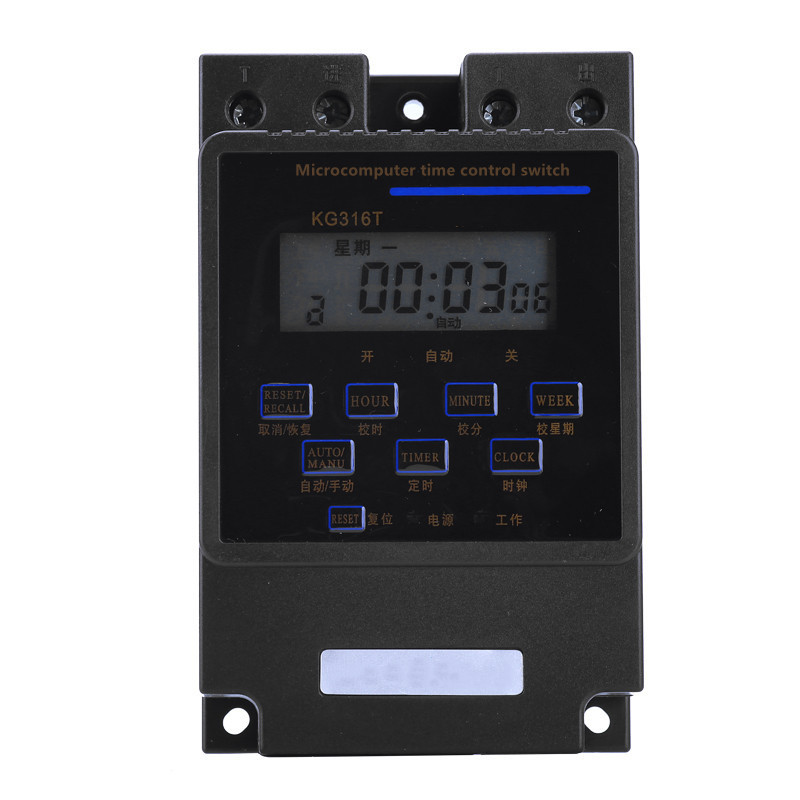

Microcomputer time control switch KG316T
Built-in high-performance 3V chip, anti-interference performance is more stable
Built-in large-capacity lithium battery, long standby time of more than 5 years
Built-in reset function, can be reset by one key when setting data
The controller has its own sleep function, which can be shut down to be more energy-saving and environmentally friendly
| voltage | 220VAC 50~60Hz±15%(Others can be customized) |
| Custom voltage | 12V, 24V 110V |
| Internal battery | Built-in large-capacity lithium battery |
| power consumption | 1VA(Type A) 4.5VA(Type B) |
| Control output | 16A,250VAC(Resistive load) |
| Display device | LCD display |
| Travel time error | Less than 2 seconds/day (25℃) |
| Switch times | 16 times of switch/weekly goods day |
| Ambient temperature | -25℃~60℃ |
| environment humidity | 45~85%RH |
| size | 121*105*52mm |
| Installation method | Rail type and device type (three M3 nails) |
