Quick Details
-
Slider Cylinder:
-
MK
-
Action:
-
Double action
-
Working medium:
-
Air
-
Piston speed:
-
50-200mm/s
-
Guaranteed pressure with stand:
-
1.5MPa
-
Connection diameter:
-
M5*0.8; G1/8
-
Rotation direction:
-
Left/Right
-
Cushion:
-
Rubber cushion
-
Applied temp range:
-
-10~60℃
-
Non-standard stroke:
-
Available
Quick Details
-
Weight (KG):
-
0.3
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SAZN
-
Slider Cylinder:
-
MK
-
Action:
-
Double action
-
Working medium:
-
Air
-
Piston speed:
-
50-200mm/s
-
Guaranteed pressure with stand:
-
1.5MPa
-
Connection diameter:
-
M5*0.8; G1/8
-
Rotation direction:
-
Left/Right
-
Cushion:
-
Rubber cushion
-
Applied temp range:
-
-10~60℃
-
Non-standard stroke:
-
Available

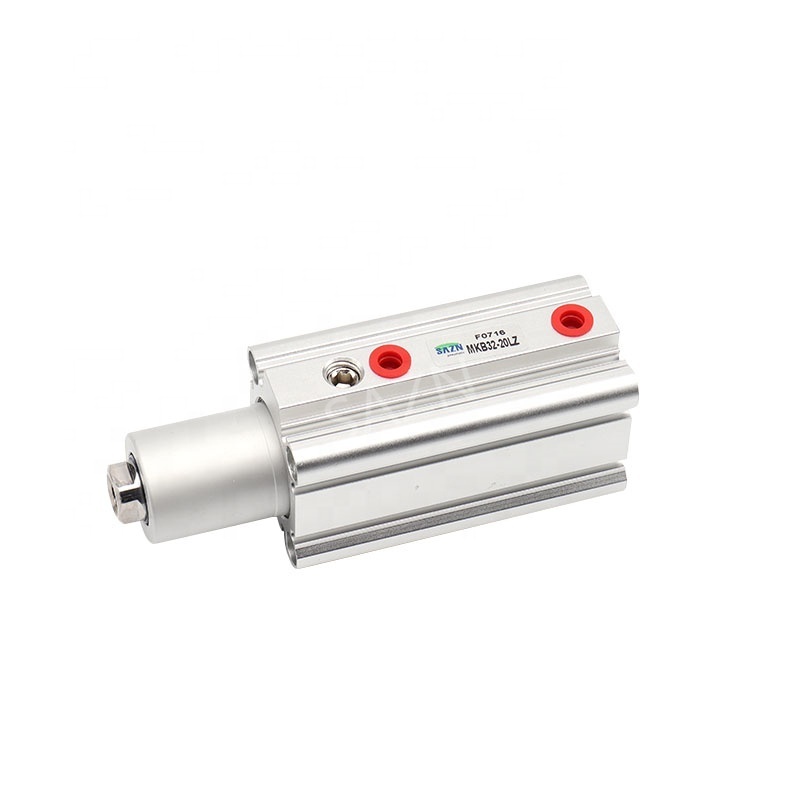

SMC MK 90 Degree Double Acting Back Rotation Port Thread Type Swing Clamp Table Rotary Pneumatic Cylinder
Please contact with our-factory to made-to order if you need special travel or any customization. :)
How to Order
Details Images
Product Paramenters
|
缸径 Bore Size(mm)
|
12
|
16
|
20
|
25
|
32
|
40
|
50
|
63
|
|||||||
|
工作介质 Working Fluid
|
空气 Air
|
|
|
|
|
|
|
|
|||||||
|
动作形式 Action Mode
|
双作用 Double acting
|
|
|
|
|
|
|
|
|||||||
|
最高使用压力Max.Working Pressure
|
1Mpa
|
|
|
|
|
|
|
|
|||||||
|
最低使用压力Min.Working Pressure
|
0.1Mpa
|
|
|
|
|
|
|
|
|||||||
|
环境和流体温度Fluid Temperature
|
(-)10 ~ (+)60℃
|
|
|
|
|
|
|
|
|||||||
|
活塞速度 Piston Speed
|
50 ~ 200mm/s
|
|
|
|
|
|
|
|
|||||||
|
缓冲 Buffering
|
橡胶缓冲 Rubber buffer
|
|
|
|
|
|
|
|
|||||||
|
行程公差 Stroe Tolerance(mm)
|
(+)0.6 (-)0.4
|
|
|
|
|
|
|
|
|||||||
|
润滑 Lubrication
|
不需要 No need
|
|
|
|
|
|
|
|
|||||||
|
回转方向 Back-Rotation Direction
|
左L/右R
|
|
|
|
|
|
|
|
|||||||
|
回转角度 Back-Rotation Angle
|
90°±10°
|
|
|
|
|
|
|
|
|||||||
|
回转行程 Back-Rotation Distance(mm)
|
7.5
|
|
9.5
|
|
15
|
|
19
|
|
|||||||
|
夹紧行程 Clamping Distance(mm)
|
10/20
|
|
|
|
|
|
20/50
|
|
|||||||
|
允许弯矩 Allowed Bending Torque(N.m)
|
1
|
3.8
|
7
|
13
|
27
|
47
|
107
|
182
|
|||||||
|
夹紧力(N) 0.5Mpa Clamping Force(N)
|
40
|
75
|
100
|
185
|
300
|
525
|
825
|
1400
|
|||||||
|
活塞杆不回转精度 Non-Rotation Accuracy of Piston Rod
|
±1.4°
|
±12°
|
|
|
±0.9°
|
|
±0.7°
|
|
|||||||
|
接管口径 Port Size
|
M5*0.8
|
|
|
|
1/8
|
|
1/8
|
|
|||||||
