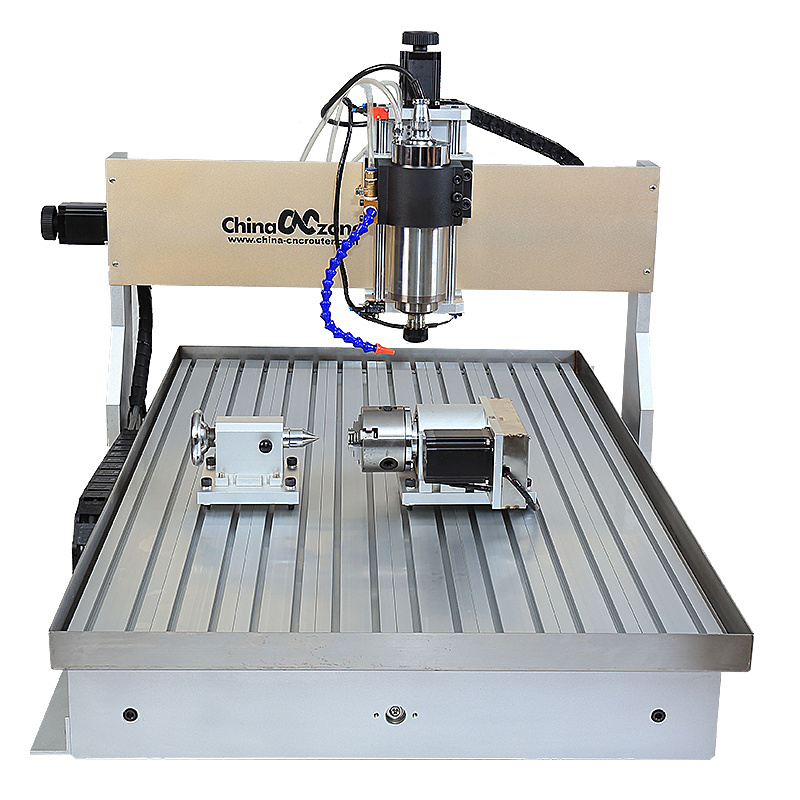

4 axis cnc wood carving 6090 engraving machine
4 axis cnc wood carving 6090 engraving machine
4 axis cnc wood carving 6090 engraving machine
4 axis cnc wood carving 6090 engraving machine
4 axis cnc wood carving 6090 engraving machine
4 axis cnc wood carving 6090 engraving machine
4 axis cnc wood carving 6090 engraving machine
4 axis cnc wood carving 6090 engraving machine

4 axis cnc wood carving 6090 engraving machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $1600
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Positioning Accuracy (mm):
0.02 mm
Travel (X Axis)(mm):
580 mm
Travel (Y Axis)(mm):
880 mm
Repeatability (X/Y/Z) (mm):
0.02 mm
Spindle Motor Power(kW):
2.2
Place of Origin:
Guangdong, China
Brand Name:
ChinaCNCzone
Voltage:
110V / 220V
Dimension(L*W*H):
860*630*480mm
Power (kW):
2.2
Weight (KG):
150
3 axis cnc 6090 X,Y,Z Working Area:
600mm*900mm*150mm
Max. Feeding height:
150mm
Table size:
600mm*900mm
Acceptable material thickness:
150mm
Stepping motor type:
57 two-phase 3A 150N.cm
Spindle motor:
brand new 2.2KW water cooling spindle, 24000RPM
Principal axis collet:
ER20/3.175 mm/6mm
Repeat accuracy:
0.05mm
Spindle precision:
radial beat acuities 0.03 mm
Computer connection:
Mach3/ DSP systerm

Quick Details

Working Table Size(mm):
600×900
Machine Type:
CNC Router
Range of Spindle Speed(r.p.m):
1 - 24000 rpm
Positioning Accuracy (mm):
0.02 mm
Travel (X Axis)(mm):
580 mm
Travel (Y Axis)(mm):
880 mm
Repeatability (X/Y/Z) (mm):
0.02 mm
Spindle Motor Power(kW):
2.2
Place of Origin:
Guangdong, China
Brand Name:
ChinaCNCzone
Voltage:
110V / 220V
Dimension(L*W*H):
860*630*480mm
Power (kW):
2.2
Weight (KG):
150
3 axis cnc 6090 X,Y,Z Working Area:
600mm*900mm*150mm
Max. Feeding height:
150mm
Table size:
600mm*900mm
Acceptable material thickness:
150mm
Stepping motor type:
57 two-phase 3A 150N.cm
Spindle motor:
brand new 2.2KW water cooling spindle, 24000RPM
Principal axis collet:
ER20/3.175 mm/6mm
Repeat accuracy:
0.05mm
Spindle precision:
radial beat acuities 0.03 mm
Computer connection:
Mach3/ DSP systerm

CNC6090 cnc wood carving machine prices in sri lanka

controllers for your choice

ThisDSP System mini 8060 cnc router Milling Machine can be widely used
A. Widely used not only for Aluminum but also acrylic, brass, wood, PVC, PCB, MDF and so on.
B. Ideal for milling, engraving, drilling & routing.
C. For Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes, Building Model Making, Advertising Signs, Artwork, Crafts,Aircraft Models, RC Model parts.

Highlights

Advantages of different controller

Type1: mach3(winXP) and USBCNC software available.
Type2: DSP controller, don't need to connect to computer, using TF card to load G-code
Type3: Mach3 USB allows you to use mach3 on Win10 and below, XHC mainboard.

Easy operating because:


*  Work independently.
*  2.2KG water-cooled spindle, powerfu!
*  Fast working speed.
*  Live video support on Youtube.


Other main featurers of our mini 6090 cnc router Milling Machine


*  English manual available.
*  Can engrave material such acrylic, brass, wood, aluminum, PCB and so on.
*  Balls crew made it a higher precision.
*  Auto-Checking function, easy to set origin of Z axis.
*  With built-in frequency converter in control box.
*  It has a broad-base and a thicker screw for larger material working.
*  Limited switches added.
*  From reliable & trustable profesional China CNC Router factory.

Detailed Images

Specifications

Shape dimension X860mm*Y630mm*Z480mm
Max.workpiece dimension X600mm*Y900mm*Z150mm
Frame materials aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let  counterfeiters dwarfs
Acceptable material thickness ≤150mm
Driving units X:  1605 ball screw
Y:  2005 ball screw
Z:  1605 ball screw
Sliding units X:  Dia.30mm chrome plate shafts
Y:  Dia.30mm chrome plate shafts
Z:  Dia.16mm chrome plate shafts
Stepping motor type 57-76 two-phase 3A 150N.cm
Spindle motor brand new 2.2kw water cooling spindle, 24000RPM
Spindle collet ER16-A, 3-10 mm shank diameter tool
Repeat accuracy <=0.05mm
Spindle precision Radial beat acuities 0.03 mm
Carving Instructions G code/ TAB files/ nc file/ NCC files
Maximum speed 4000mm/min
Carving speed 0-2500mm/min (different materials differ)
Command code G code
Protection Emergency stop button
Operating Voltage AC110V/AC220V
The 4th axis
Size 136*116*92 mm
Centre-height 34mm
Clamping diameter 50mm fingertight fitting
Reduction tatio 1:03
Error Range 0.1

Packaging & Shipping

1 Engraving machine
1 Rotary axis
1 Controller box with invertor installed in it
1 1500w / 2200w spindle
1 Power cable
1 Water pump
4 Engraving bit
2 Limited switch
1 Auto-checking tool
1 set of clamp tool
