Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Denuo Precision
-
Voltage:
-
380V,50HZ, 3Phase
-
Dimension(L*W*H):
-
As per model
-
Weight:
-
22000 kg
-
PLC Brand:
-
Inovance
-
Item Name:
-
Twin Rotary Sheeter
-
Item No:
-
DN-S1500
-
Cutting speed:
-
400 cuts/min
-
Weight of paper:
-
200-1000gsm
-
Max Reel Diameter:
-
1800mm
-
Max Width:
-
500-1500mm
-
Max Sheet Length:
-
450-1700mm
-
Max. paper stacking height:
-
1300mm-1700mm(included Pallet)
-
Cutting Accuracy:
-
0.1%≤±0.2mm
-
After-sales service:
-
Professional Technical Guidance
Quick Details
-
Type:
-
Paper Cutting Machine
-
Production Capacity:
-
300 m/min
-
Max. workable width:
-
1500mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Denuo Precision
-
Voltage:
-
380V,50HZ, 3Phase
-
Dimension(L*W*H):
-
As per model
-
Weight:
-
22000 kg
-
PLC Brand:
-
Inovance
-
Item Name:
-
Twin Rotary Sheeter
-
Item No:
-
DN-S1500
-
Cutting speed:
-
400 cuts/min
-
Weight of paper:
-
200-1000gsm
-
Max Reel Diameter:
-
1800mm
-
Max Width:
-
500-1500mm
-
Max Sheet Length:
-
450-1700mm
-
Max. paper stacking height:
-
1300mm-1700mm(included Pallet)
-
Cutting Accuracy:
-
0.1%≤±0.2mm
-
After-sales service:
-
Professional Technical Guidance
Double Rotary Helix Knife High Quality Servo Precision Automatic High Speed Paper Roll Sheet Cutter For A4 Copy Paper
| PARAMETER | |
| Model No | DN-S1500/DN-S1700/DN-S1900 |
| Cutting Type | The up knife cut reciprocally and the down knife is fixed |
| Paper Roll Details | |
| Applicable range of paper |
200-1000 g/sm
|
| Max. cutting speed |
400cut/min
|
| Max. paper roll diameter |
1800mm
|
| Minmum paper roll width | 500mm |
| Max paper roll width |
1400mm/1500mm/1700mm
|
| Max. paper-cutting width |
1500mm/1700mm/1900mm
|
| Max middle slitting length | 1700mm |
| Highest Stack Height | 1300mm-1700mm(included Pallet) |
| Minimum production speed | 20m/min |
| Max production speed | 300m/min |
| Cutting precision |
±
0.20mm
|
| Machine gross weight | 22000/25000/28000kgs |
| Machine land area |
16000mm*4500/4800mm*2300mm
|
| Application paper series |
White card board/SBS/coated free sheet paper and so on |

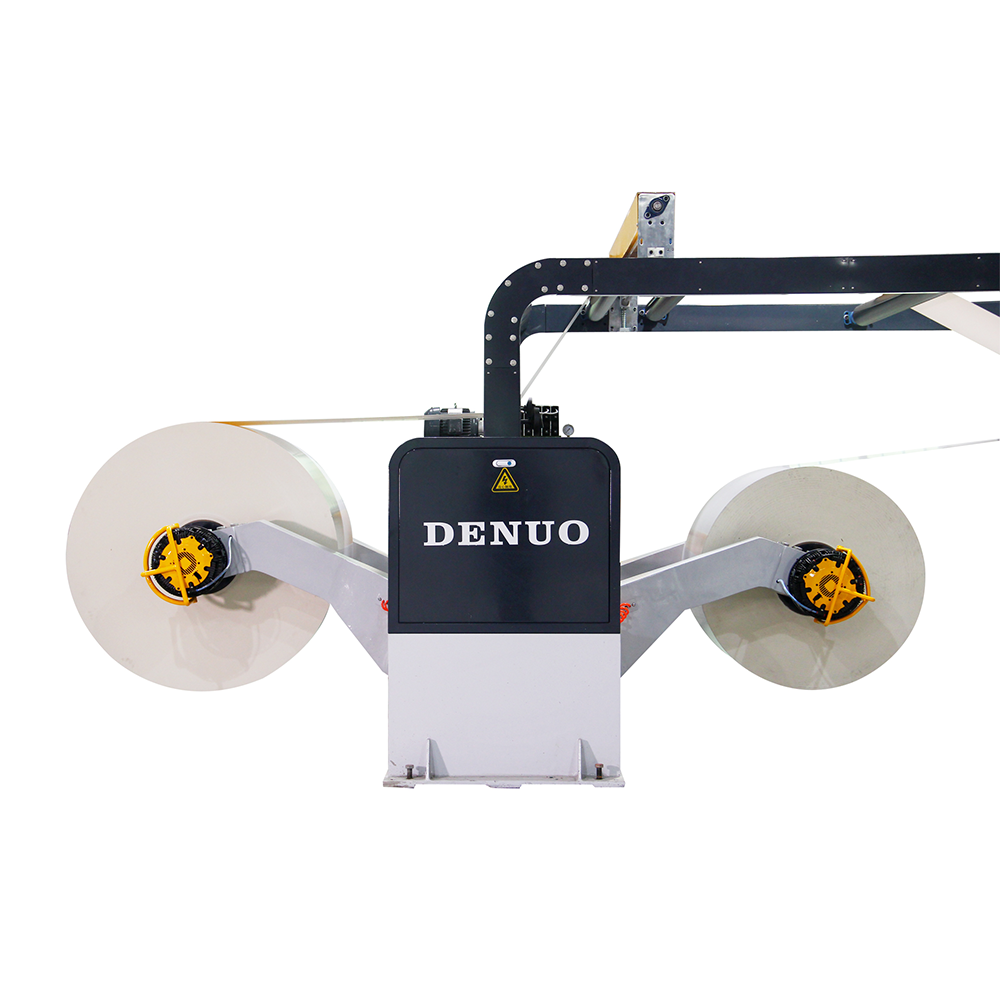

1. Double-arm oil-pressure shaftless original paper stand
2. Up and down spiral knife set
3. Automatic Anti-curve system
4. Electrostatic remove function
5. Overlap Paper feed function
6. Automatic lable insert function
7. Auto prismatic adjustment system for paper
8. Automatic tension control system
9. Use Italy Phase servo as electronic control part
1. Double-armless shaftless paper holder (can handle 2 rolls) Lower speed delivery: overlapping can be adjusted and auto stop function if paper jam
2. Multi-brake system make tension control more accurate, stable and longer work life
3.Small decor system make paper more smooth
4.Slitting and trimming function
5.Denuo synchronize sheeter adjustable knife angle are good for cutting paper & board and controlling the noise and rough cutting wile running high speed
6.High speed delivery equipment with dust collecting and static removing
7.Using famous brand servo, inverter drive and PLC to make high cutting accuracy
8.Equipped with auto brake, tension control and auto/manual squareness adjust system
9.Lower speed delivery: overlapping can be adjusted and auto stop function if paper jam
