Quick Details
-
Brand Name:
-
F&D INDUSTRIAL
-
Dimension(L*W*H):
-
1800*760*1510mm
-
Weight:
-
1300 KG
-
Marketing Type:
-
Hot Product 2023
-
Max. Feeding Size (mm):
-
280
-
fuel consumption:
-
1.5L/H
-
power:
-
10KW
Quick Details
-
Application:
-
recycling
-
Capacity(t/h):
-
6-10t/h
-
Place of Origin:
-
Henan, China (Mainland)
-
Brand Name:
-
F&D INDUSTRIAL
-
Dimension(L*W*H):
-
1800*760*1510mm
-
Weight:
-
1300 KG
-
Marketing Type:
-
Hot Product 2023
-
Max. Feeding Size (mm):
-
280
-
fuel consumption:
-
1.5L/H
-
power:
-
10KW

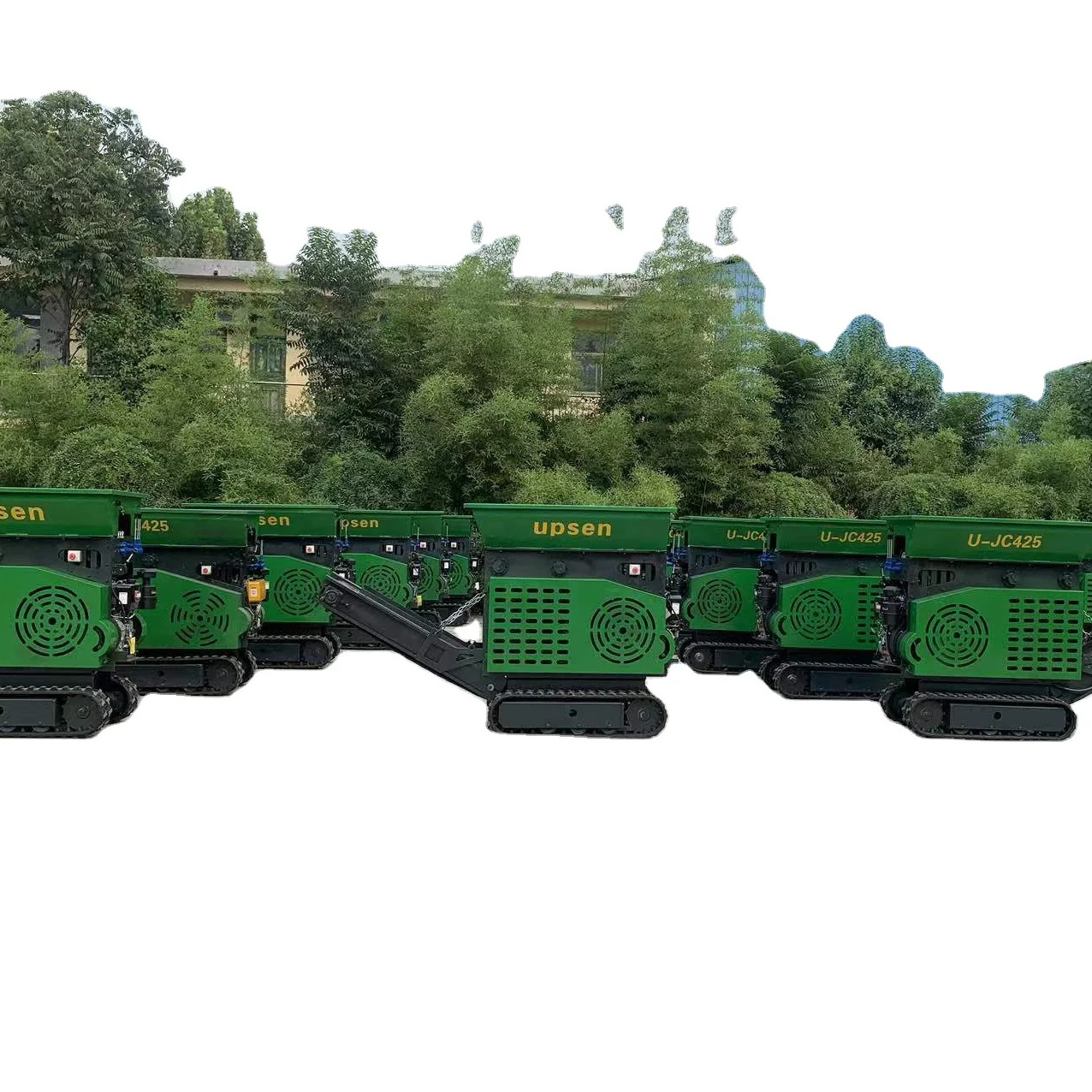

54Mini Mobile Jaw Crusher is major machine for earth moving field. It represent s a real revolution for small yards with lack of space. The smallest dimensions for the highest performances. U-JC Series Mini Mobile Jaw Crusher is designed for inert grinding, it is for the use in small yards with lack of space.
This crusher only require on operator. Equipped by tracks and radio remote control, it directly re-utilizes the ground material. In this way, it avoids transport costs.
It can reduce expenses because of the low operating costs, and totally avoiding the landfill.
|
Model |
U-JC503 |
U-JC425 |
|
|
Feeding Equipment |
Stock Bin Volume (m 3 ) |
3 |
1 |
|
Feeding Conveyor |
B400*1500 |
B400x3 |
|
|
Max. Feeding Size (mm) |
380 |
280 |
|
|
Driving Mode |
Hydraulic motor |
hydraulic |
|
|
Crushing Equipment |
Model |
JC 503 |
JC402 |
|
Feed port size (mm) |
480*300 |
400*200 |
|
|
Max. Feeding Size (mm) |
250 |
200 |
|
|
Discharge Size (mm) |
10-50 |
0-40 |
|
|
Capacity (t/h) |
10-20 |
6-8 |
|
|
Driving Mode |
Hydraulic motor |
hydraulic |
|
|
Discharging Equipment |
Discharging Conveyor |
B400*2500mm |
B400*2000 |
|
Diesel Engine |
Perkins 403J-17(25HP) |
Cummins Engine(10kw) |
|
|
Walking System |
Track Chassis |
B300*2100 (Rubber) |
B180*1000 |
|
Overall Unit |
Equipment weight (t) |
3.8 |
1.1 |
|
Overall Dimensions (L*W*H) |
4600x1700x2200mm |
1200x890x1400 | |
