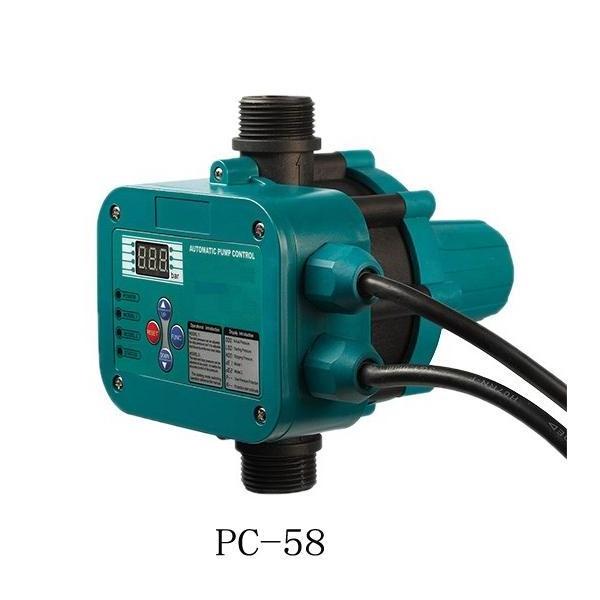

PC-58 pressure switch with digital/pump switch with digital/digital pressure switch

automatic pressure control water pump

Function:

1.Electric swith used in water systems,start and stop the pump automatically

2.Examine the water automatically,stop the pump in the case of water shortaget,protect the pump from damage caused by dry-running

3.Completely replaced traditional pump control system composed of pressure switch,pressure tank and check valve,etc.

TECHNICAL DATA:

1. Rated Voltage:220V

2. Max Rated Current:10A or 30(16)A

3.Max power:1.1KW or 2.2KW

4. Max Allowable Pressure: 10 bar

5.Max liquid temperature:0~80℃

6.Adjust pressure range:0. 5~6bar

PRODUCTS FEATURES:

Use high precision pressure sensor technology with a combination of electronic control technology, to realize accurate control of pump starting point

1.  Man-machine interactive interface, to adjust the starting pressure from 0.5bar to 6bar for any point, no need set the stop point, make sure the pump max head working.

2. Using the flow sensor technology, pressure sensing technology and electronic control technology, to control the water pump more suitable.

3. Using small flow Water supply motor fault protection technology, effectively solve the pump frequently caused by a small flow water motor heating problem,which can effectively protect the motor, improve system reliability and service life.

4. Pass the new product control technology, to restart the pump that not used for long time regularly, so it solve the problems as following,  one is bearing and shaft parts easily jammed for the corrosion .two is motor burn out

5.In the control panel have over-current protector, effectively solve the motor burned problem caused by the power grid voltage fluctuation or motor jammed , and then the current increase rapidly

6.Integrates the structure design of the buffer tank device, longer using life, better holding pressure regulation, to realize the self-leaking protection, do not often start pump

7.Under Voltage and Over voltage  protection.

Before the quotation, we need the following information:

• 1. Media
• We will suggest you the most suitable model.
• For an example, if for oil, it should use stainless steel material and high temp. cable;
• If for water, general PP cable is OK.
• 2. Cable material and conductor size
• Cable can be PVC or rubber;
• Conductor size ca be 3*0.5mm2, 3*0.75mm2, 3*1mm2.
• 3. Cable length
• Length can be customized;
• 4. Quantity
• Larger quantity will have a discount, and if just for sample, you can get the refund.
