Quick Details
-
Dimension(L*W*H):
-
none
-
Year:
-
new
-
Power (kW):
-
5.5 kW
-
Weight (KG):
-
300 KG
-
Used tire cutter:
-
tire sidewall cutter
-
used tire cutter for tire sidewall:
-
ring cutter for tires
-
tire strip cutter:
-
strip cutter for tires
-
tire bead wire seperator:
-
bead wire seperator for tires
-
tire ring cutting machine:
-
tire sidewall cutting machine
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Qingdao guangyue
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
none
-
Year:
-
new
-
Power (kW):
-
5.5 kW
-
Weight (KG):
-
300 KG
-
Used tire cutter:
-
tire sidewall cutter
-
used tire cutter for tire sidewall:
-
ring cutter for tires
-
tire strip cutter:
-
strip cutter for tires
-
tire bead wire seperator:
-
bead wire seperator for tires
-
tire ring cutting machine:
-
tire sidewall cutting machine

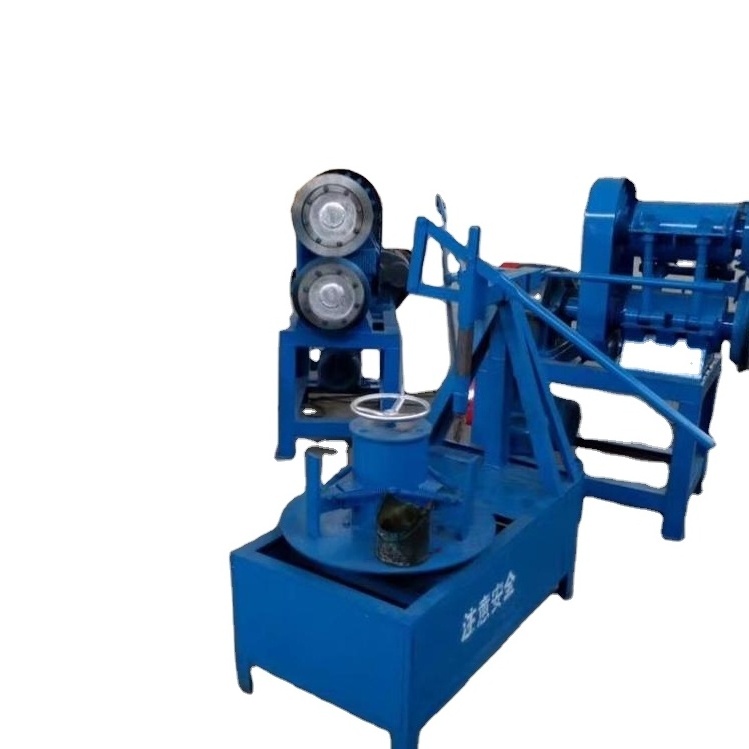

Old waste Used tire cutter for tire sidewall with CE certificate
Process flows:
waste tires--sidewall cutter--tire bead separator--tire strip cutter-you can get 50x50mm rubber block
Tire sidewall cutter --- tire recycling production line
(to cut and open the joint of tire's side and top)
| Model | Q-1200 |
| Motor power | 3kw |
| Capacity(kg/h) | 300-500kg/h |
| Rovolving speed | 15r/min |
| Fitted size | 650-1200 mm |
| Overall size(mm) | 1200*1400*1300 |
| Weight | 600kg |
Tire bead separator---tire recycling production line
(used to srparate the steel rims around the tire to avoid the harm to the machine)
| Motor power | 15kw |
| Rovolving speed | 18r/min |
| Adaptation tires | diameter ≤1200mm |
| Production capacity | 300-500kg/h |
| Overall size (mm) | 1600*1000*1300 |
| Weight | 1000kg |
Tire strip cutter machine---tire recycling production line
(used to cut the tire circle into strips 5*8 cm .
| Model | QT-40 |
| Motor Power | 5.5kw |
| Capacity(kg/h) | 300-500kg/h |
| Rovolving speed | 16r/min |
| Overall size (mm) | 1350*650*1450 |
| Weight | 900kg |
Tire bolck cutter machine---tire recycling production line
(used to cut the strips into small chunks about 3.5 cubic centimeter)
| Motor power | 11kw |
| Production capacity | 300-500kg/h |
| Rovolving speed | 240r/min |
| Cutting thickness | 50mm(max) |
| Overall size(mm) | 650*650*1250 |
| Weight | 600kg |
