- Product Details
- {{item.text}}
Quick Details
-
Screen Size:
-
10.1"
-
Screen Ratio:
-
16:9
-
Resolution:
-
1366*768
-
Contrast Ratio:
-
800:1
-
Brightness:
-
300cd/m2
-
Power Consumption:
-
≤35W
-
Shell:
-
aluminum alloy
-
Operation temperature:
-
-20°C-65°C
-
Touch screen:
-
Capacitive touch screen
Quick Details
-
Type:
-
Capacitive
-
Brand Name:
-
Touch Think
-
Place of Origin:
-
Guangdong, China
-
Screen Size:
-
10.1"
-
Screen Ratio:
-
16:9
-
Resolution:
-
1366*768
-
Contrast Ratio:
-
800:1
-
Brightness:
-
300cd/m2
-
Power Consumption:
-
≤35W
-
Shell:
-
aluminum alloy
-
Operation temperature:
-
-20°C-65°C
-
Touch screen:
-
Capacitive touch screen

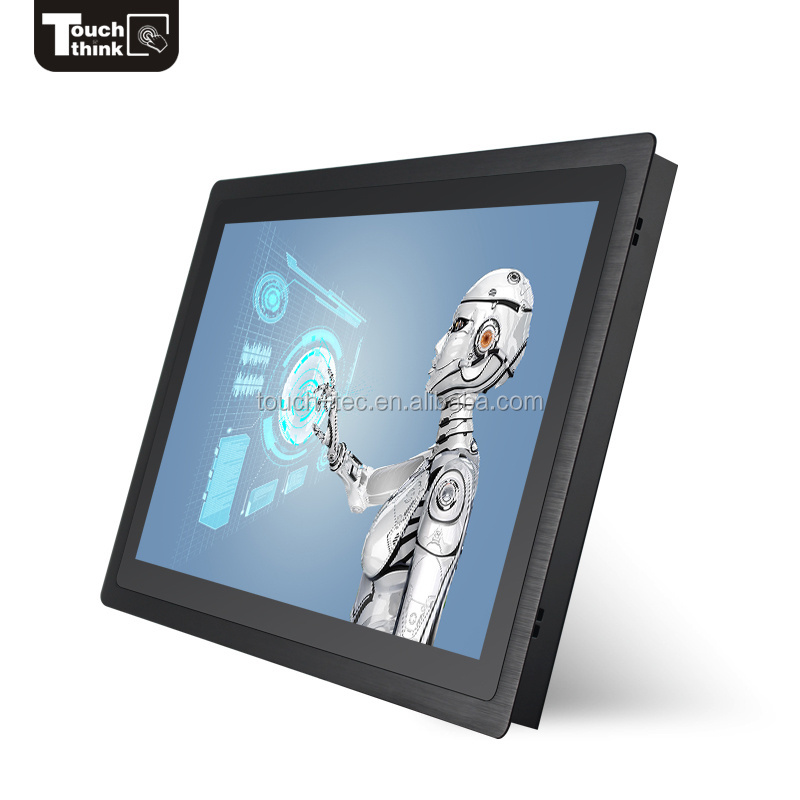

10.1 inch lcd double sided touch screen computer monitor
Why choose Touch Think?
1-High quality industrial LCD panel
--High brightness 500nit-1500nit LED backlights enhancements, direct sunlight readable.
--Optical bonding and antireflective coating,clearer viewing.
--Stable operation with long working life,more than 50,000 hours.
2-Aluminun alloy enclosure and high strength cold rolled shell, unique heat dissipation design.
--Sealed bezel and True flat are more efficient for water resistance.
--Stable running in shock and vibration application, as well as electromagnetic interference and radiation enviroment.
--High efficience for heat dissipation design, let Touch Think rugged display can operate in extensive temperatures -20°—60°.
3-Factory lowest price, 3 years warranty.
--We're professional manufacturer provide our clients with high quality and low cost industrial touchscreen panel pc/rugged touch monitor.
4-Certification
IP65, CE, FCC, RoHS,ISO.
Technical Specifications
|
Panel type |
10.1" TFT LED panel |
|
Display Mode |
4:3 |
|
Active Display Area(mm) |
227mm(W)*131mm(H) |
|
Resolution |
1366*768 |
|
Number of colors |
16.2M |
|
Pixel Pitch(mm) |
0.3075(H)×0.3075(V) |
|
Brightness(nits) |
300cd/m2 |
|
Contrast Ratio |
800:1 |
|
View Angle |
H:80°/80°V:80°/80° |
|
Response Time |
5ms |
|
Backlight |
LED (CCFL optional) |
|
Appearance of monitor |
Aluminum alloy |
|
Interface |
VGA/BNC(IN/OUT)/AUDIO/USB/HMI/DVI |
|
Color system |
PAL/NTSC/SECAM |
|
Power input |
AC 110-240V, 50/60Hz |
|
Power Consumption |
≤35W |
|
Power consumption Idling |
≤1W |
|
Plug & Play |
DDC 1/2B |
|
Lifetime |
50,000 hours |
|
Operation temperature |
-20°C—65°C |
|
Storage Temperature |
-30°C -70°C |
|
Operation humidity |
10%-90% |
|
Storage humidity |
10%-90% |
|
OSD Control |
Auto adjust, Brightness, Contrast, H/V Position, Color, Phase, Clock, autotune and recall, Language... |
|
Menu Languages |
Chinese/English(other languages supported) |
|
Operation Mode |
Remote controller |
|
Certificate of Approval |
CE, FCC, CCC, ISO9001 |
|
Mount Method |
|
|
Mounting |
Wall mounted(VESA) or standing type |
|
Touch Type (optional) |
|
|
Touch Screen Type |
capacitive touch screen |
|
Optional Touch Screen Type |
Resistive touch screen, Capacitive touch screen |
|
Touch Screen interface |
USB interface |
Shenzhen Touch Think Intelligence Co.,Ltd was established in 2008.
8000m²R & D production base,65 Honor and patent certification,49 Industry standard certification,6 Quality inspection system
60 core R&D personnel,300 Elite service team.
Rich product lines such as industrial touch screen monitor, Industrial All-in-one Panel PC, Industrial Android All-in-one Tablet PC,industrial boards, and customized PC,etc.
With 8 years of being Alibaba Verified supplier, having a total of $1000000 trade assurance to make sure the buyer's benefit. Incase they face a problem, they will be no reason to worry.
Certification: IP65, CE, FCC, CCC,RoHS, ISO.
Our products are exported to the EU, America, Asia, etc., and have enjoyed a great reputation in the whole world market.
Our goal is "Innovation First, Quality First, Customer First, Service First". We are committed to providing quality products, excellent services, competitive prices, quick responses and prompt delivery. Therefore, we keep long-term cooperation with our customers.
Transport and Packing process
Express(UPS,DHL,Fedex,EMS,etc) is available.
Sea and Air delivery is available.
Delivery Time
Samples: 1-3working days
500PCS or More orders:5-15working days
Q: whether your industrial monitor support the oem / odm?
A: Yes, our industrial monitor support the customization with size, function, appearance, resolution, high brightness and etc
Q: Where is your industrial monitor apply?
A: Restaurant, Advertisement, Gaming, Medical Equipment, kiosk, ATM, Industrial autamation, Supermarket chain stores etc.
Q: What is the main size for your industrial monitor?
A: 7",8”, 10.1”, 10.4”,11.6", 12”, 13.3” 15”, 15.6”, 17” 19” 21.5” 22” and wide screen the same size. We also support the customized.
Q: Can we printing our logo on the housing? What is MOQ?
A: Except the opening logo, we can do the silk-printing LOGO in the case. free charge.
Q: What kind of inspection you can provide?
A: Touchthink has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all signage players are in perfect condition before shipment. We also accept the inspection by the third party you appointed.
Q: What is your guarantee period?
A: 3 Years Quality Quarantee!
CE,FCC,CCC,ROHS certificate
