Quick Details
-
Model Number:
-
KXZ-SW-640
-
Max. Current:
-
15V
-
Mechanical Life:
-
30,000 times 4 position rotary switch
-
Electrical life:
-
10,000 times 4 position rotary switch
-
Configuration:
-
Multi-Pole
-
Terminal form:
-
Plug-in type
-
Packing:
-
sealed
-
Protection:
-
IP40
-
Angle:
-
18 degree
-
Switch Resistance:
-
30 ΩM Initially
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
SWITECH
-
Model Number:
-
KXZ-SW-640
-
Max. Current:
-
15V
-
Mechanical Life:
-
30,000 times 4 position rotary switch
-
Electrical life:
-
10,000 times 4 position rotary switch
-
Configuration:
-
Multi-Pole
-
Terminal form:
-
Plug-in type
-
Packing:
-
sealed
-
Protection:
-
IP40
-
Angle:
-
18 degree
-
Switch Resistance:
-
30 ΩM Initially
-
Certification:
-
CE
Product Descriptions
|
Specification & Drawing
|
|
|
|
|||
|
Name
|

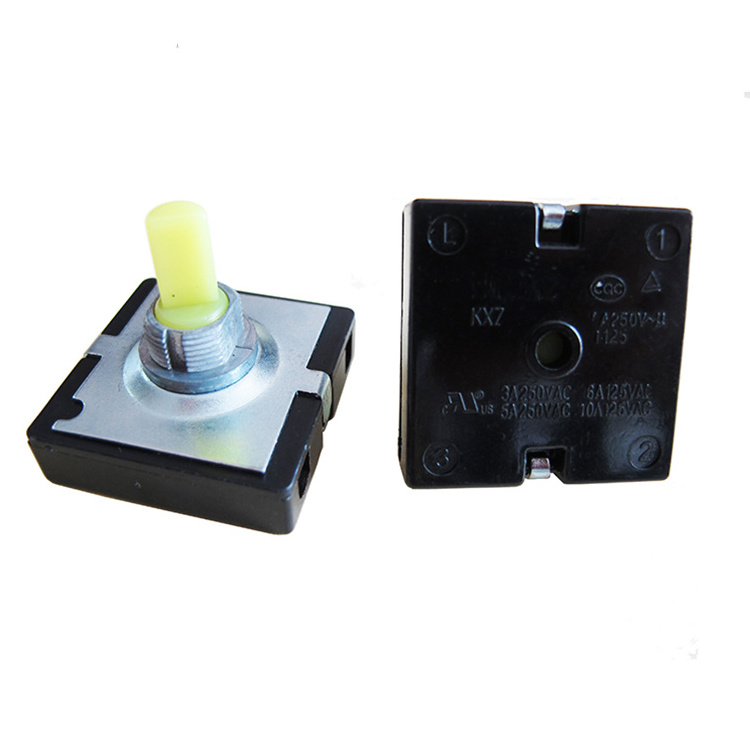

4 Position Rotary Switch for Fan
|
|
|
|||
|
Model
|
KXZ-SW-640
|
|
|
|||
|
Rating
|
3A 250VAC
|
|
|
|||
|
Contact resistance
|
50mΩ MAX
|
|
|
|||
|
Insulation resistance
|
100MΩ MIN
|
|
|
|||
|
Operation force
|
4±2 Max N
|
|
|
|||
|
Operation life
|
10,000 cycles
|
|
|
|||
|
Terminal form
|
Plug-in type
|
|
|
|||
|
Solder ability
|
235±5℃ for 3±0.5s
|
|
|
|||
|
Operation temperature
|
0℃~85℃
|
|
|
|||
|
Material & Color
|
|
|
|
Housing
|
Phenolic Molding Compound T375J
|
|
|
Actuator
|
Nylon Zytel 103HSL
|
|
|
Plate
|
Steel Sheet 0.6mm
|
|
|
Movable Contact
|
Brass H62 1.5mm
|
|
|
Spacer
|
PBT 4308 G30
|
|
|
Terminal
|
Bronze Strip
|
|
|
Bush
|
Zn-Al alloy
|
|
|
Nut
|
Zn-Al alloy
|
|
