4G GPS tracking bus automatic passenger counter with bus passenger counter system precise people counter for bus
4G GPS tracking bus automatic passenger counter with bus passenger counter system precise people counter for bus
4G GPS tracking bus automatic passenger counter with bus passenger counter system precise people counter for bus
4G GPS tracking bus automatic passenger counter with bus passenger counter system precise people counter for bus
4G GPS tracking bus automatic passenger counter with bus passenger counter system precise people counter for bus
4G GPS tracking bus automatic passenger counter with bus passenger counter system precise people counter for bus
4G GPS tracking bus automatic passenger counter with bus passenger counter system precise people counter for bus
4G GPS tracking bus automatic passenger counter with bus passenger counter system precise people counter for bus

4G GPS tracking bus automatic passenger counter with bus passenger counter system precise people counter for bus

FOB Reference Price: Get Latest Price
≥2 Pieces
US $530
≥100 Pieces
US $430
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Operation System:
Linux
Video Input:
4 channels
Video Output:
Not available
GPS:
Built-in GPS module
Network:
4G Lte
Counting Camera:
700TVL
Camera Type:
Binocular Camera
Operating Temperature:
-30~75℃
Dimension:
L188mm*H60mm*W145mm
Weight:
1.2kg

Quick Details

Place of Origin:
Fujian, China
Brand Name:
LENZ
Model Number:
LZD30
Operation System:
Linux
Video Input:
4 channels
Video Output:
Not available
GPS:
Built-in GPS module
Network:
4G Lte
Counting Camera:
700TVL
Camera Type:
Binocular Camera
Operating Temperature:
-30~75℃
Dimension:
L188mm*H60mm*W145mm
Weight:
1.2kg
Product Description

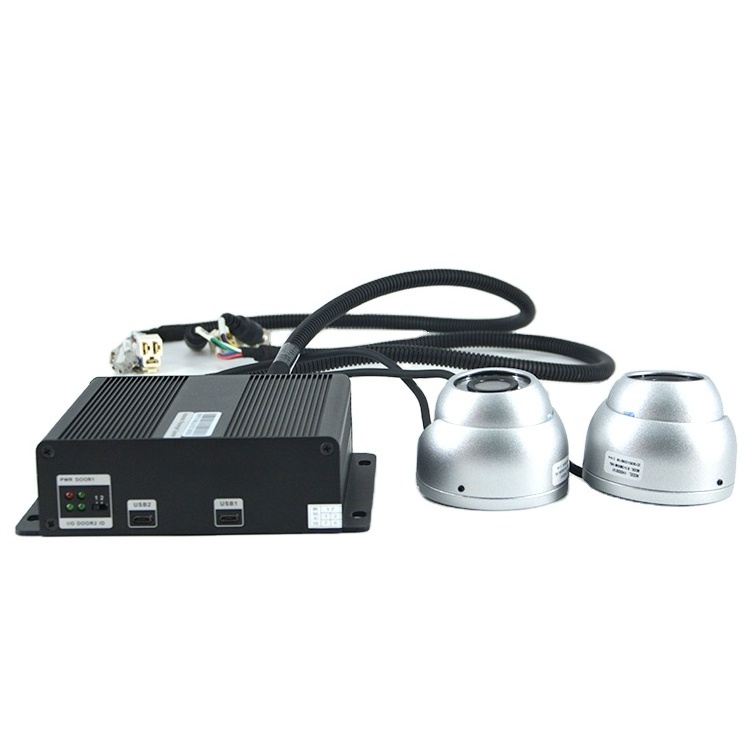

Bus Automatic Passenger Counting System
The Bus Automatic Passenger Counting System is constructed by LZ8713HEB V2.0 automatic passenger counter and binocular passenger
counting cameras.
LZ8713HEB V2.0 automatic passenger counter supports max 2 doors, with 2 passenger counting cameras input. It has built-in GPS and
3G/4G module for data communication with the control centre.
To enable the high accuracy of counting, the binocular passenger counting camera will be used. The accuracy could be more than
93%, which will not infected by the light, passenger’s moving direction, luggage, etc.

System Architecture

LZ8713HEB V2.0 automatic passenger counter will counte the passenegrs and upload the data to central management system wirelessly.

Central Management System for Passenger Counting Reports

The system will statistic the passenger flow from different aspects:
* by bus stop
* by bus
* by route
* by operating company
And the operator could create the operation report by day, week or month, to review the trends of passengers by details, and optimize the route and schedule planning accordingly.
3 or 4 Doors Solution
If your vehicle is 3 or 4 doors, LZE500V2.0 Mobile DVR will be a best solution for you, because it supports max 12 channels of video input.
Besides, due to LZ8713W doesn't support to record the video. In case you want to record the video from the passenger counting camera, LZE500V2.0 would be your best choice.
It is a high performance recording solution to the transport operating company.
Technical Specification
Item
Technical Specification
System
Operating System
Linux
CPU
Hi3520D, ARM Cortex A9 @Max. 660MHz
Power Supply
Power In
DC 9V ~ 36V，Typical 12V/24V
Power Out
DC 5V/3.5A
Power Consumption
<15W
Communication
WAN
3G, 4G LTE
Wi-Fi
802.11b/g/n, 2.4G Wi-Fi
GPS
Embedded with GPS for vehicle location tracking
Video
Video Input
5 channels, 720P/D1/CIF
Video Output
1 channel
Interface
RS232
2 channels RS232
RS485
1 channel RS485
CAN Bus
1 channel CAN bus
Digital I/O
9 channels for door signals
RJ45
1 channel RJ45 Ethernet port
Storage
Not Provided
It doesn't support to record video from couting camera
Working Environment
Working Temperature
-20°C to 65°C
Storage Temperature
-30°C to 75°C
Humidity
95% RH
Others
Dimension
L188mm*H60mm*W145mm
Net Weight
1.20 kg
Certificate
CCC, CE, RoHS
Binocular Passenger Counting Camera
Items
Specification
Items
Specification
Image Sensor
1/3CMOS
Gain
Automatic Gain
Recording System
PAL, NTSC
SNR
＞48db
Horizonal Resolution
700TVLines
Power Supply
DC 5-24V
Image Output
Synchronous output
Power Consumption
≤1W
Camera Distance
5cm/12cm
Dimension
L165×W59.65×H65mM
Lens
2.8mm
Weight
≤0.6kg
White Balance
Automatic
Working Temperature
-20～+70℃
Electronic Shutter
1/50-1/80000s1/60- 1/80000s
Relative Humidity
10%～90%, non-condensing
Frame Rate
W25fps
Heat Dissipation
Physical Cooling
Video Output
Composite video output
Case Study
Smart Bus Solution
The Advanced Public Transport Management System (APTMS) by Lenz supports transport authorities in the local public transport sector with technological, environmentally-friendly and economic expertise. It offers the dispatchers a constant overview of all operational processes. Any errors or disturbances are quickly detected and eliminated and personnel and vehicle resources are deployed effectively.
Smart School Bus Solution
The MDVR equipped in the School Bus will update the working status and video surveillance of the School Bus to control centre, deliver the card validation information to Parents’ mobile app in real time.
The Smart School Bus System helps school оwnеrs kеерing track of the School Bus Fleet activities for tackling safety of School
Children to and from their School.
Logistic Transportation Solution
In order to improve the goods delivery efficiency, the logistic transportation operators install the Mobile DVR in trucks, to
track the travelling status of vehicles. If the vehicle is over speed driving, or deviate from the route, the system will alert to the dispatcher.
The Driver Monitoring System will monitor the poor driving behavior, to decrease the accident rate during the goods
transportation.
Smart Sanitation Truck Solution
The Smart Sanitation Truck Monitoring System receives the travelling data from MDVR, to record the status of garbage trucks: when it starts to work, whether it deviated from the region and whether it is over speed driving. It delivers a high efficient dispatching of garbage trucks through the two way communication system supplied by the solution.
Company Introduction
Established in 2006
Listed in public stock in 2014
AI powered company, closely cooperation with high schools for technology innovation
4,000㎡state of the art manufacturing centre
4,000㎡ office building in national high technology software park
270 staffs from China and overseas talents
40 pre-sale and after sale service engineers, provide off-site and on-site English technical supporting
R&D Centre
R&D Talents
90+ professionals R&D engineers
90+Intellectual properties, including industrial design patents and software copyrights.
CMMI Level 3 Software Programming Maturity
R&D Investment
More than 15% of sales revenues invested in research and development every year;
Millions of USD investment to R&D devices for in-vehicle environment simulation and test
Support EMC testing, ISO 7637 testing, temperature testing, vibration and life testing, etc.
Production Centre
Quality Controlled Production
4,000㎡ production centre
100% fully tested before delivery the goods
Anti-static production environment
IATF16949:2016 Quality Management System
ISO9001:2015 Quality Management System
CE, RoHS, CCC Complied
Our Customer
Lenz has successfully implemented the projects in more than 100 cities in both domestic and overseas countries;
More than 600,000 vehicles have been installed our devices and management system;
More than 300 customers approve our quality and service.
