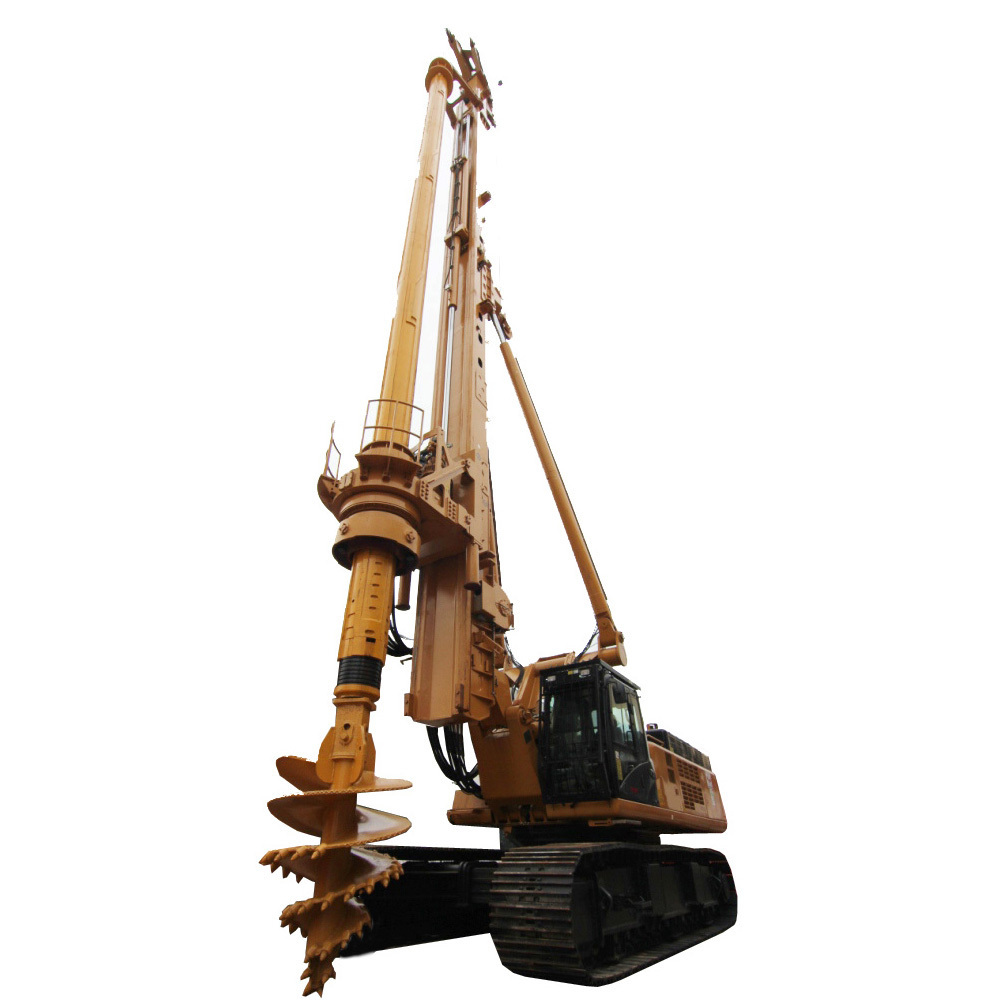

FAE FAR400 Machine Drill Rig Machine Ultrasonic Monitor Hole Helical Concrete Polymer Mud For Bore Pile Chinese factory foundation
FAE FAR400 Machine Drill Rig Machine Ultrasonic Monitor Hole Helical Concrete Polymer Mud For Bore Pile Chinese factory foundation
FAE FAR400 Machine Drill Rig Machine Ultrasonic Monitor Hole Helical Concrete Polymer Mud For Bore Pile Chinese factory foundation
FAE FAR400 Machine Drill Rig Machine Ultrasonic Monitor Hole Helical Concrete Polymer Mud For Bore Pile Chinese factory foundation
FAE FAR400 Machine Drill Rig Machine Ultrasonic Monitor Hole Helical Concrete Polymer Mud For Bore Pile Chinese factory foundation
FAE FAR400 Machine Drill Rig Machine Ultrasonic Monitor Hole Helical Concrete Polymer Mud For Bore Pile Chinese factory foundation
FAE FAR400 Machine Drill Rig Machine Ultrasonic Monitor Hole Helical Concrete Polymer Mud For Bore Pile Chinese factory foundation
FAE FAR400 Machine Drill Rig Machine Ultrasonic Monitor Hole Helical Concrete Polymer Mud For Bore Pile Chinese factory foundation

FAE FAR400 Machine Drill Rig Machine Ultrasonic Monitor Hole Helical Concrete Polymer Mud For Bore Pile Chinese factory foundation

FOB Reference Price: Get Latest Price
≥1 Sets
US $700000
≥2 Sets
US $600000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

product name:
Hydraulic Drilling Rig
modle:
FAR400
Diameter of drill hole:
600-2800mm
Rotary torque:
400 kN.m
Rotary speed:
6-32rpm
Engine Model:
QSX15
Engine Power:
373kW
Main Winch Rope Dia:
40mm
Weight:
120T

Quick Details

Weight (KG):
120000
Place of Origin:
Hunan, China
Brand Name:
FAE
product name:
Hydraulic Drilling Rig
modle:
FAR400
Diameter of drill hole:
600-2800mm
Rotary torque:
400 kN.m
Rotary speed:
6-32rpm
Engine Model:
QSX15
Engine Power:
373kW
Main Winch Rope Dia:
40mm
Weight:
120T

KELLY DRILLING Drilling Torque max. 400kN.m
Diameter max. 2800mm
Depth max. 94m
KELLY BAR Friction kelly bars ¢530-5×20m
¢508-5×20m
Mechanical inter-locking kelly bars ¢530-4×20m
¢508-4×20m
ROTARY HEAD Max spin off speed(options) None
Max drilling speed 6-32rpm
MAST Mast raking forward
Mast side forward ±5°
Mast raking backforward 15°
UNDERCARRIAGE Crawlers Length 6700mm
Crawlers Width 3900-5200mm
DIESEL ENGINE Model QSX15
Rated power 373kw
HYDRAULIC PUMPS Main pumps 35Mpa
Auxiliary pumps 4Mpa
MAIN WINCH 1st Layer nominal line pull 400kn
1st Layer nominal rope speed 64m/min
Rope diameter 36mm
SERVICE WINCH 1st Layer nominal line pull 103kN
1st Layer nominal rope speed 65m/min
Rope diameter 20mm
WINCH CROWD Crowd force(pull down/pull up) 400/400 kN
Pull down stroke 17000 mm
DIMENSION & WEIGHT Transport width 3900mm
Transport height 3664mm
Transport length 20572 mm
Weight(with standard kelly bars) 120 ton
Min working radius 5529mm

Q1:Are you a manufacturer?

A:Yes, we are a professional drilling rig and its parts manufacturer.

Q2:What does your company produce?

A1:The main products of our company include rotary drilling rig, kelly bar, drilling bucket , drilling auger, casing oscillator,

desander and tricone bit, etc.

Q3:How about your delivery time ?

A:Normally the delivery time is about 35days, For some special case, we can make it within 2 weeks, it depends on

different products.

Q4:What methods of payment do you accept?

A:We are accept TT, L/C, D/A , western union.

Q5: Whats the MOQ?

A:The small trial order is acceptable. Like 1pcs, 2pcs...

Q6:Do you offer any deals or discounts?

A:Yes, price is depend on the different quantity, different quantity will give you different price.

Q7:What about your package?

A:We use the standard export packs, wrapped with plastic film+bag+carton+case.

Q8:Do you have any free sample?

A:Yes, We can offer it for you , welcome to contact us for the details .
