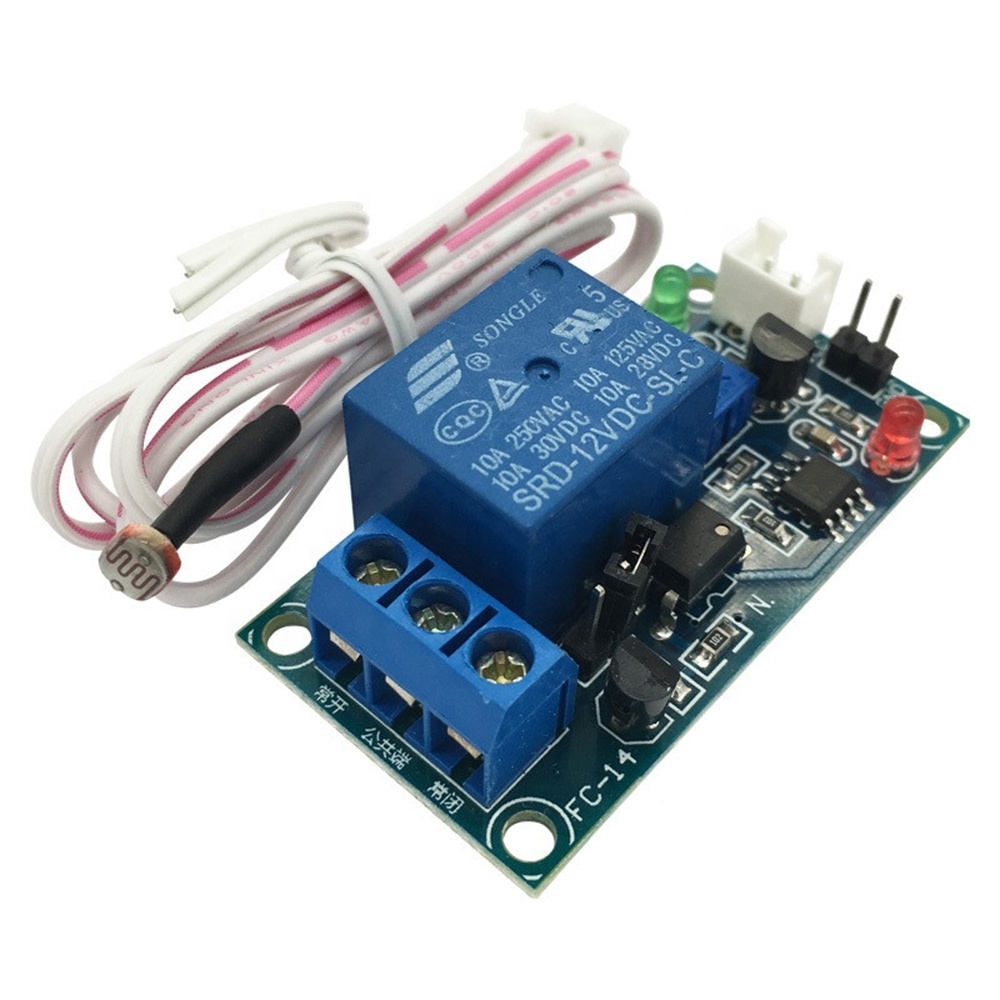

DC 12V Auto On Off Photocell Light Switch Photoswitch Light Sensor Switch

Uses:

Light detection, brightness detection, potentiometer can adjust the valve points of detection brightness , with relays, can do a variety of brightness detection switches.

Modular features:

1. Use photoresistor to induce light intensity, with relay to control load directly.
2. Use potentiometer to adjust sensitivity. By adjusting the potentiometer to set the threshold of start-up relay.
When ambient light is brighter than the setted threshold value, the relay is connected. GND terminal and NC terminal connect. When the ambient light is darker than the setted threshold value , the relay switched off.
3. Working Voltage 5VDC, 12VDC version option (please contact our sales manager)
4. Output Form: Direct Connection with AC 220V 10A or DC30V 10A Load

5. There are four fixed bolt holes for easy installation.

6. PCB Size : 50mm x 26mmx 7mm.
7. Using a Wide Voltage LM393 Comparator

Electrical parameters:

Power supply voltage: 12VDC
version option (please contact our sales manager)
Current: greater than 100mA

Load: 250V 10A AC or 30V 10A DC

Package Includes:
1 x Photosensitive Resistor Sensor Relay Module
