Quick Details
-
Product name:
-
IP QAM modulator
-
Input:
-
Max 512 IP inputs from 6*100/1000M Ethernet
-
Transport Protocol:
-
TS over UDP/RTP, unicast and multicast, IGMP V2/V3
-
Transmission Rate:
-
Max 840Mbps for each GE input
-
Warranty:
-
5 Years
-
MOQ:
-
1
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Dibviewolo
-
Model Number:
-
OTV-3364
-
Product name:
-
IP QAM modulator
-
Input:
-
Max 512 IP inputs from 6*100/1000M Ethernet
-
Transport Protocol:
-
TS over UDP/RTP, unicast and multicast, IGMP V2/V3
-
Transmission Rate:
-
Max 840Mbps for each GE input
-
Warranty:
-
5 Years
-
MOQ:
-
1
Products Description
Overview

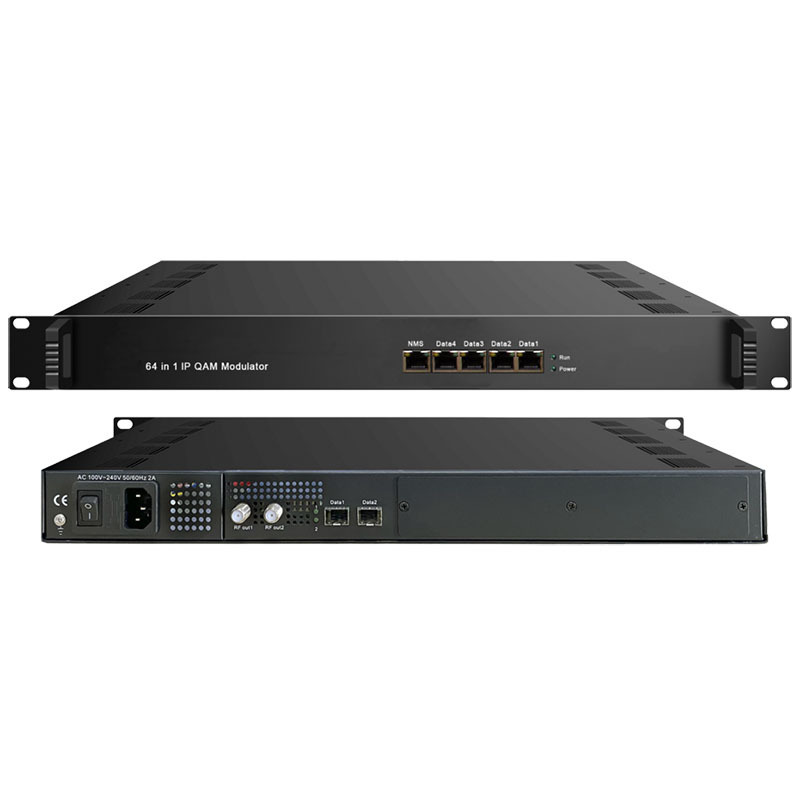

OTV-3364 64 in 1 IP QAM modulator is a Multiplexing-scrambling-modulating all-in-one device developed by DIBVIEW. It has 64 multiplexing channels, 64 scrambling channels and 64 QAM (DVB-C) modulating channels, and supports maximum 512 IP inputs through the 4 data ports and 64 non-adjacent carriers (50MHz~960MHz) output through 2 RF output interfaces. The device is characterized with dual RF output ports which broaden the bandwidth for QAM carriers.
Main Features
6 GE inputs (4*RJ45, 2*SFP)
Supports up to 512 IP inputs over UDP/RTP
Max 840Mbps and 512 IP inputs for each GE input
Supports multiplexing with accurate PCR adjusting, CA PID filtering, PID remapping and PSI/SI editing
Supports up to 256 PID remapping per channel
Support DVB general scrambling system (ETR289)
simulcrypt standards ETSI 101 197 and ETSI 103 197
Support 64 multiplexed or scrambled IP outputs over UDP/RTP/RTSP
64 non-adjacent QAM carriers output from 2 RF interfaces, compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B/C
Supports RS (204,188) encoding
Support Web-based Network management
|
Specifications
|
|
|
|
|
||||
|
Input
|
|
|
|
|
||||
|
Input:Max 512 IP inputs from 6*100/1000M Ethernet
Port (4*RJ45, 2*SFP)
Transport Protocol:TS over UDP/RTP, unicast and multicast,
IGMP V2/V3
Transmission Rate:Max 840Mbps for each GE inpu
|
|
|
|
|
||||
|
Mux
|
|
|
|
|
||||
|
Input Channel:512
Output Channel:64
Max PIDs:256 per channel
Functions: PID remapping(auto/manually optional) PCR accurate
adjusting PSI/SI table automatically generating |
|
|
|
|
||||
|
Scrambling Parameters
|
|
|
|
|
||||
|
Max simulscrypt CA:6
Scramble Standard:ETR289, ETSI 101 197, ETSI 103 197
Connection:Local/remote connection
|
|
|
|
|
||||
|
Modulation Parameters
|
|
|
|
|
||||
|
Modulation Standard:EN300 429/ITU-T J.83A/B/C
Constellation:
J.83A
Constellation :16/32/64/128/256QAM
Bandwidth :8M
J.83B/C
Constellation :64/256QAM
Bandwidth :6M
QAM Channel: 64 non-adjacent carriers 384Mbps bandwidth for each RF interface
Symbol Rate:5.0~7.0Msps, 1ksps stepping 5057Ksps (J.83B, 64QAM) ; 5361Ksps (J.83B, 256QAM)
Constellation:16, 32, 64 , 128, 256QAM FEC:RS (204,188)
|
|
|
|
|
||||
|
RF Output
|
|
|
|
|
||||
|
Interface:2 F type output ports for 64 carriers, 75Ω
RF Range:50~960MHz, 1kHz stepping
Output Level:-20dBm~+10dBm(87~117dbµV),0.1dB stepping
MER:≥ 40dB
|
|
|
|
|
||||
|
TS output
|
|
|
|
|
||||
|
64 IP output over UDP/RTP/RTSP, unicast/multicast,
4*100/1000M Ethernet Ports (each port for 16 IP outputs)
|
|
|
|
|
||||
|
System
|
|
|
|
|
||||
|
Web-based Network management
|
|
|
|
|
||||
|
General
|
|
|
|
|
||||
|
Demission:420mm×440mm×44.5mm (WxLxH)
Temperature:0~45℃(operation), -20~80℃(storage)
Power Supply:AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
|
|
|
|
|
||||
