Quick Details
-
Width of bed (mm):
-
300 mm
-
Spindle Motor Power(kW):
-
5.5kw
-
Max. Turned Length (mm):
-
200
-
Travel (X Axis)(mm):
-
400 mm
-
Travel (Z Axis)(mm):
-
300 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
2200x1530x1780 mm
-
Brand Name:
-
BETA
-
Model Number:
-
TCK6340
-
Voltage:
-
OEM
-
Weight (KG):
-
2300
-
Marketing Type:
-
Hot Product
-
Name:
-
High accuracy low cost machine Metal cutting CNC system lathe price
-
Machine Type:
-
CNC Lathe
-
Control:
-
GSK CNC control
-
Max.swing over bed:
-
400 mm
-
Max.length of work pieces:
-
200 mm
-
Spindle bore:
-
56 mm
-
Color:
-
Customers' Request
-
Turret:
-
4 station turret
-
Chuck size:
-
8 inch
-
Model:
-
TCK6340
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
200
-
Max. Spindle Speed (r.p.m):
-
3500 r.p.m
-
Width of bed (mm):
-
300 mm
-
Spindle Motor Power(kW):
-
5.5kw
-
Max. Turned Length (mm):
-
200
-
Travel (X Axis)(mm):
-
400 mm
-
Travel (Z Axis)(mm):
-
300 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
2200x1530x1780 mm
-
Brand Name:
-
BETA
-
Model Number:
-
TCK6340
-
Voltage:
-
OEM
-
Weight (KG):
-
2300
-
Marketing Type:
-
Hot Product
-
Name:
-
High accuracy low cost machine Metal cutting CNC system lathe price
-
Machine Type:
-
CNC Lathe
-
Control:
-
GSK CNC control
-
Max.swing over bed:
-
400 mm
-
Max.length of work pieces:
-
200 mm
-
Spindle bore:
-
56 mm
-
Color:
-
Customers' Request
-
Turret:
-
4 station turret
-
Chuck size:
-
8 inch
-
Model:
-
TCK6340
Products Description

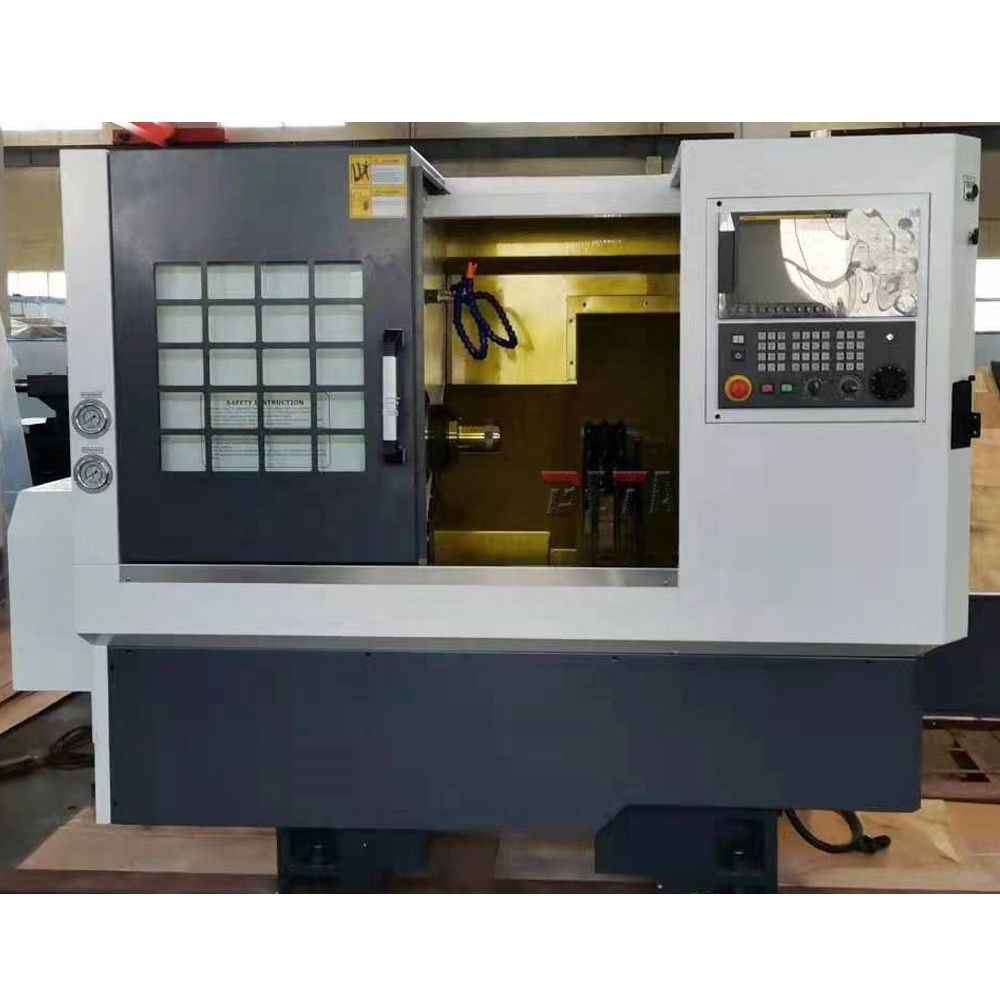

TCK6340 High accuracy low cost machine Metal cutting CNC system lathe price
Product Parameters
|
Model
|
Unit
|
TCK6340
|
|
Swing over bed
|
mm
|
400
|
|
Swing over cross slide
|
mm
|
140
|
|
Max processing length
|
mm
|
200 gang tool,
100 electric turret |
|
X/Z axis travel
|
mm
|
400/300
|
|
Spindle nose
|
|
A2-5
|
|
Spindle bore
|
mm
|
56
|
|
Bar capacity
|
mm
|
45
|
|
Max spindle speed
|
rpm
|
3500
|
|
Chuck size
|
inch
|
8
|
|
Spindle motor
|
kw
|
5.5
|
|
X/Z axis repeatability
|
mm
|
0.005
|
|
X/Z axis feed motor torque
|
N.m
|
6
|
|
X/Z rapid traverse
|
mm/min
|
18/15
|
|
Tool post type
|
|
Gang type tools (optional turret)
|
|
Cutting tool shape size
|
mm
|
20*20
|
|
Guide way type
|
|
45 degree slant bed
|
|
Total power capacity
|
kVA
|
9
|
|
Overall dimension
|
mm
|
2200*1530*1780
|
|
Weight
|
kg
|
2200
|
Details Images
Standard configurations:
GSK980TC3 CNC controller,
main servo motor 5.5kw,
Taiwan linear guide way,
A2-5 spindle unit speed 3500rpm,
6" domestic thru-hole type hydraulic chuck,Gang type tools 4 pcs
automatic lubrication system,
automatic cooling system,
work light ,
tools & tool box
main servo motor 5.5kw,
Taiwan linear guide way,
A2-5 spindle unit speed 3500rpm,
6" domestic thru-hole type hydraulic chuck,Gang type tools 4 pcs
automatic lubrication system,
automatic cooling system,
work light ,
tools & tool box
Optional configurations:
Hydraulic 3-jaw chuck
6 Station servo turret/Power turret
Chip conveyor
Siemens or FANUC CNC controller
6 Station servo turret/Power turret
Chip conveyor
Siemens or FANUC CNC controller
standard
hydraulic
3-jaw chuck
standard 4
station turret
hydraulic
tailstock standard
Taiwan linear guide way
SIEMENS CNC control system
GSK CNC control system
