- Product Details
- {{item.text}}
Quick Details
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Weight (KG):
-
50 KG
-
Core Components:
-
Laser source
-
Wavelength:
-
355nm
-
Working area:
-
110*110mm or as your requirement
-
Min Line Width:
-
<0.01mm
-
Beam Quality M2:
-
<0.8mm
-
Engraving Speed:
-
≤10000mm/s
-
Marking Depth:
-
≤0.3mm
-
Repeat Precision:
-
±0.001mm
Quick Details
-
Working Accuracy:
-
0.01, less than 0.01mm
-
Graphic Format Supported:
-
AI, PLT, DXF, DXP
-
Laser Type:
-
UV
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Weight (KG):
-
50 KG
-
Core Components:
-
Laser source
-
Wavelength:
-
355nm
-
Working area:
-
110*110mm or as your requirement
-
Min Line Width:
-
<0.01mm
-
Beam Quality M2:
-
<0.8mm
-
Engraving Speed:
-
≤10000mm/s
-
Marking Depth:
-
≤0.3mm
-
Repeat Precision:
-
±0.001mm
Product Description

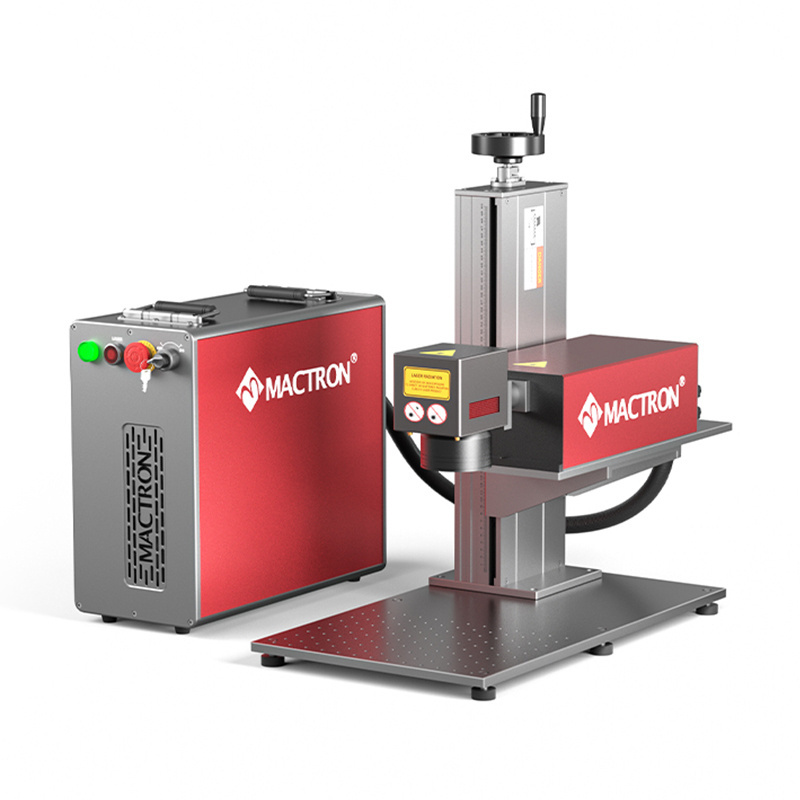

MT-UV series of laser marking machines
is specially designed for complex and cold laser marking of nonreactive materials at other
wavelengths, it adopts 355nm ultraviolet laser source and has a small spot diameter, which can provide unparalleled
micro marking quality and accuracy on various materials. UV laser marking machine has a small heat-affected area and
can effectively avoid material damage. It is suitable for ultra-fine marking, engraving, and cutting of materials with
a high thermal radiation response.
UV ultraviolet marking laser applies high-contrast markings even on sensitive products. As the vector scanning laser impacts the product's surface photo-chemically and with reduced peripheral heating, the heat effect of laser marking on substrates and materials can be kept to a minimum, which is ideally suited for the high-contrast laser marking of sensitive and delicate materials, such as glass, certain plastics (silicone, white polyamides) or ceramics. UV laser markers are used primarily in the automotive and aerospace sectors (cable marking) and in
other technologies
(catheters, insulin pumps)
|
Laser Type
|
UV
|
|
Laser Power
|
3W/5W
|
|
Wavelength
|
355nm
|
|
Energy (µJ)
|
100-800
|
|
Frequency
|
10-200Khz
|
|
Minimum Line Width
|
≤ 0.002mm
|
|
Marking Speed
|
Up to 10000 mm/s (393,7 in/s)
|
|
Operating Temperature
|
10-40℃
|
|
Software
|
MacMark
|
|
Humidity Level
|
10-85%
|
Product Show
Packaging List
Samples Show
It is suitable for marking on the vast majority of metal and non-metal materials, especially for the high-end market of ultra-fine processing. The UV laser machine marks on the surface of packaging bottles of cosmetics, food and other polymer materials, fine marking effect, clear and permanent marks, superior to ink jet printing and pollution-free; flexible PCB plate marking, scribing; silicon wafer micro hole and blind hole processing; LCD smart glass QR code marking , glassware surface drillig, metal surface coating marking, plastic buttons, electronic components, gifts, communication equipment, building materials, etc. It can be used for working with production line, automatic loading and unloading, automatic feeding and ejection.
