Quick Details
-
Production Capacity:
-
1
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Jinzuan
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
6000*4700*2000mm
-
Weight:
-
10000 kg, 8500kg
-
Marketing Type:
-
New Product 2023
-
Name:
-
JHM-800
-
Max .working dimensions(L*W*H):
-
3000*2000*200mm
-
Max.diameter of table:
-
800mm
-
Table rotating degree:
-
90~360n
-
Table dimensions(L*W*H):
-
3000*2000mm
-
Table tilting degree:
-
0~85n
-
Overall dimensions(L*W*H):
-
6000*4700*2000mm
-
Main motor power:
-
22kw
-
Water consumption:
-
4m3/h
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
22KW
-
Cutting thickness (max):
-
800mm
-
Production Capacity:
-
1
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Jinzuan
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
6000*4700*2000mm
-
Weight:
-
10000 kg, 8500kg
-
Marketing Type:
-
New Product 2023
-
Name:
-
JHM-800
-
Max .working dimensions(L*W*H):
-
3000*2000*200mm
-
Max.diameter of table:
-
800mm
-
Table rotating degree:
-
90~360n
-
Table dimensions(L*W*H):
-
3000*2000mm
-
Table tilting degree:
-
0~85n
-
Overall dimensions(L*W*H):
-
6000*4700*2000mm
-
Main motor power:
-
22kw
-
Water consumption:
-
4m3/h
company introduction
Quanzhou golden Diamond Machinery Co., Ltd.is a company specializing in the research and development, production and sales of stone processing equipment. Our company has many years of experience in manufacturing engraving machines and is committed to providing customers with high-quality, efficient stone engraving solutions.
Our stone engraving machines adopt advanced technology and craftsmanship and have the advantages of high stability, high precision and high efficiency. It can be widely used in stone crafts, stone decoration, tombstone carving, building facade carving and other fields. Whether it's a simple geometric pattern or a complex three-dimensional carving, our stone engraving machines can meet our customers' needs.
PRODUCT SPECIFICATIONS
|
Parameter
|
Unit
|
GDM-450
|
GDM-600
|
GDM-700
|
|
Blade diameter
|
mm
|
300-450
|
350-600
|
350-700
|
|
Max Procesing Size (L*W*H)
|
mm
|
3200*2000*100
|
3200*2000*180
|
3200*2000*230
|
|
Dimension of worktable (L*W)
|
mm
|
3200*2000
|
3200*2000
|
3200*2000
|
|
Worktable tilting degree
|
°
|
0-85°
|
0-85°
|
0-85°
|
|
Worktable rotating degree
|
°
|
90°/360°
|
90°/360°
|
90°/360°
|
|
Main motor
|
kw
|
15
|
18.5
|
18.5
|
|
Water consumption
|
m2/h
|
4
|
4
|
4
|
|
Outline dimension (L*W*H)
|
mm
|
5800*4800*2600
|
5800*4800*2900
|
5800*4800*3100
|
|
Gross weight
|
kg
|
5000
|
5500
|
6000
|
Product Overview
granite cutting machine price 45 degree machines hand held concrete stone cutting machine

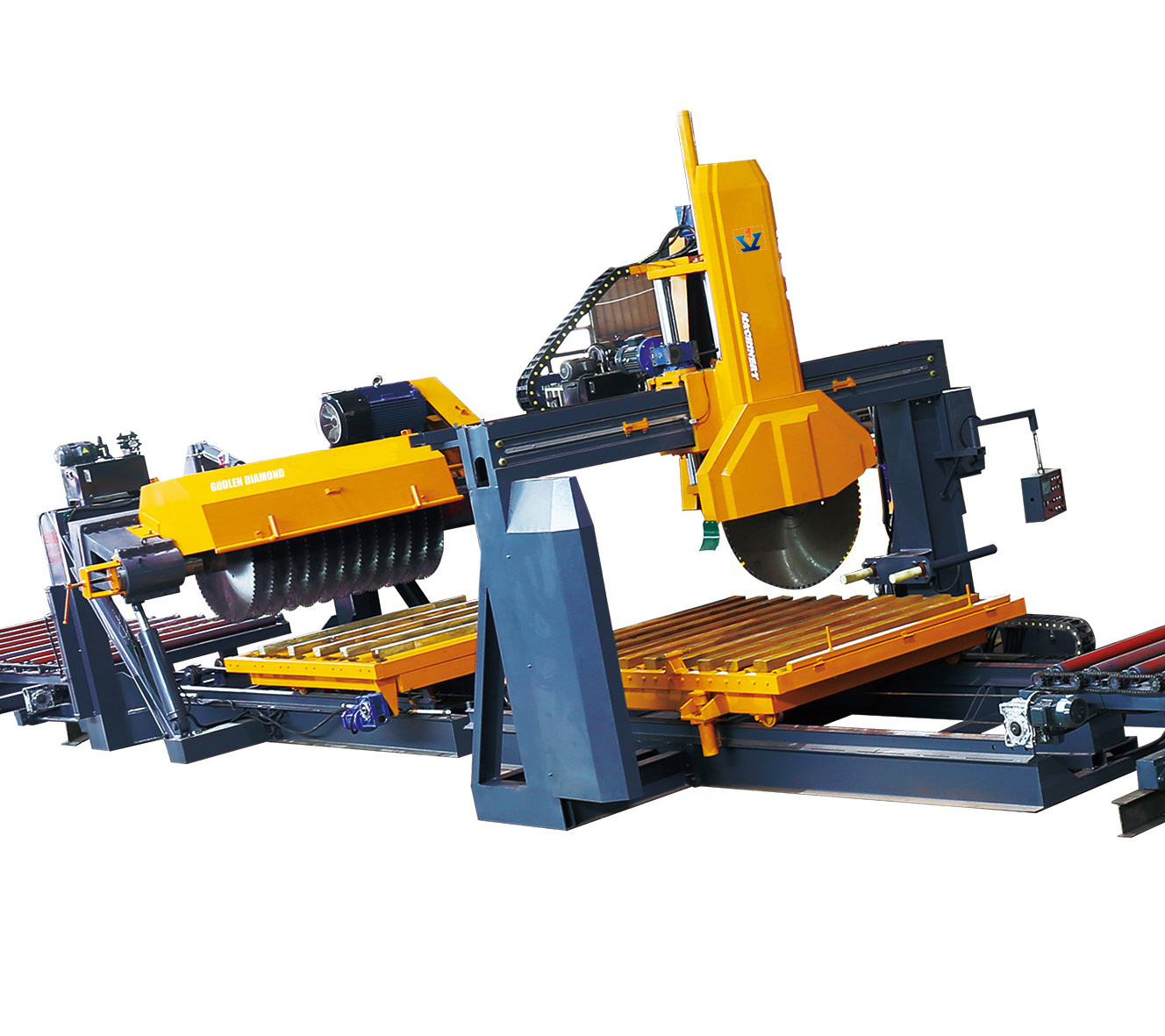

Our infrared bridge saw stone cutting machine bridge laser tile cutter adopting PLC system and Human-machine interface,
togethering with ultra-high precision rotary encoder positioning and infrared device, with Chinese & English double operation language, using inverter to control left-right feeding,adjusting the speed according to stone material, using hydraulic lifting system which equipted through 4 guide post, also this machine provide the unique side beam protection device, main spare parts adopt imported high-quality materials. Thus the whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy-operation, specially high value granite and big size marble.
Product Photo
Product details
Works Display
Our company has a professional R&D team that continuously innovates and improves our products. We can provide customized stone
engraving machines according to customers' special needs to meet the needs of different customers.
