bean sifter a vertical-motor system, with eccentric hammers being installed on top and bottom of the machine,where the vibration motor acts as the vibratory source.The direction of the eccentric hammers may change its rotational mode either in horizontal,vertical and inclined movement onto the sieving screen surface.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
110V220V/380V/415V/460V
-
Dimension(L*W*H):
-
740*740*900mm
-
Weight:
-
150 Kg
-
Motor:
-
Vertical Vibrating Motor
-
Function:
-
Screening\separation\sorting\sieving
-
Material:
-
Stainless Steel 304
-
Layer(s):
-
one layer
-
Customization:
-
Accept
-
Usage:
-
Fine Particles Screening
-
Capacity:
-
300kg/h
-
Cleaning system:
-
Bouncing Ball Cleaning System
-
Feature:
-
Simple Operation
-
Surface Treatment:
-
Mirror Polishing
-
Certification:
-
ISO9001:2008/CE
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dahan
-
Voltage:
-
110V220V/380V/415V/460V
-
Dimension(L*W*H):
-
740*740*900mm
-
Weight:
-
150 Kg
-
Motor:
-
Vertical Vibrating Motor
-
Function:
-
Screening\separation\sorting\sieving
-
Material:
-
Stainless Steel 304
-
Layer(s):
-
one layer
-
Customization:
-
Accept
-
Usage:
-
Fine Particles Screening
-
Capacity:
-
300kg/h
-
Cleaning system:
-
Bouncing Ball Cleaning System
-
Feature:
-
Simple Operation
-
Surface Treatment:
-
Mirror Polishing
-
Certification:
-
ISO9001:2008/CE
Product Description

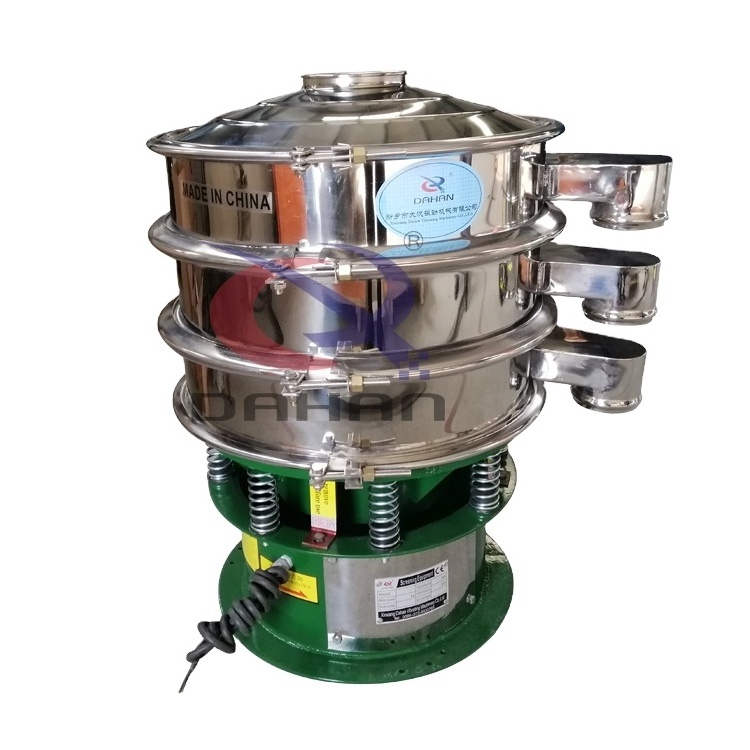

bean sifter
is designed as a high-precision screening machinery. Rotary filter sieve price is composed of vertical motor,and eccentric weight installed at two ends.We can produce horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight.Diameter can be ranged from 400mm to 2000mm, with single or multiple screening decks(1-5 layers).Material can be divided into all carton steel,contact part stainless steel and all stainless steel.
Technical Parameters
|
bean sifter parameter list
|
|
|
|
|
|
|
|
|||||||
|
Model
|
Power(kw)
|
Sieve diameter(mm)
|
Layers
|
Granularity(mm)
|
Voltage(v)
|
RMP(r/min)
|
Capacity(kg/h)
|
|||||||
|
DH-400
|
0.18
|
350
|
1-4
|
<10
|
380
|
1440
|
100
|
|||||||
|
DH-600
|
0.25
|
550
|
1-4
|
<10
|
380
|
1440
|
500
|
|||||||
|
DH-800
|
0.55
|
750
|
1-4
|
<10
|
380
|
1440
|
800
|
|||||||
|
DH-1000
|
0.75
|
920
|
1-4
|
<10
|
380
|
1440
|
1400
|
|||||||
|
DH-1200
|
1.1
|
1120
|
1-4
|
<10
|
380
|
1440
|
2100
|
|||||||
|
DH-1500
|
1.5
|
1420
|
1-4
|
<10
|
380
|
1440
|
2600
|
|||||||
|
DH-1800
|
2.2
|
1720
|
1-4
|
<10
|
380
|
1440
|
3300
|
|||||||
Product Application
Widely used in chemical,pharmaceutical,food and spices,tea,feed,plastics,fertilizer,sugar,salt and other renewable resources and other industry.
Working Principle
Detailed Image
Certifications
Our Service
* 12 months warranty of our sieve products.
* 24 hours website online services.
* Your inquiry will be replied in 12 hours.
* All your information is well protected.
* My cell phone is at your service at 24 hour a day.
* 12 months quality warranty
* Free easily damaged vibration screen accessories.
