Quick Details
-
Brand Name:
-
Sumspring
-
Model Number:
-
CCY-02
-
Use:
-
Syringe Plastic Blood Bags Puncture Test
-
Test Range:
-
0-300N (customized)
-
Test Accuracy:
-
±0.5%
-
Test Speed:
-
1-500mm/min(Stepless)
-
Test item:
-
Puncture force test Penetration Force test
-
Power supply:
-
AC 220 V 50Hz
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Sumspring
-
Model Number:
-
CCY-02
-
Use:
-
Syringe Plastic Blood Bags Puncture Test
-
Test Range:
-
0-300N (customized)
-
Test Accuracy:
-
±0.5%
-
Test Speed:
-
1-500mm/min(Stepless)
-
Test item:
-
Puncture force test Penetration Force test
-
Power supply:
-
AC 220 V 50Hz
CCY-02 Syringe Medical Needle Sharpness Puncture Force Penetration Force Test Machine is used to determine the puncture force of various injection needles, medical needles, and needle tubes, and is suitable for stapler manufacturers, medical device inspection institutes, universities, research institutions, etc. It adopts high precision sensors, test results accurate and stable, the infinite speed can meet the requirements of different test speed. Instrument support a variety of test model, with different test fixture can meet different experimental requirements.Medical Packaging tear tensile tester is a multi-purpose high-performance integrated pharmaceutical packaging performance testing instruments widely used in ampoules, butyl rubber stopper, aluminum-plastic combination cover, polypropylene composite cover, thin film, composite membrane, medicinal aluminum foil, PVC plate, syringes, needles and other drug packaging materials, breaking strength, puncture force, sliding and opening force, tensile strength, thermal bonding strength and peel strength and compressive test. It is highly welcomed by testing institutions, drug packaging materials production enterprises, pharmaceutical companies, medical device manufacturing enterprise.

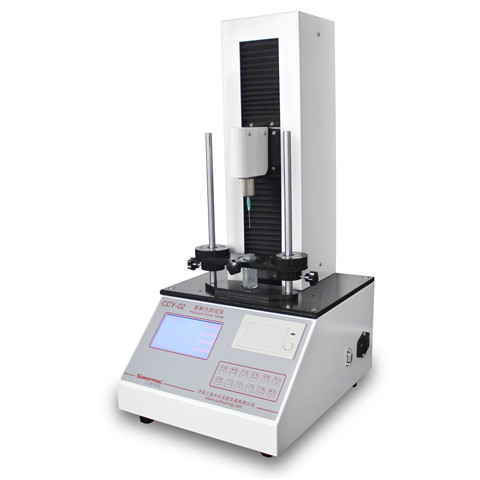

CCY-02 Syringe Medical Needle Sharpness Puncture Force Penetration Force Test Machine
STANDARDS: ISO 7864, ISO8536-2
YBB00332002 , YBB00052005 , YBB00042005 , YBB00332004 , YBB00242004 , YBB00402003 , GB2637
Ampoules, plastic combination cover, polypropylene composition cover, aluminum cover, PVC rigid sheet, syringes, pharmaceutical foil, prefilled
• Large LCD Touchscreen testing process, PVC operation panel
• Professional computer software operating system to facilitate the users to connect a computer data storage, analysis and printing
• Pharmaceutical Packaging tear tensile tester with imported sensor system, test accuracy in the industry ahead, effectively guarantee the accuracy of test results
•Syringe Plastic Blood Bags Puncture Test Machine with a peel strength, opening force, puncture force of four separate experiments project, to meet the different needs of packaging materials testing
• Screw adjustable speed drive system to ensure the accuracy of the test speed and displacement
• Equipped with micro-printer, fast printing results
• Conducted a variety of test projects through the exchange of different fixtures.
• Limit protection, automatic back intelligent configuration to ensure the safe operation of the user
CCY-02 Syringe Medical Needle Sharpness Puncture Force Penetration Force Test Machine
The sample was clamped in the pharmaceutical packaging tear tensile tester between two chucks, relative motion between the grips, by puncturing or the special zipper opening force test, accurate test this force through the instrument during the measuring system value change and displacement, and thus obtain the corresponding force value data.
|
T ECHNICAL SPECIFICATIONS |
|
|
Test Range |
0-300N |
|
Test Accuracy |
± 0.5% |
|
Test Speed |
1-500mm/min (Stepless) |
|
Speed Accuracy |
± 2% |
|
Dimension |
310m m × 38 0 m m× 800mm(LWH) |
|
Net Weight |
2 9Kg |
|
E NVIRONMENT REQUIREMENT |
|
|
Temperature |
15℃-50℃ |
|
Relative Humidity |
No more than 80%, no dewdrop |
|
Power Supply |
220V 50Hz |
|
C ONFIGURATION |
|
|
Standard : Host, micro-printer, stopper puncture force clamps, ring-pull opening force fixtures, test software, communication cable
|
|
