- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
12 months
-
Brand Name:
-
Jiujiu
-
Model Number:
-
YBS85-3,140-10, 200-19, 250-30, 300-40
-
Place of Origin:
-
Fujian, China
-
Outlet Size:
-
Depend on the model
-
Power:
-
Depend on the model
-
motor:
-
Depend on the model
-
Name:
-
SS Ceramic Piston Pump
-
Advantage:
-
Parts contacting slurry are SS
-
OEM:
-
Yes
-
Price Term:
-
FOB, CIF, CFR
-
Pay Term:
-
30% T/T as the deposit, 70% before the shipment
-
Keywords:
-
Sludge pump, Ceramic Piston Pump
-
Partner:
-
Filter Press
-
Function:
-
Pumping Slurry with High Pressure
-
Feeding Pressure:
-
0-2.0Mpa
-
Shipment:
-
By sea, By Car
Quick Details
-
Application:
-
Food and Beverage Industry, Mining industry, Wastewater Transport and Flood Control, wastewater treatment, Water Treatment Solutions
-
Pressure:
-
High Pressure
-
Voltage:
-
380V, Customized
-
Warranty:
-
12 months
-
Brand Name:
-
Jiujiu
-
Model Number:
-
YBS85-3,140-10, 200-19, 250-30, 300-40
-
Place of Origin:
-
Fujian, China
-
Outlet Size:
-
Depend on the model
-
Power:
-
Depend on the model
-
motor:
-
Depend on the model
-
Name:
-
SS Ceramic Piston Pump
-
Advantage:
-
Parts contacting slurry are SS
-
OEM:
-
Yes
-
Price Term:
-
FOB, CIF, CFR
-
Pay Term:
-
30% T/T as the deposit, 70% before the shipment
-
Keywords:
-
Sludge pump, Ceramic Piston Pump
-
Partner:
-
Filter Press
-
Function:
-
Pumping Slurry with High Pressure
-
Feeding Pressure:
-
0-2.0Mpa
-
Shipment:
-
By sea, By Car

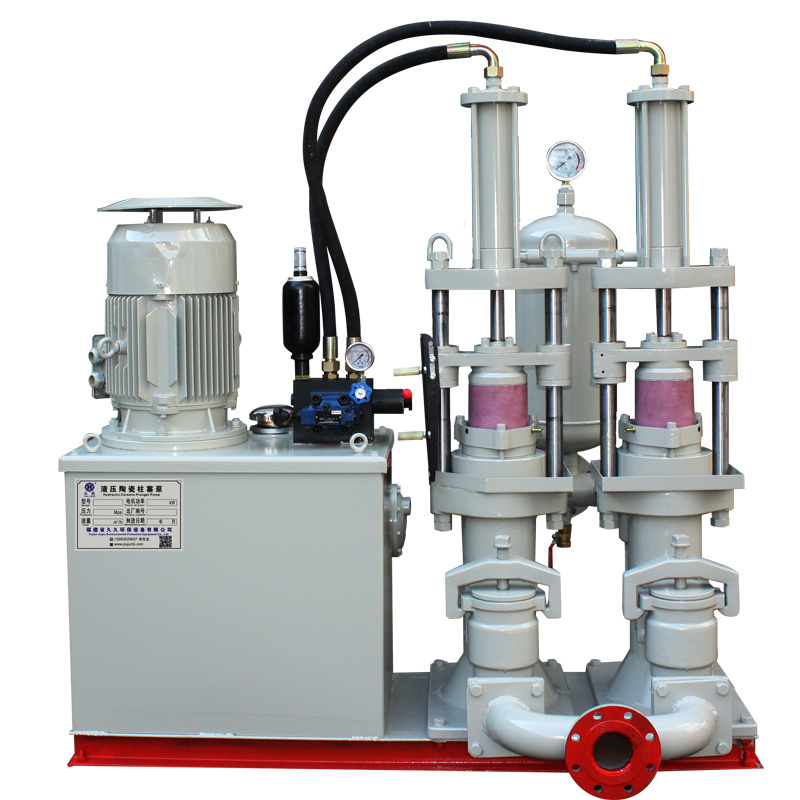

Ceramic Piston Pump Introduction:
YB series ceramic piston pump is hydraulic driven, Double-cylinder double-acting volume pump (vacuum pump). This pump is driven by the motor, through the gear coupling to start up gear pump (referred to the oil pump), the oil pump sucks low pressure oil from the tank and then discharge high pressure oil, through the valve, the high pressure oil is alternating into the two hydraulic cylinders, driving hydraulic cylinder pistons, then the pistons drive two ceramic pistons (ceramic plunger) to reciprocate alternately, the slurry will be sucked and discharged through the pump inlet and outlet.
Ceramic Piston Pump Details:
Factory Show:
Ceramic Piston Pump Function:
1. Matching with spraying silos for powder (Including ceramic, chemical and all the industries using spray gun) ;
2. Pumping the slurry to filter presses (including washed kaolin, wastewater treatment, food and all the other solid liquid separation industries) ;
3. Long transporting distance (200-1500m) or one pump aside several pools for slurry transport.
Stainless Steel Ceramic Piston Pump Parameters:
Advantages:
1. We independently research and develop the oil valve block, one-way valve is outside the oil tank, which is for easy maintenance;
2. The iron water pressing ring is tripod structure, which will have good cooling water storage and longer service life.
3. The drip tray can collect cooling water for repeated recycling and save water resources.
4. Installing rain cover makes outdoor use safer and more convenient
5. The parts contacting the slurry are all SS304, preventing second slurry pollution.
Exhibition Show
Ceramic Piston Pump Pacakge:
Ceramic Piston Pump Shipment:
