Quick Details
-
Pressure:
-
less than 2.5Mpa
-
Accuracy:
-
1.0%F.S
-
Output signal:
-
4~20mA
-
Connection:
-
flange
-
Power supply:
-
220VAC
-
Installation:
-
Horizontal Installation
-
Application:
-
boat;oil tank...
-
Measuring Range:
-
0-6m
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Material:
-
stainless steel 304 material
-
Temperature:
-
less than 150℃
-
Pressure:
-
less than 2.5Mpa
-
Accuracy:
-
1.0%F.S
-
Output signal:
-
4~20mA
-
Connection:
-
flange
-
Power supply:
-
220VAC
-
Installation:
-
Horizontal Installation
-
Application:
-
boat;oil tank...
-
Measuring Range:
-
0-6m

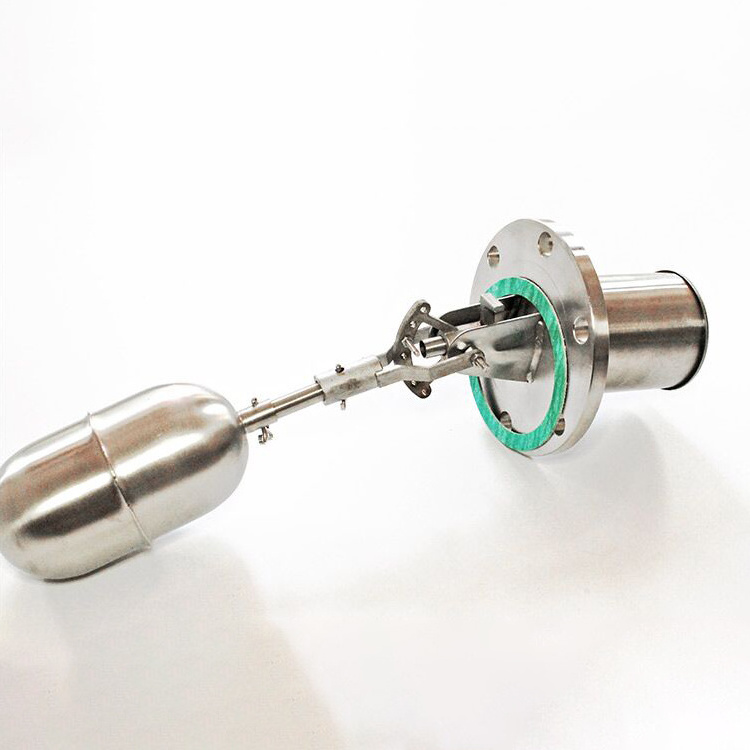

UQK level controller float switch/boiler water level control
A.[Features of level switch ]
-
L ong life span , stable and reliable operation, easy installation, almost no maintenance;
- Independent of mediums’ physical and chemical status;
- Appliable for all kinds of bad medium environment with density ≥0.5g/cm³;
- Available for interface detection of mediums with two different densities;
- Wide application range. Pressure 0~PN160 (max. up to PN320), temperature -40~+120 ° c.
B.[Parameters]
| Parameters---Float Ball Level Switch | |||
| Type | UQK-01 | UQK-02 | UQK-03 |
| Control region | 8mm | 25-550 mm | 8-1000mm |
| agent gravity | ≥0.8g/cm | ≥0.8g/cm | ≥0.8g/cm |
| Adjustment | non adjustment | adjustment | non adjustment |
| temprature | -40~+80°C | -40~+80°C | -40~+80°C |
| environment temperature | -20~+80°C | -20~+80°C | -20~+80°C |
| working pressure | ≤1.0MPa | ≤1.0MPa | ≤1.0MPa |
| precision | ±20mm | ±20mm | ±20mm |
| contactor capacity | 220/380V AC 1A | 220/380V AC 1A | 220/380V AC 1A |
| agent viscoity | ≤0.02Pa.s | ≤0.02Pa.s | ≤0.02Pa.s |
| top and bottom blind zone | 100mm | 100mm | 100mm |
| Material | stainless steel mateiral | stainless steel mateiral | stainless steel mateiral |
| connection | flange connection | flange connection | flange connection |
| Installation | side mounted | side mounted | top mounted |
