Quick Details
-
Brand Name:
-
SEGA
-
Standard or Nonstandard:
-
Standard
Quick Details
-
Port Size:
-
Flange
-
Place of Origin:
-
Anhui, China
-
Model Number:
-
SG-064-3
-
Brand Name:
-
SEGA
-
Standard or Nonstandard:
-
Standard
Chizhou sega Valve Manufacturing Co.,LTD . is a manufacturing and trader,the company specializing in valve design,manufacturing, selling and serving are one of the most trusted valves factory in China. Our company is located near Jiuhuashan Airport about 40km and close by to Nanjing,Hangzhou,Shanghai's airport and high speed rail station about 200km. The traffic is very convient for your trip.
All of the products according to BS,DIN,ANSI,AStable D&E,GB,JIS etc.,we can according your need to make cast iron,ductile iron,cast steel,stainless steel,brass,bronze,plastic,etc.we have many years export experience to all around the world.Up to now,our business field has been extended to Europe,America,Middle East,Africa,South east Asia etc.
Why Choose SEGV?
a,we are factory,we can offer competitive price and fast delivery.
b,Numerous in variety:we can produce ball valve ,gate valve,globe valve,check valve,foot valve and strainer.
c,Low MOQ:1 piece each size
d,we can provide OEM and ODM service
Standards and technical specifications

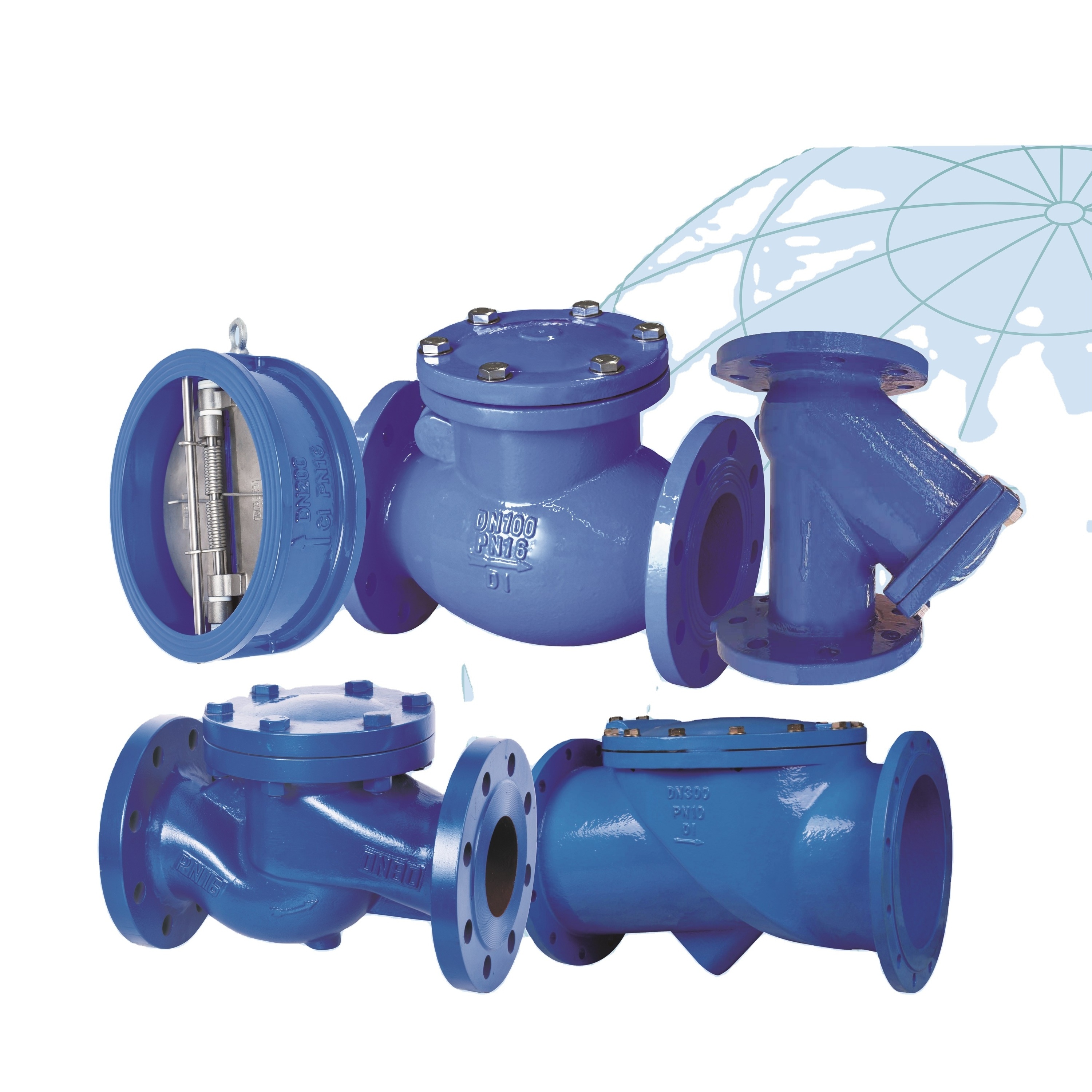

SEGA VALVE MAIN PRODUCTS
SEGA VALVE PACKING AND DELIVERY
SEGA VALVE WORKING PLACES
SEGA VALVE SERVICE
SEGA VALVE CERTIFICATION
Contact us now!
2.Standards and Technical Specifications
Design Standards: ANSI-125/150(Class150);DIN PN10/PN16;JIS-10K/16K,BS5163.
manifold for underfloor heatingswing check valve Cast iron swing check valve
| 1 | Body | Cast iron or Ductile iron |
| 2 | Seatring | Cast bronze or stainless steel |
| 3 | Disc | Cast iron or Ductile iron |
| 4 | Bonnet | Cast iron or Ductile iron |
| 5 | Arm | Cast iron or Ductile iron |
| 6 | Bolt | Carbon steel |
| 7 | Nut | Carbon steel |
| 8 | Drain plug | Stainless steel |
Dimensions
| DN | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 400 |
| 1.5" | 2" | 2.5" | 3" | 4" | 5" | 6" | 8" | 10" | 12" | 16" | |
| L | 165 | 203 | 216 | 241 | 292 | 356 | 410 | 495 | 622 | 698 | 914 |
| H | 100 | 105 | 115 | 140 | 155 | 170 | 203 | 246 | 283 | 330 | 395 |
| D(10K) | 140 | 155 | 175 | 185 | 210 | 250 | 280 | 330 | 400 | 445 | 560 |
| D(16K) | 140 | 155 | 175 | 200 | 225 | 270 | 305 | 350 | 430 | 480 | 605 |
3.The Drawing of Swing Check Valve
4.Producion
