- Product Details
- {{item.text}}
Quick Details
-
Style:
-
3 in 1 compressor, Combined/Integrated compressor
-
Air Tank Capacity:
-
300Liters / 500Liters/600Liters
-
Air Filters:
-
2 pcs / 3 pcs both avaiable
-
Air Dryer:
-
R134a environment protection
-
Color:
-
Red & White, Customized Color, Logo, Company name
-
Cooling Method:
-
Air Cooling
-
Protection Grade:
-
IP54/IP55
-
Insulation Class:
-
IP23/IP54/IP55
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Product Name:
-
ELANG 10HP Combined Screw Air Compressor
-
Air End:
-
GHH/Aerzen/ELANG
-
Style:
-
3 in 1 compressor, Combined/Integrated compressor
-
Air Tank Capacity:
-
300Liters / 500Liters/600Liters
-
Air Filters:
-
2 pcs / 3 pcs both avaiable
-
Air Dryer:
-
R134a environment protection
-
Color:
-
Red & White, Customized Color, Logo, Company name
-
Cooling Method:
-
Air Cooling
-
Protection Grade:
-
IP54/IP55
-
Insulation Class:
-
IP23/IP54/IP55

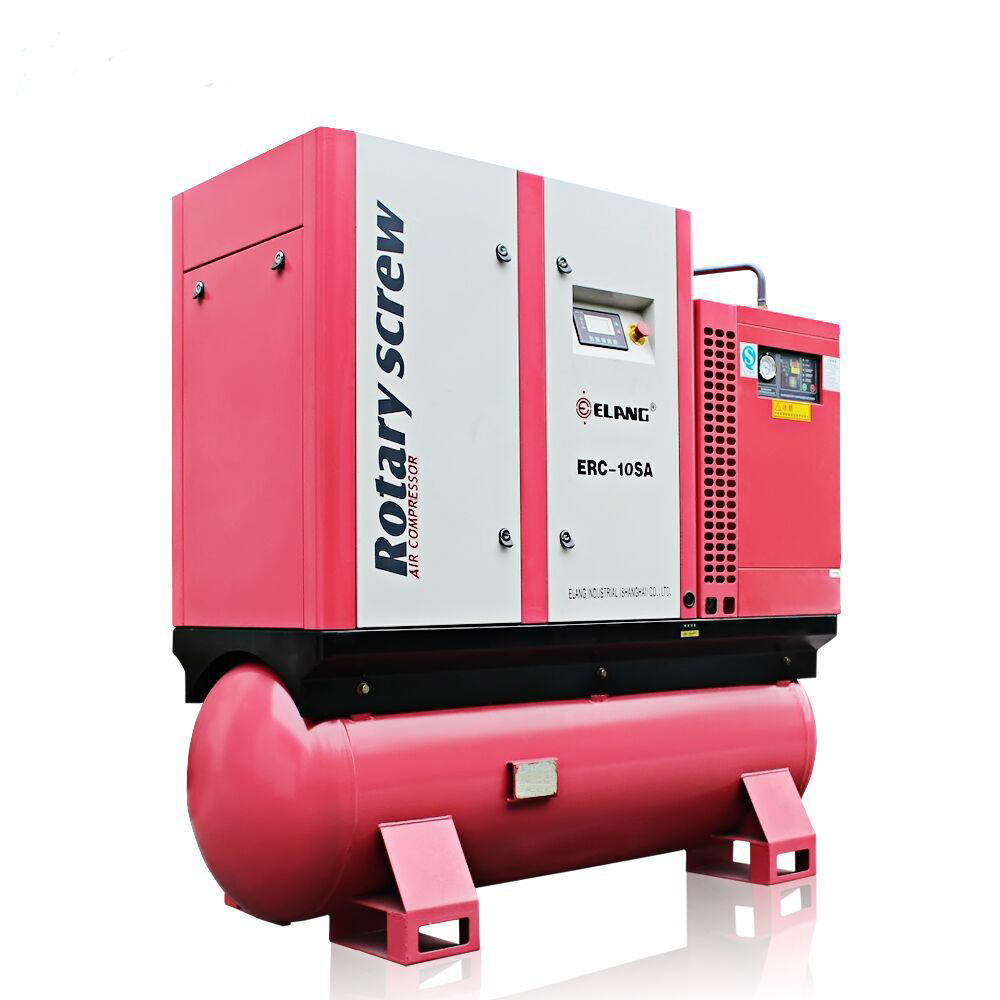

10 HP 7.5kw 25cfm - 40cfm Small Size Combined Screw Air Compressor for Sand Blasting
Working Pressure: 7 - 12.5bar (100 - 181psi)
Air Delivery: 0.7 - 1.1m 3 /min
Motor Power: 7.5kw/10hp
Type of Driving: Belt Driven
Type of Cooling:
Air Cooling/Water Cooling
Dimension: 1650*730*1530mm
Weight: 680kg
Output pipe Diameter: 3/4"
There are more parameters below.
| Item Name | air compressor,air dryer,air tank,fine filter/OEM |
| Air Compressor Series | ERC10SA,ERC15SA,ERC20SA,ERC25SA,ERC30SA |
| Air Delivery | 0.7m3/min-3.8m3/min, 24.7cfm-134.2cfm |
| Minimum Order Quantity (MOQ) | 1 set |
| Material Details |
1.You can choose ABB intelligent control.
2.PLC touch screen,0-100% stepless adjustment air inlet valve. 3.ELANG/Aerzen/GHH air end. 4.High efficiency motor for IP54/IP55 and insulution class F,ABB/simens motor for choose. |
| Certification | ISO9001 CE TUV UL SGS ASME |
| Quality Guarantee Period | 1year |
| Voltage | 110V - 660V 50Hz/60Hz 3ph,Support one machine for two voltages |
| Delivery Time | Shipped in 25 days after payment |
| Our service |
1.No matter when or where,24 hours service for you
2.We have agents in many countries.If you need , we can provide you with technical support. |
Advantages
-
Air End:
No vibration and low noise interpret perfectly the genuine made in Germany. Big rotor, low speed of rotation and direct connection.
-
Motor
:
First-class motors are adopted, with the level of protection being IP54 and insulation level being F.
- Easy to operate: It is of beautiful appearance, stable performance and economy.
- Strong stability: Under long time working, displacement and pressure stable, no crash phenomenon, low failure rate.
| Model | Working Pressure | Air Delivery | Motor Power | Air tank | Air dryer | Air filter | Type of Driving | Type of Cooling | Dimension(mm) |
Weight
(kg) |
Output pipe
Diameter |
|||||
| psig | bar | cfm | m 3 /min | kw/hp | m 3 | Nm 3 /min | Nm 3 /min | L | W | H | ||||||
| ERC-10SA | 100 | 7 | 38.8 | 1.1 | 7.5/10 | 0.3 | 1.2 | 1.2 | Belt Driven |
Air Cooling
/ Water Cooling |
1650 | 730 | 1530 | 680 | 3/4" | |
| 116 | 8 | 35.3 | 1 | |||||||||||||
| 145 | 10 | 30.0 | 0.85 | |||||||||||||
| 181 | 12.5 | 24.7 | 0.7 | |||||||||||||
| ERC-15SA | 100 | 7 | 63.6 | 1.8 | 11/15 | 0.5 | 2.4 | 2.4 | 1955 | 800 | 1800 | 785 | 1" | |||
| 116 | 8 | 58.3 | 1.65 | |||||||||||||
| 145 | 10 | 53.0 | 1.5 | |||||||||||||
| 181 | 12.5 | 45.9 | 1.3 | |||||||||||||
| ERC-20SA | 100 | 7 | 84.7 | 2.4 | 15/20 | 0.5 | 2.6 | 2.6 | 1955 | 800 | 1800 | 810 | 1" | |||
| 116 | 8 | 77.7 | 2.2 | |||||||||||||
| 145 | 10 | 74.2 | 2.1 | |||||||||||||
| 181 | 12.5 | 63.6 | 1.8 | |||||||||||||
| ERC-25SA | 100 | 7 | 109.5 | 3.1 | 18.5/25 | 0.5 | 3.8 | 3.8 | 1900 | 1070 | 2012 | 910 | 1" | |||
| 116 | 8 | 102.4 | 2.9 | |||||||||||||
| 145 | 10 | 95.3 | 2.7 | |||||||||||||
| 181 | 12.5 | 81.2 | 2.3 | |||||||||||||
| ERC-30SA | 100 | 7 | 134.2 | 3.8 | 22/30 | 0.5 | 3.8 | 3.8 | 1960 | 1070 | 2012 | 2012 | 11/2“ | |||
| 116 | 8 | 127.1 | 3.6 | |||||||||||||
| 145 | 10 | 113.0 | 3.2 | |||||||||||||
| 181 | 12.5 | 88.3 | 2.5 | |||||||||||||
|
Motor Efficiency Class:
Ultraefficient/IE3/IE2 as per your required
Motor Protection Class: IP23/IP54/IP55 or as per your required Certification: CE/ISO9001/TUV/UL/SGS/ASME Voltage: 380V/3PH/50HZ/60HZ, 220V/3PH/50HZ/60HZ, 400V/3PH/50HZ/60HZ, 440V/3PH/50HZ/60HZ, 415V/3PH/50HZ/60HZ, 230V/3PH/50HZ/60HZ, dual voltage is also ok |
||||||||||||||||
Q1: Why customer choose us?
A: ELANG INDUSTRIAL (SHANGHAI) CO., LTD., with 18 years old history, we are specialized in Rotary Screw Air Compressor. Germany Standard and 10years exporting experience help us won more than 50 loyal foreign agents. We warmly welcome your small trial order for quality or market test.
Q2: Are you a manufacturer or trading company?
A: We are professional manufacturer with big modern factory in Shanghai,China. Both OEM & ODM service can be accepted.
Q3: What's your delivery time?
A: Generally 3 to 7 days, if urgently order, pls contact our sales in advance.
Q4: How long is your air compressor warranty?
A: One year for the whole machine and two years for screw air end, except consumble spare parts.
Q5: How long could your air compressor be used?
A: Generally, more than 10 years.
Q6: What's payment term?
A:
T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc.
Also we could accept USD, RMB, Euro and other currency.
Q7: How about your customer service?
A: 24 hours on-line service available. 48hours problem sovled promise.
Q8: How about your after-sales service?
A:
1. Provide customers with intallation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3. Worldwide agents and after service avaiable.
