Quick Details
-
Model Number:
-
ER11F
-
Max. Current:
-
1000A
-
Pole:
-
3
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
AC 380V or DC 220V
-
Place of Origin:
-
Zhe
-
Brand Name:
-
Eberry
-
Model Number:
-
ER11F
-
Max. Current:
-
1000A
-
Pole:
-
3
-
Certification:
-
CE
• Application Scope

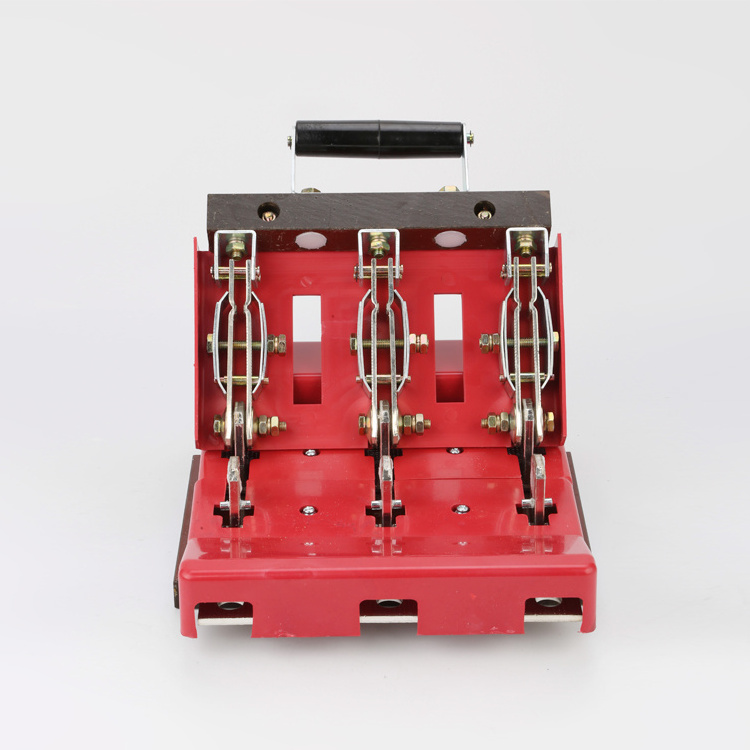

ER11F series single knife switch is applicable to complete distribution equipment of either AC 50HZ and rated voltage 400V or DC 220V and rated current up to 1500A,used for manual occasional connection and AC/DC current disconnection or as electrical isolation.
Its central handle knife switch is mainly used in power plant as electrical isolation without disconnecting electrified circuit.
• Main technical parameters
1. Rated voltage is AC 380V or DC 220V.
2. Rated currents are 100A,200A,400A,600A,1000A,1500A.
|
Rated current(A)
|
|
100
|
200
|
400
|
600
|
1000
|
1500
|
|
|
Operating voltage
|
|
|
|
AC400V
|
DC230V
|
|
|
|
|
Mechanical lifecycle(times)
|
|
3000
|
3000
|
3000
|
2000
|
2000
|
1000
|
|
|
Electrical lifecycle(times)
|
|
1000
|
1000
|
1000
|
500
|
500
|
300
|
|
|
Is short time withstand current(kA)
|
|
6
|
10
|
20
|
25
|
30
|
40
|
|
|
Dynamic current peak(kA)
|
Leverage
|
20
|
30
|
40
|
50
|
60
|
80
|
|
|
|
Handle
|
15
|
20
|
30
|
40
|
50
|
-
|
|
|
Operation force(N)
|
|
<=300
|
<=300
|
<=300
|
<=300
|
<=400
|
<=400
|
|
